P1104

DTC P1104: TCS SIGNAL CIRCUIT MALFUNCTION (TCS)

DTC DETECTING CONDITION:





- Two consecutive trips with fault

TROUBLE SYMPTOM:
- No operation TCS
- TCS warning tight remains illuminated.

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

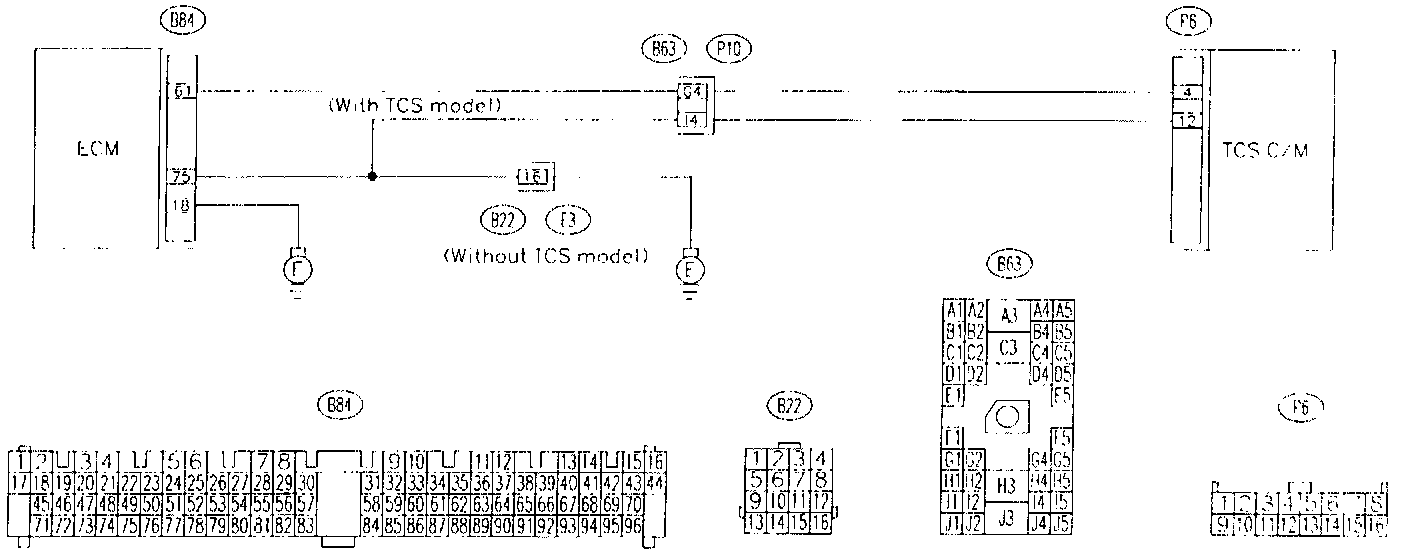

WIRING DIAGRAM:

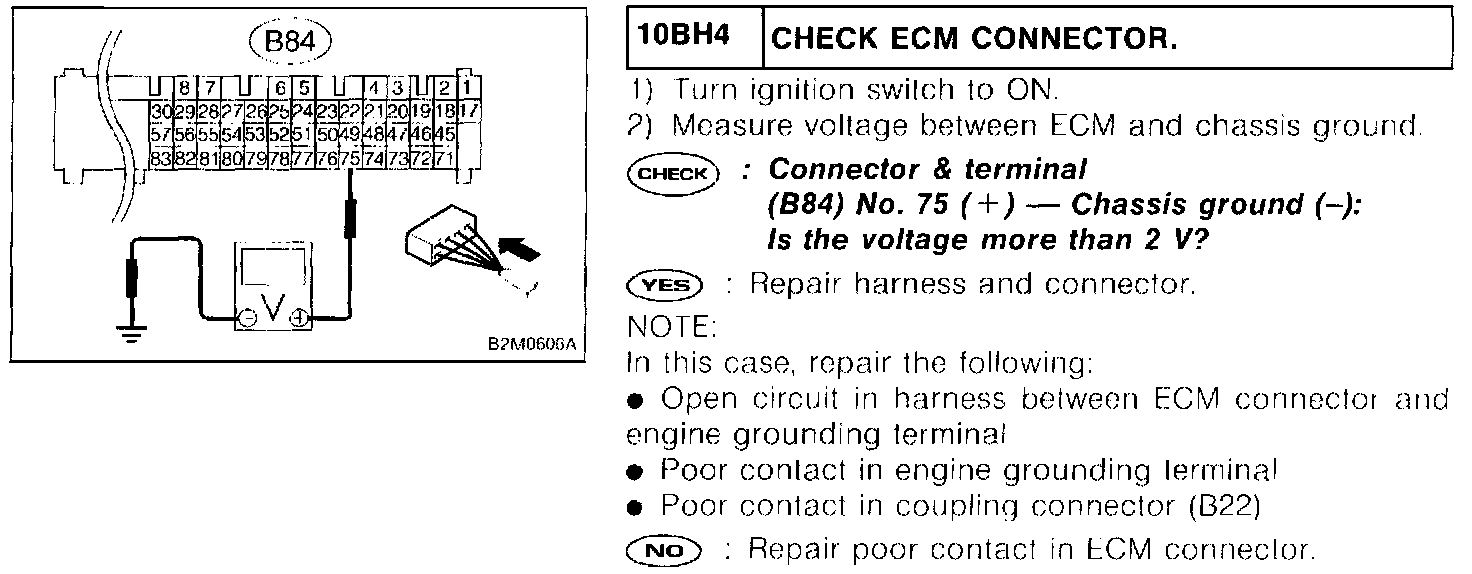

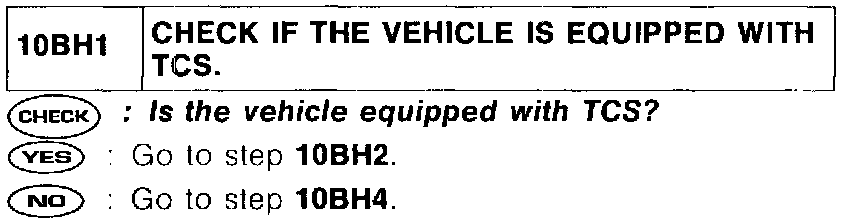

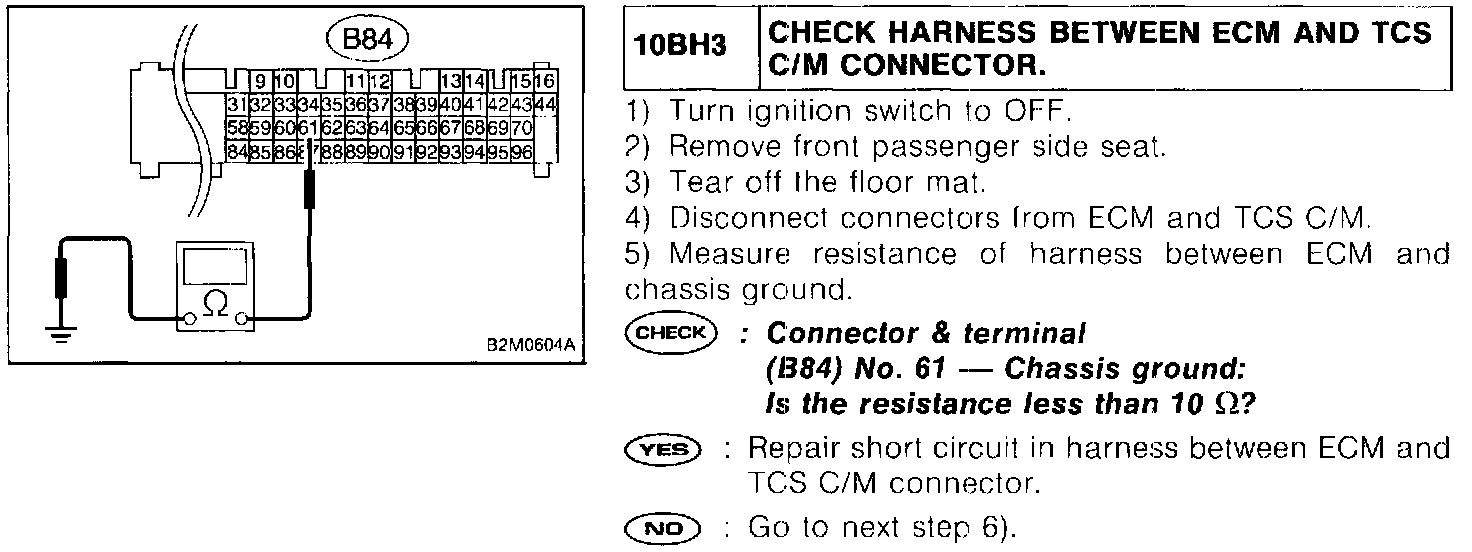

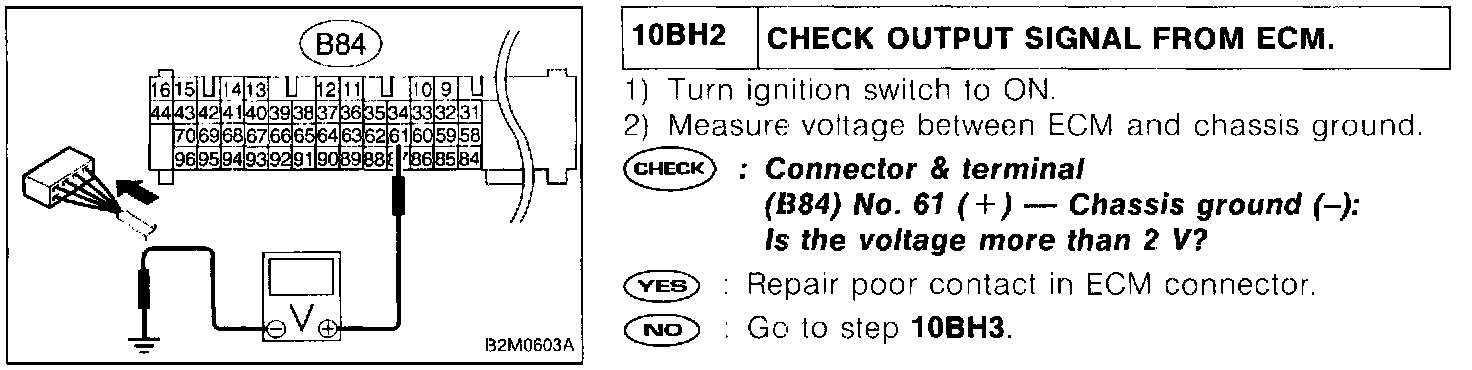

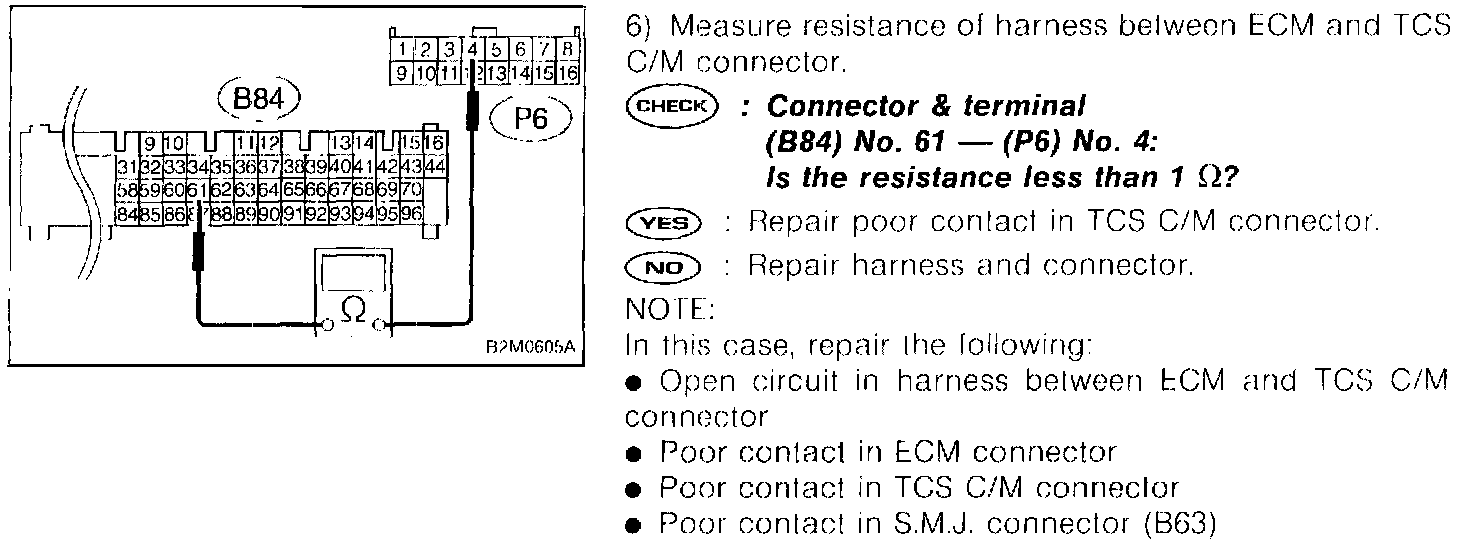

PROCEDURES
