A/T

DTC P1101: NEUTRAL POSITION SWITCH CIRCUIT MALFUNCTION [AT VEHICLES] (N/P -SW)

DTC DETECTING CONDITION:





- Two consecutive trips with fault

TROUBLE SYMPTOM:
- Erroneous idling

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

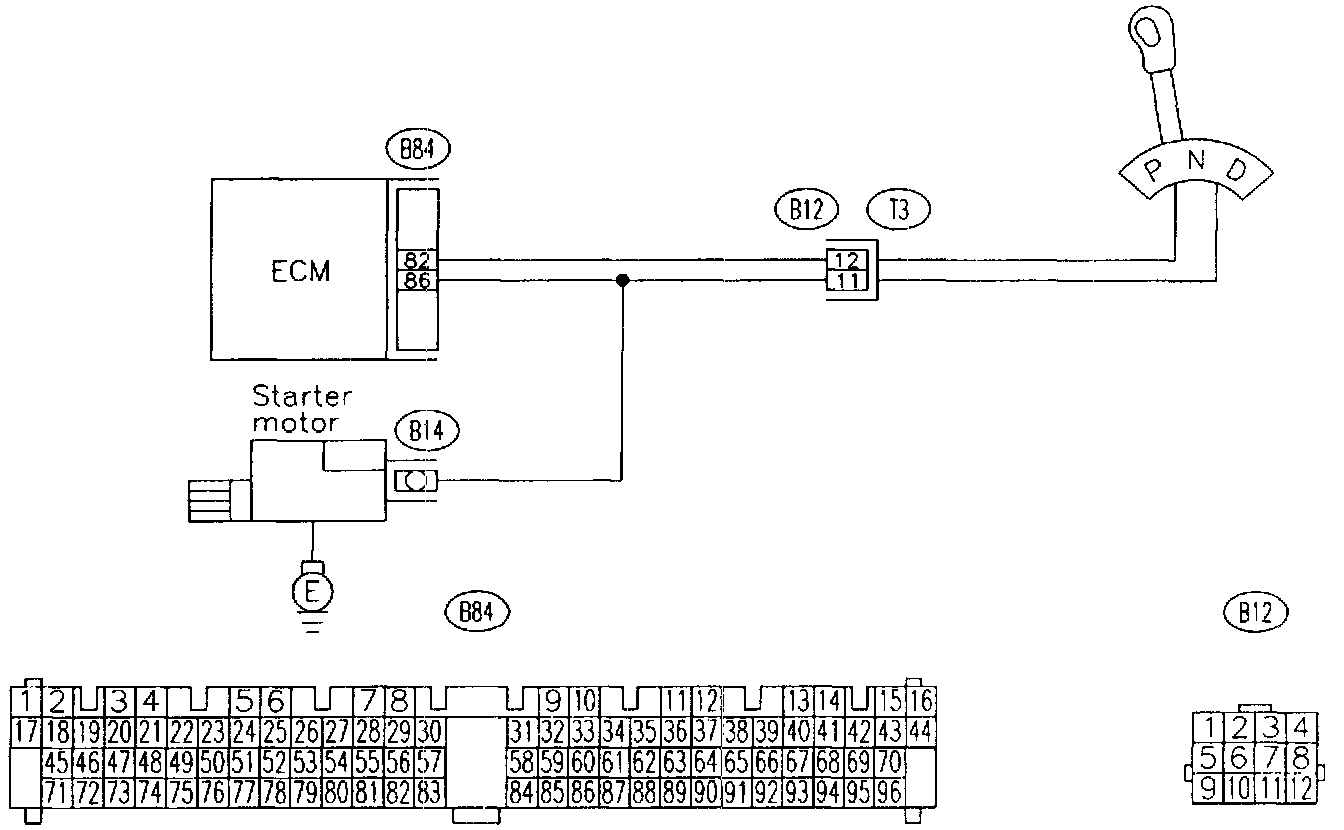

WIRING DIAGRAM

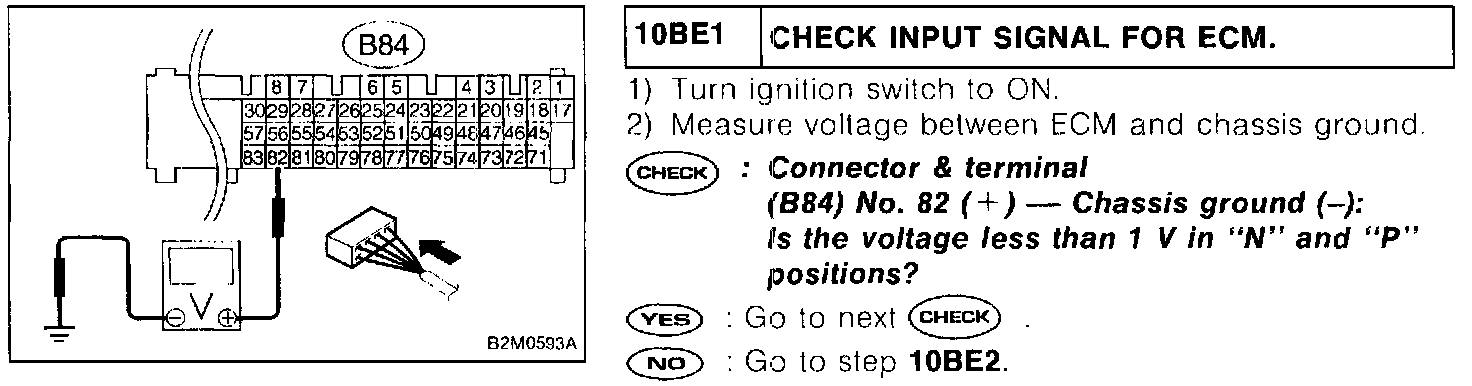

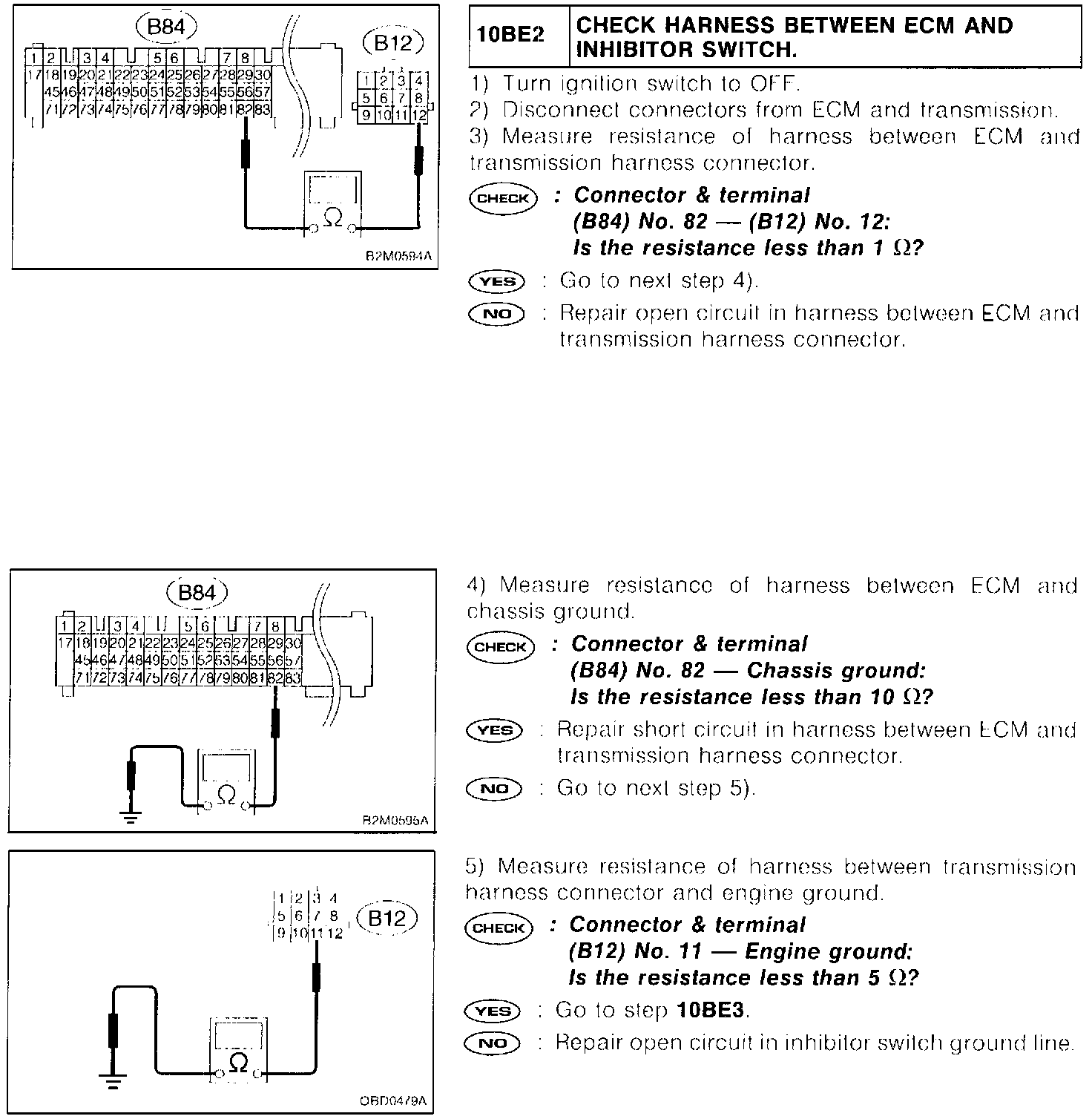

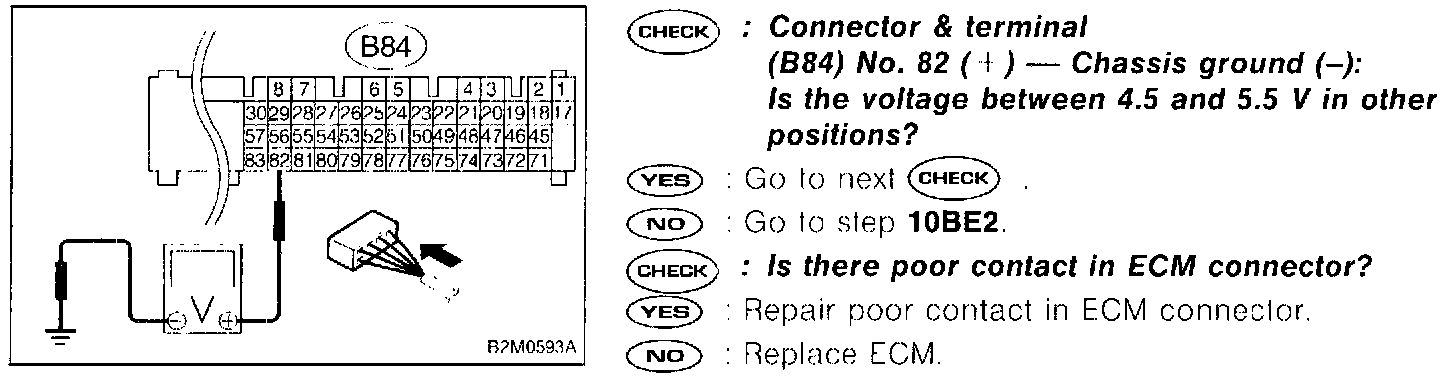

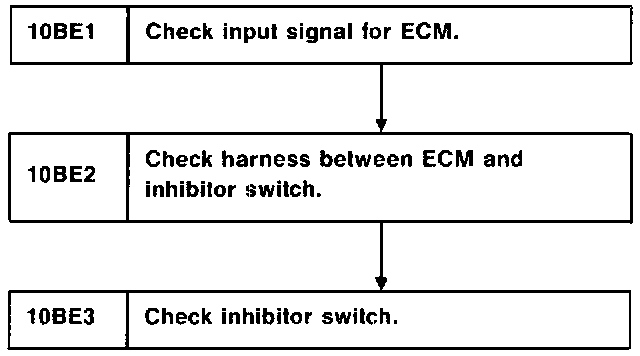

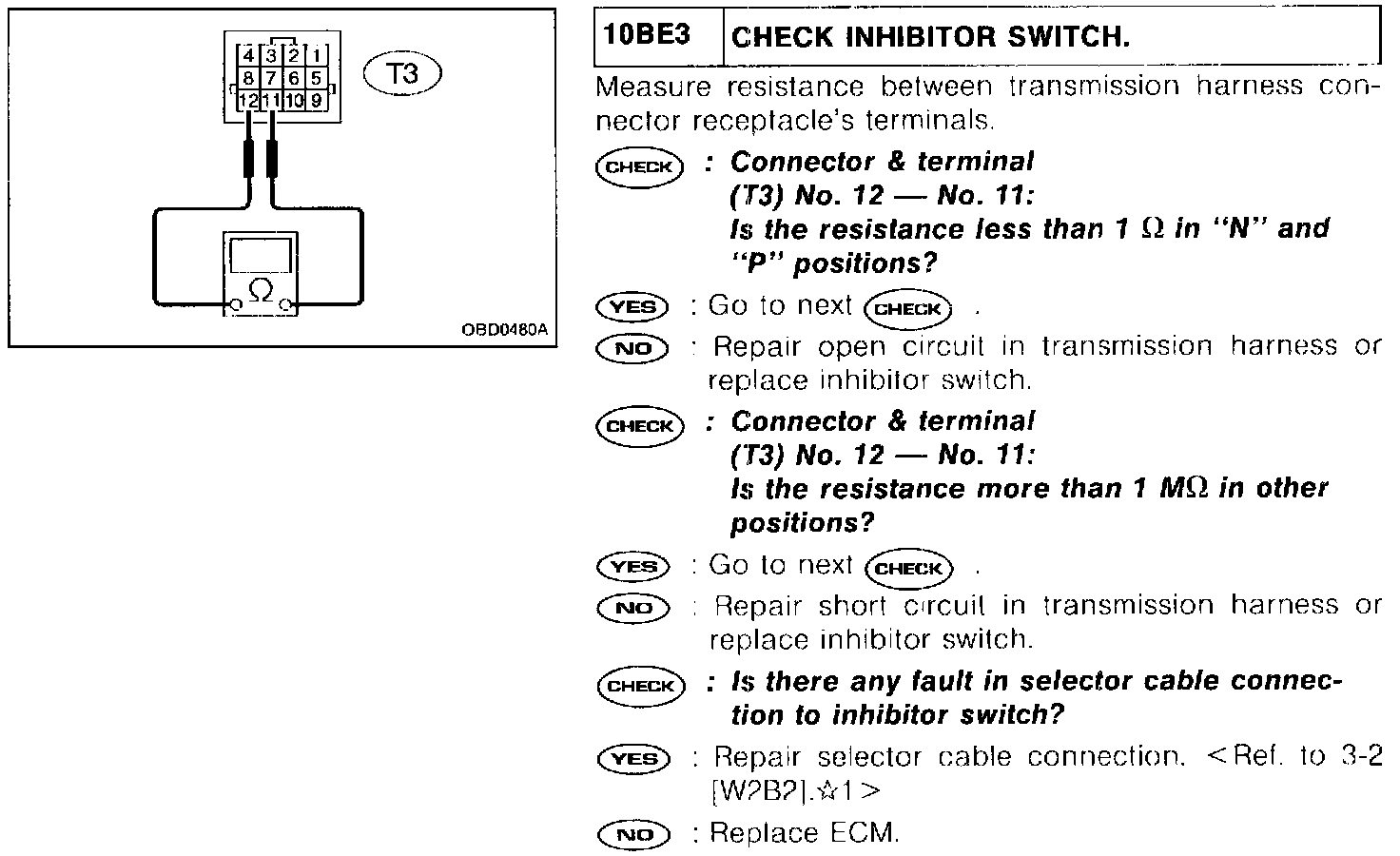

PROCEDURES
