P0743

DTC P0743: TORQUE CONVERTER CLUTCH SYSTEM (DUTY SOLENOID B) ELECTRICAL (ATLU)

DTC DETECTING CONDITION





- Two consecutive trips with fault

TROUBLE SYMPTOM
- No lock-up (after engine warm-tip)

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

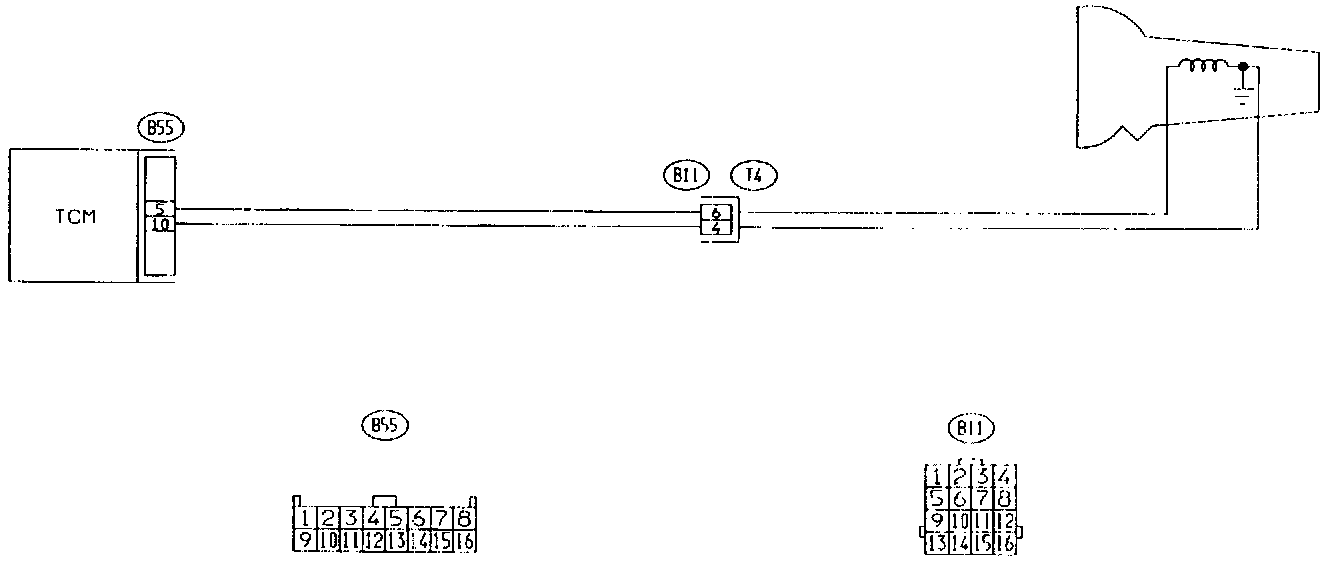

WIRING DIAGRAM

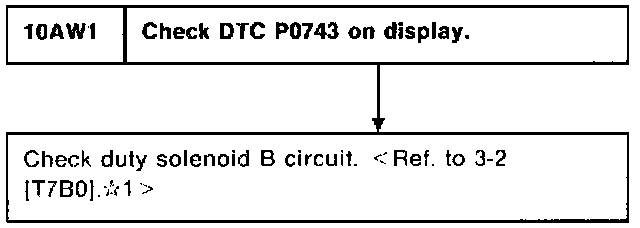

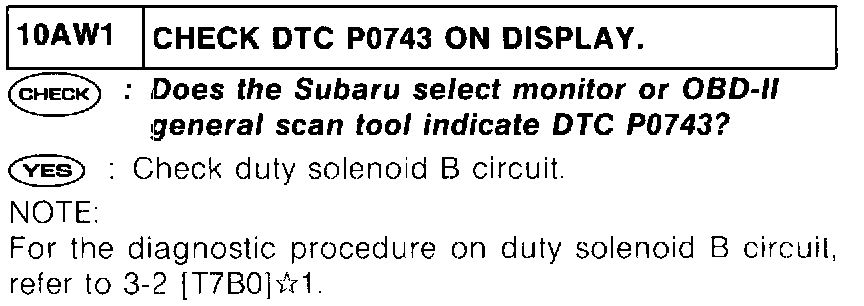

PROCEDURE
