P0740

DTC P0740: TORQUE CONVERTER CLUTCH SYSTEM MALFUNCTION (ATLU - F)

DTC DETECTING CONDITION:





- Two consecutive trips with fault

TROUBLE SYMPTOM:
- No lock-up (after engine warm-up)
- No shift or excessive tight corner "braking"

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

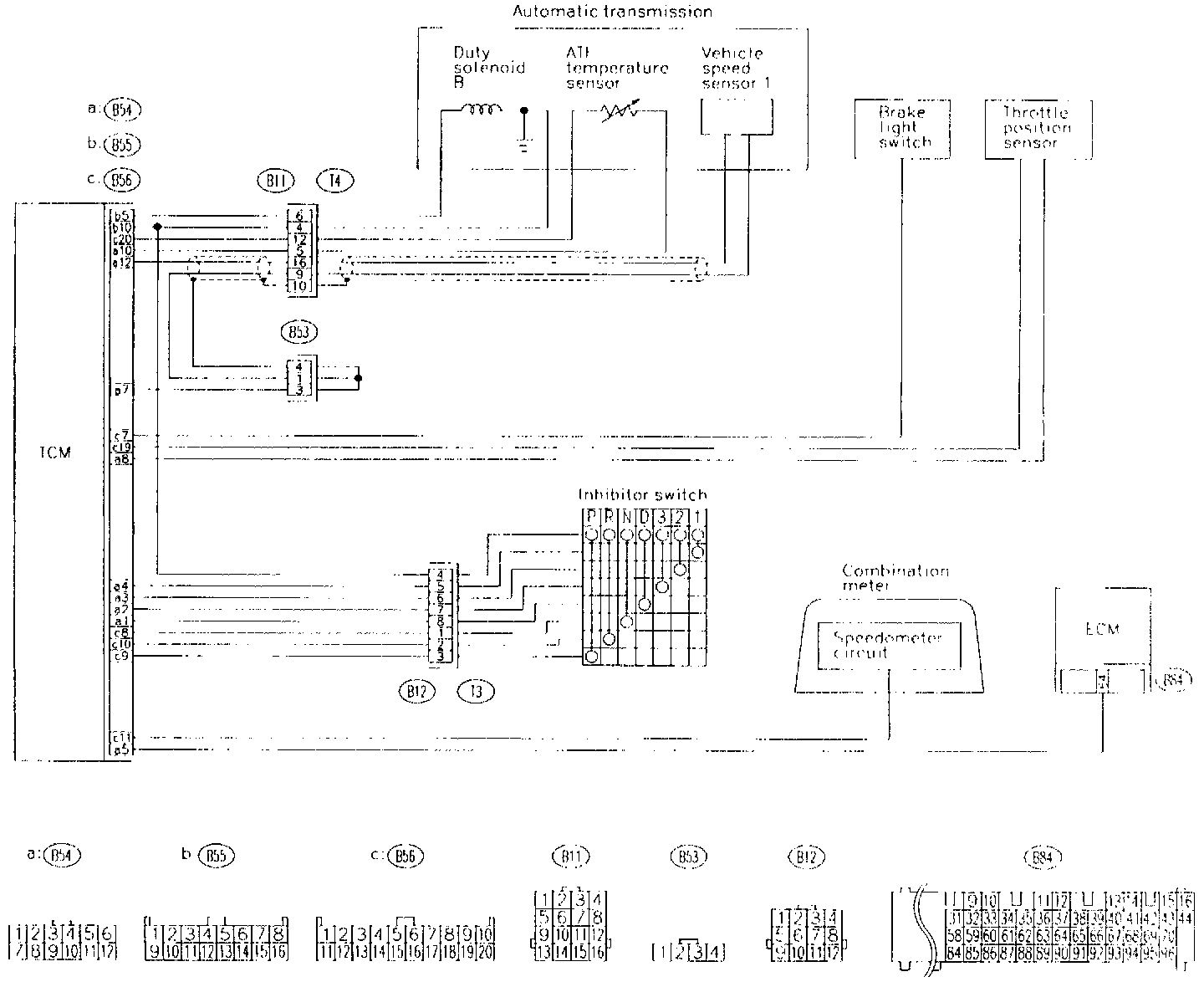

WIRING DIAGRAM

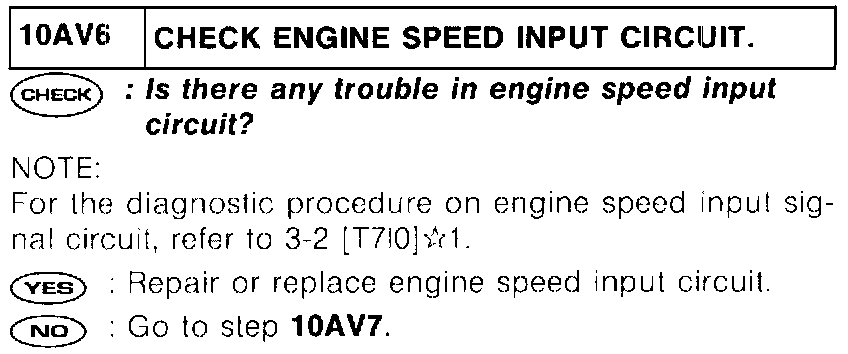

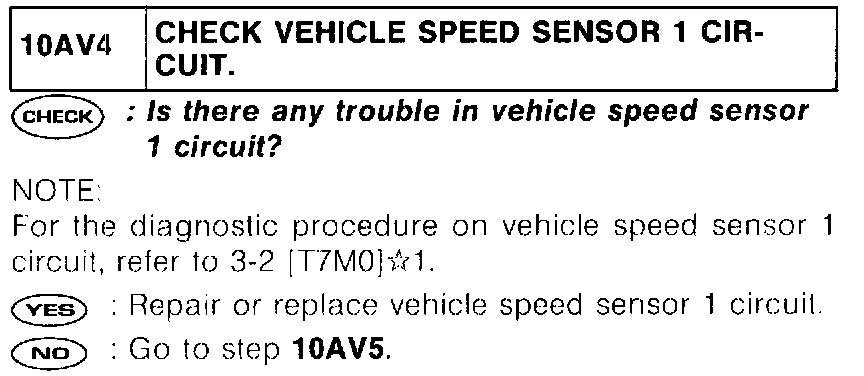

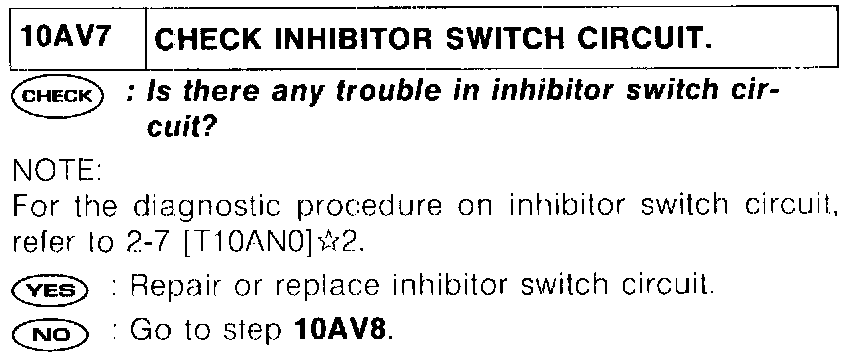

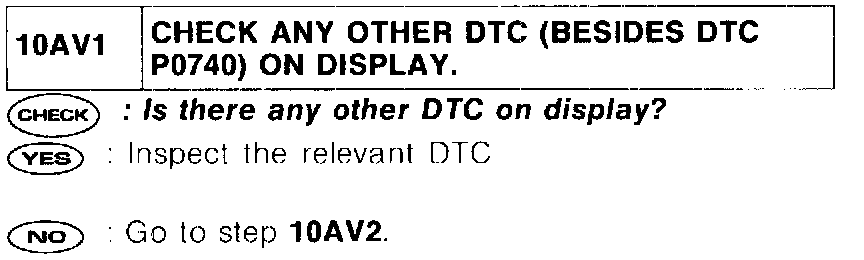

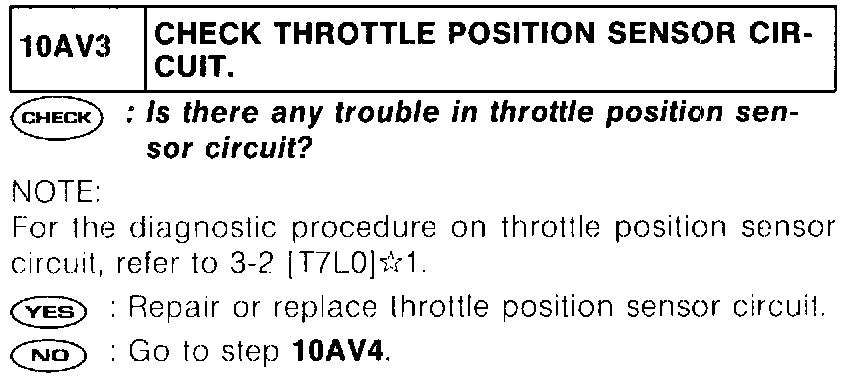

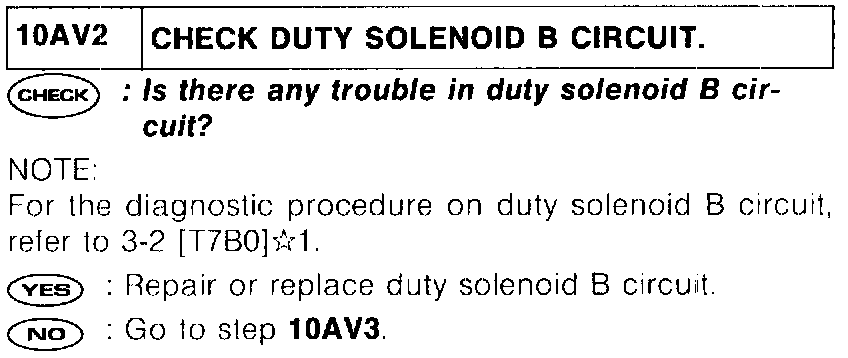

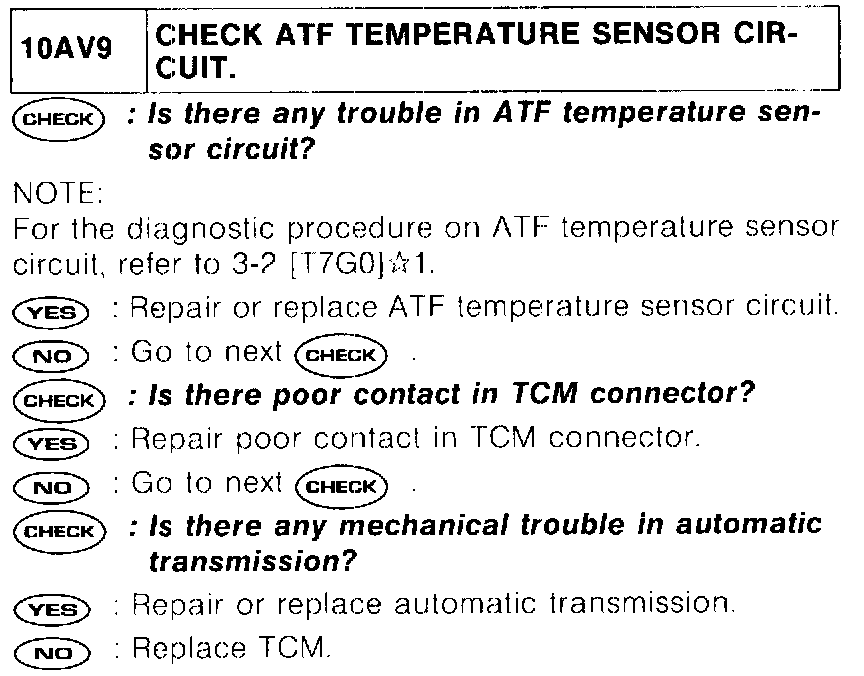

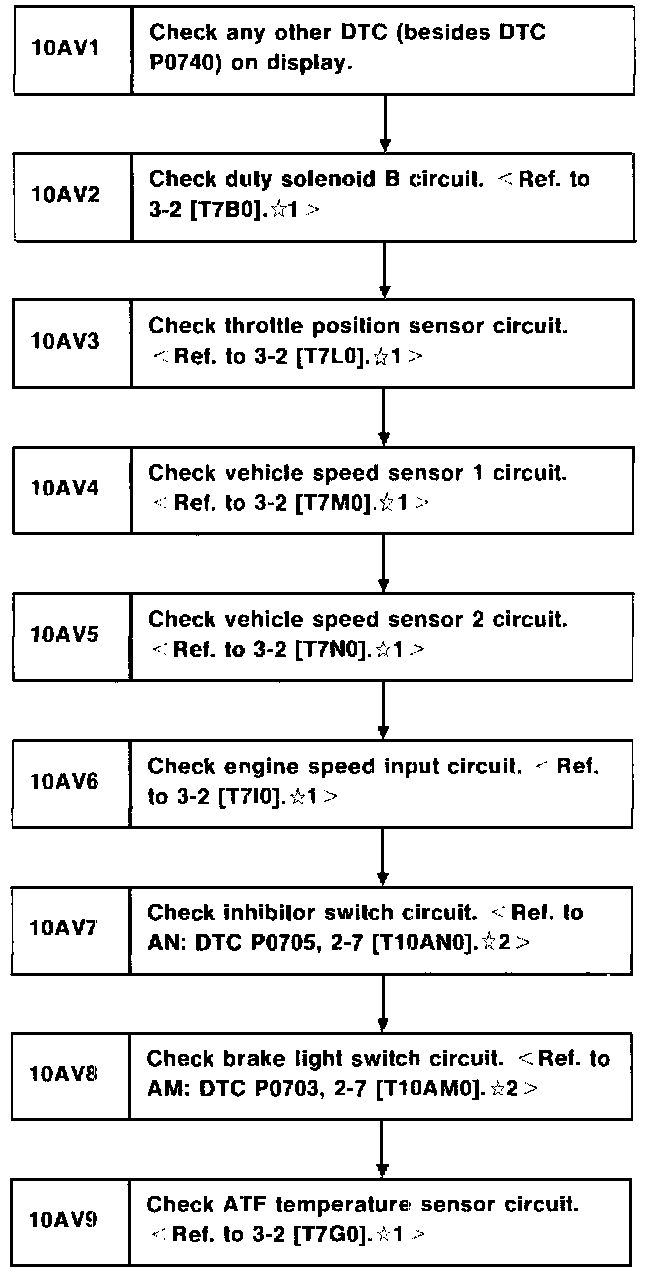

PROCEDURES
