P0703

DTC P0703: BRAKE SWITCH INPUT MALFUNCTION (ATBRK)









DTC DETECTING CONDITION:
- Two consecutive trips with fault

CAUTION: After repair or replacement of faulty parts. conduct CLEAR MEMORY and INSPECTION MODES.

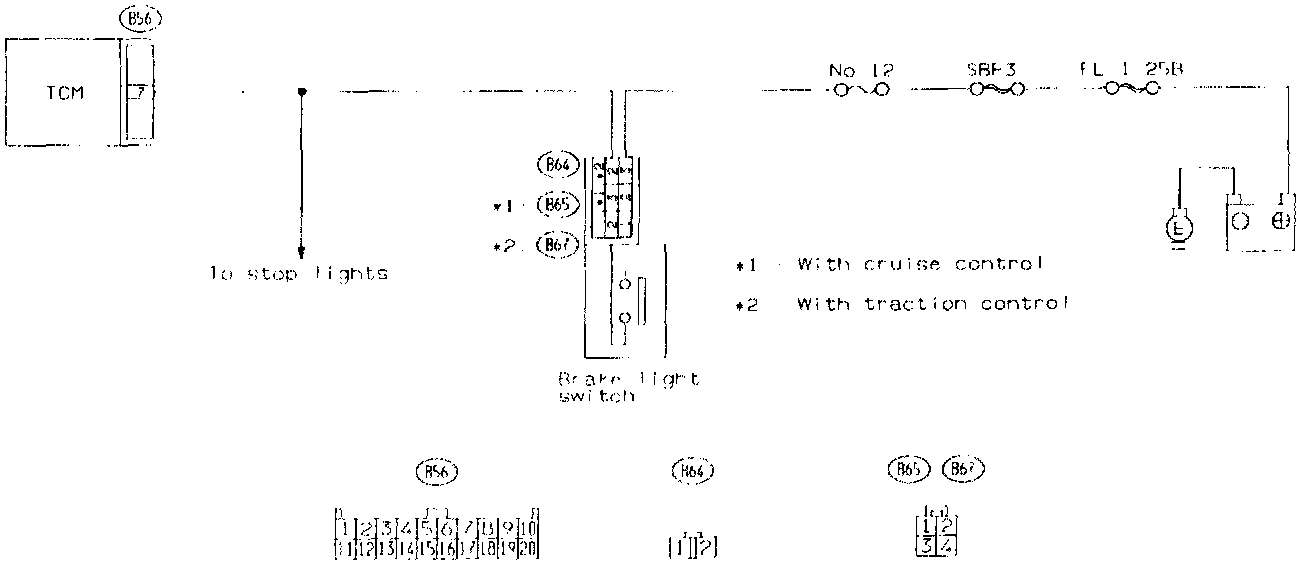

WIRING DIAGRAM

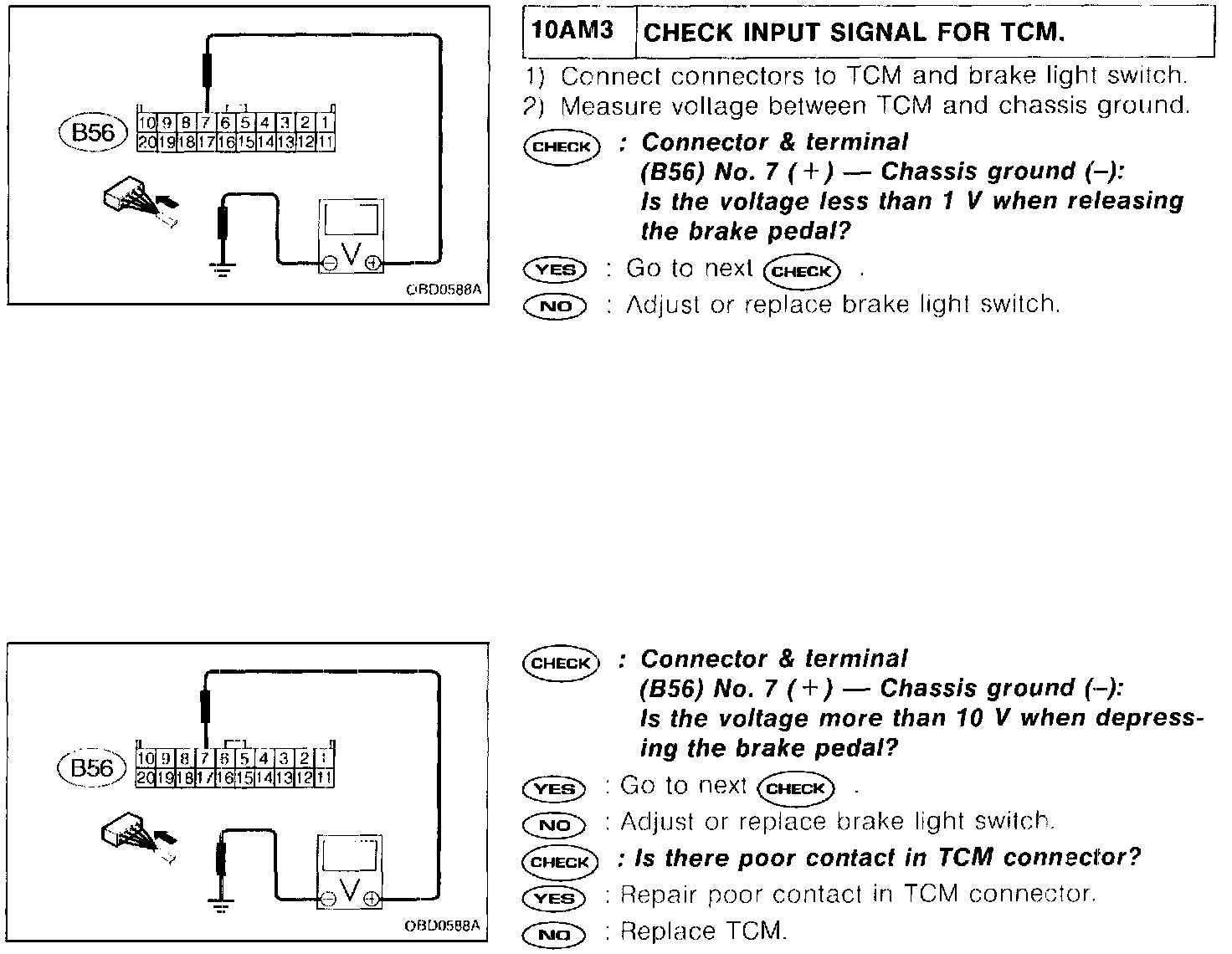

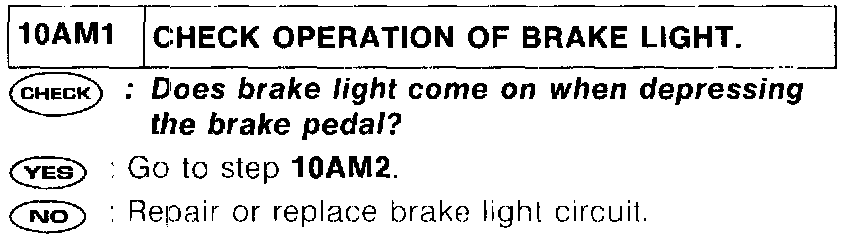

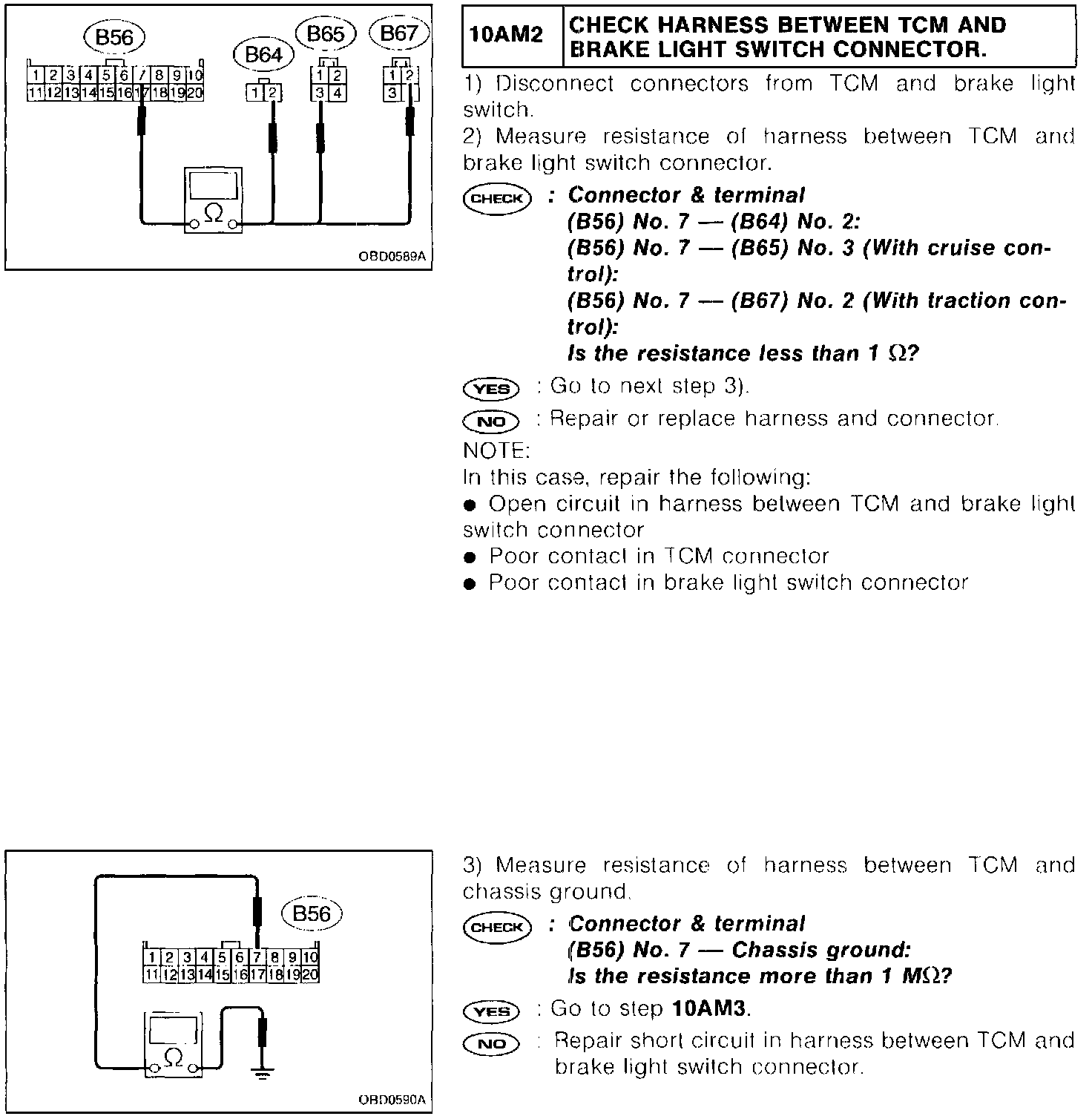

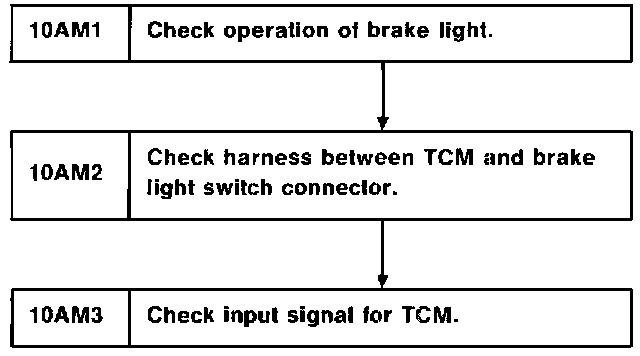

PROCEDURES
