P0507

DTC P0507: IDLE CONTROL SYSTEM RPM HIGHER THAN EXPECTED (ISC-H)

DTC DETECTING CONDITION:





- Two consecutive trips with fault

TROUBLE SYMPTOM:
- Engine keeps running at higher revolution than specified idling revolution.

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

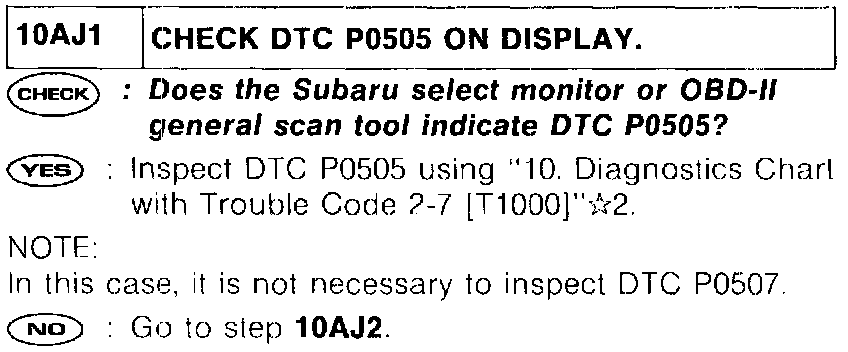

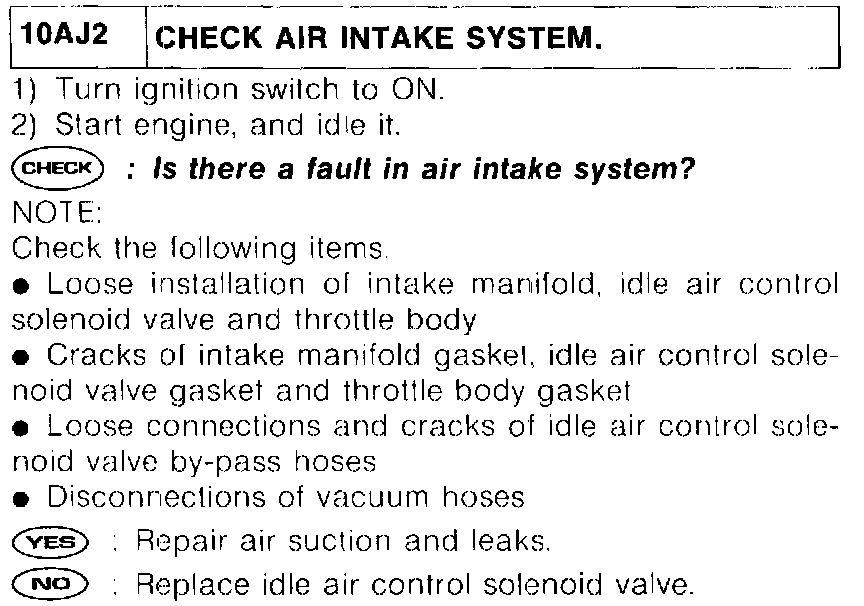

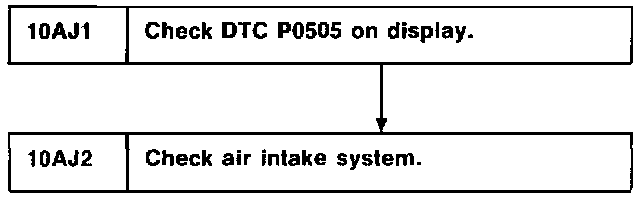

PROCEDURES
