P0450

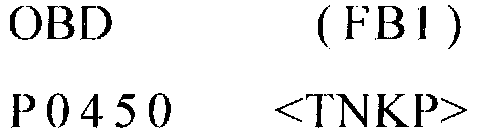

: DTC P0450 EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR MALFUNCTION (TNKP)-





DTC DETECTING CONDITION:
- Immediately at fault recognition

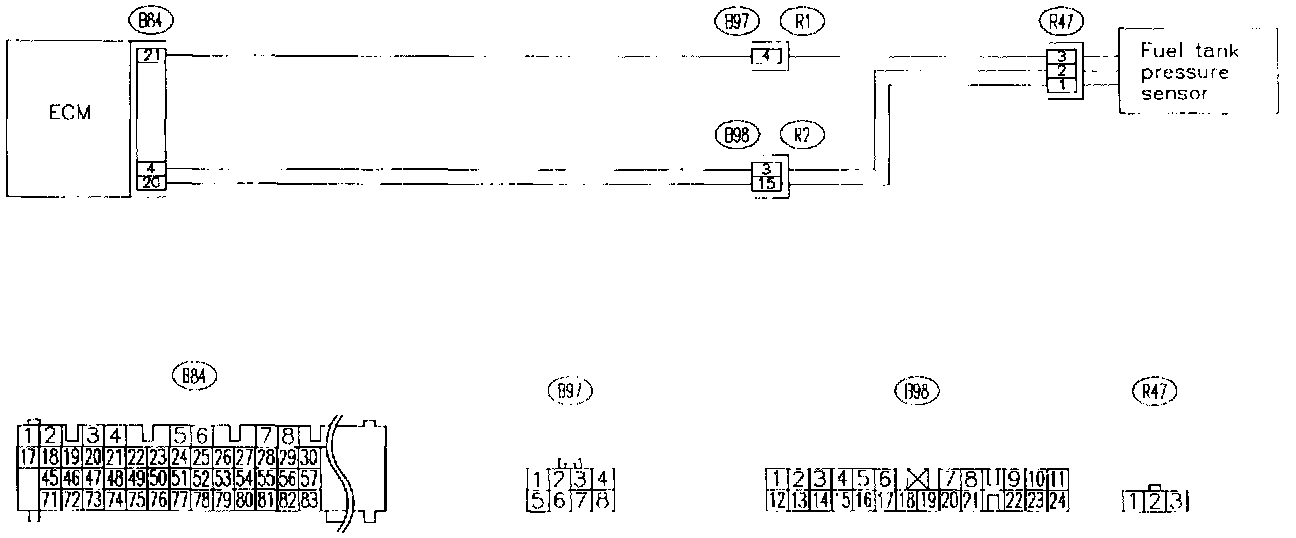

WIRING DIAGRAM

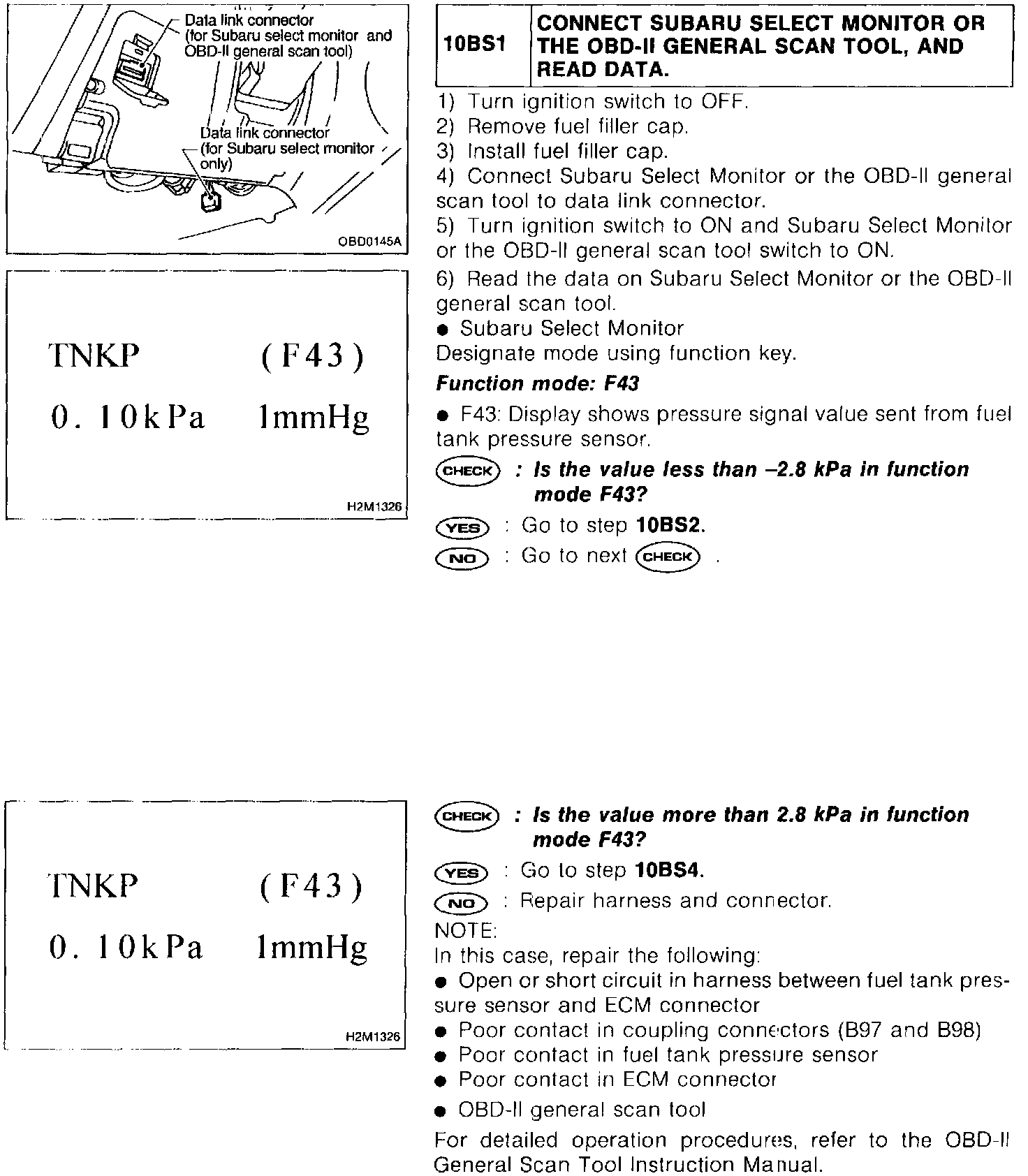

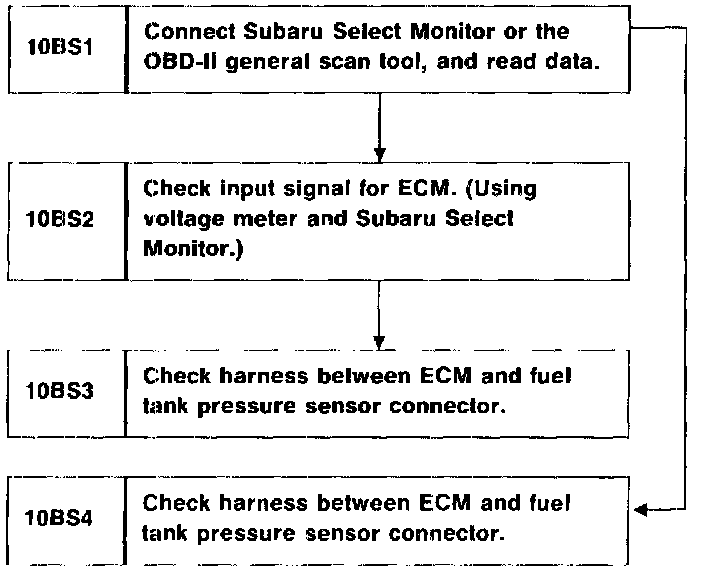

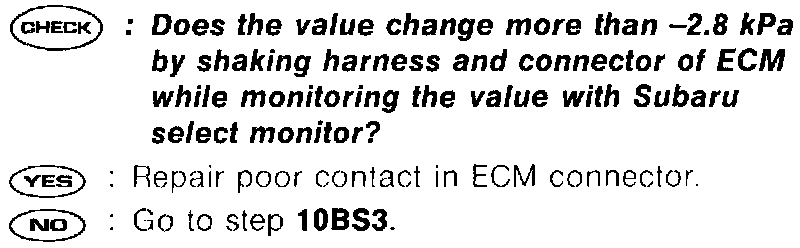

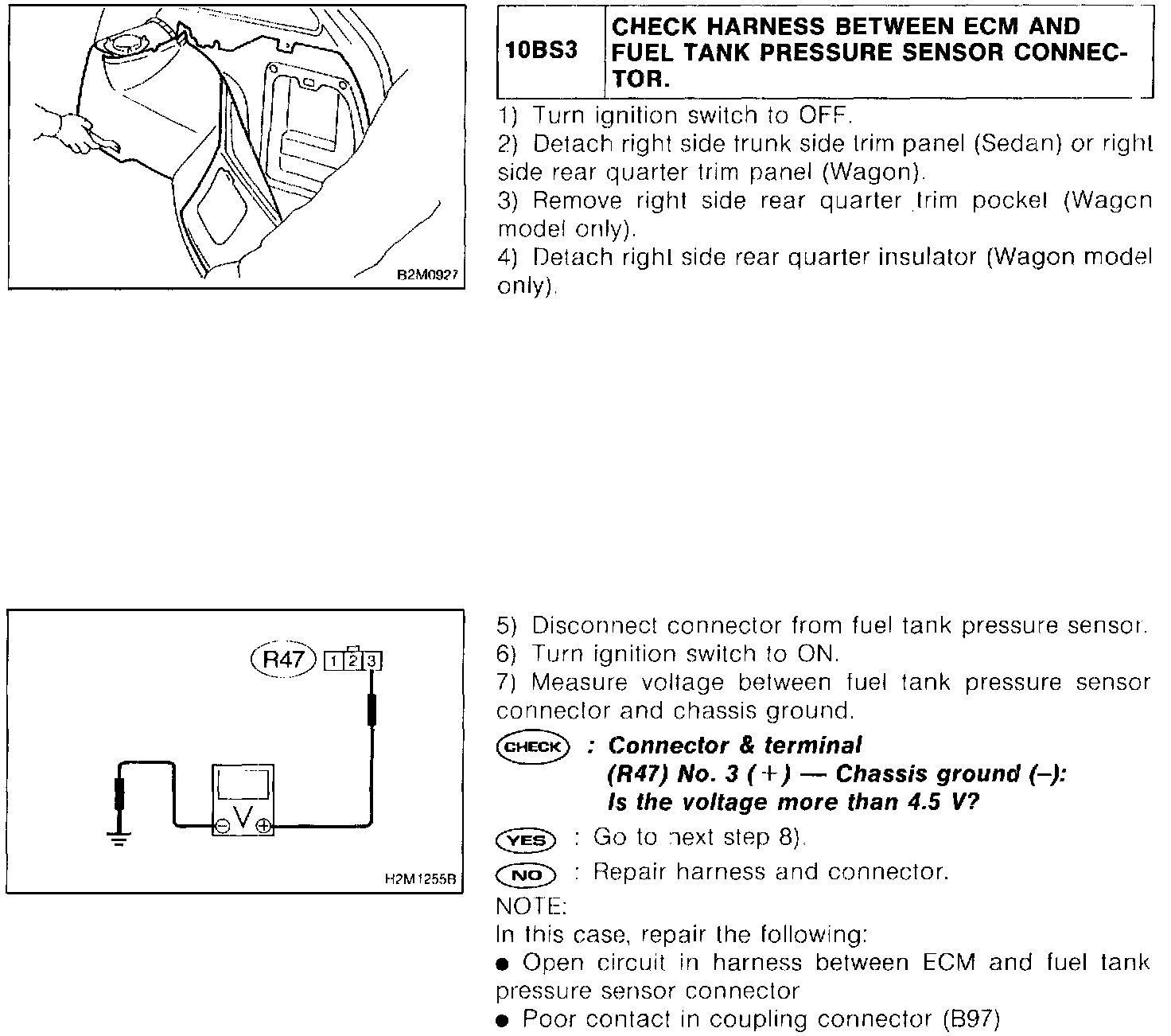

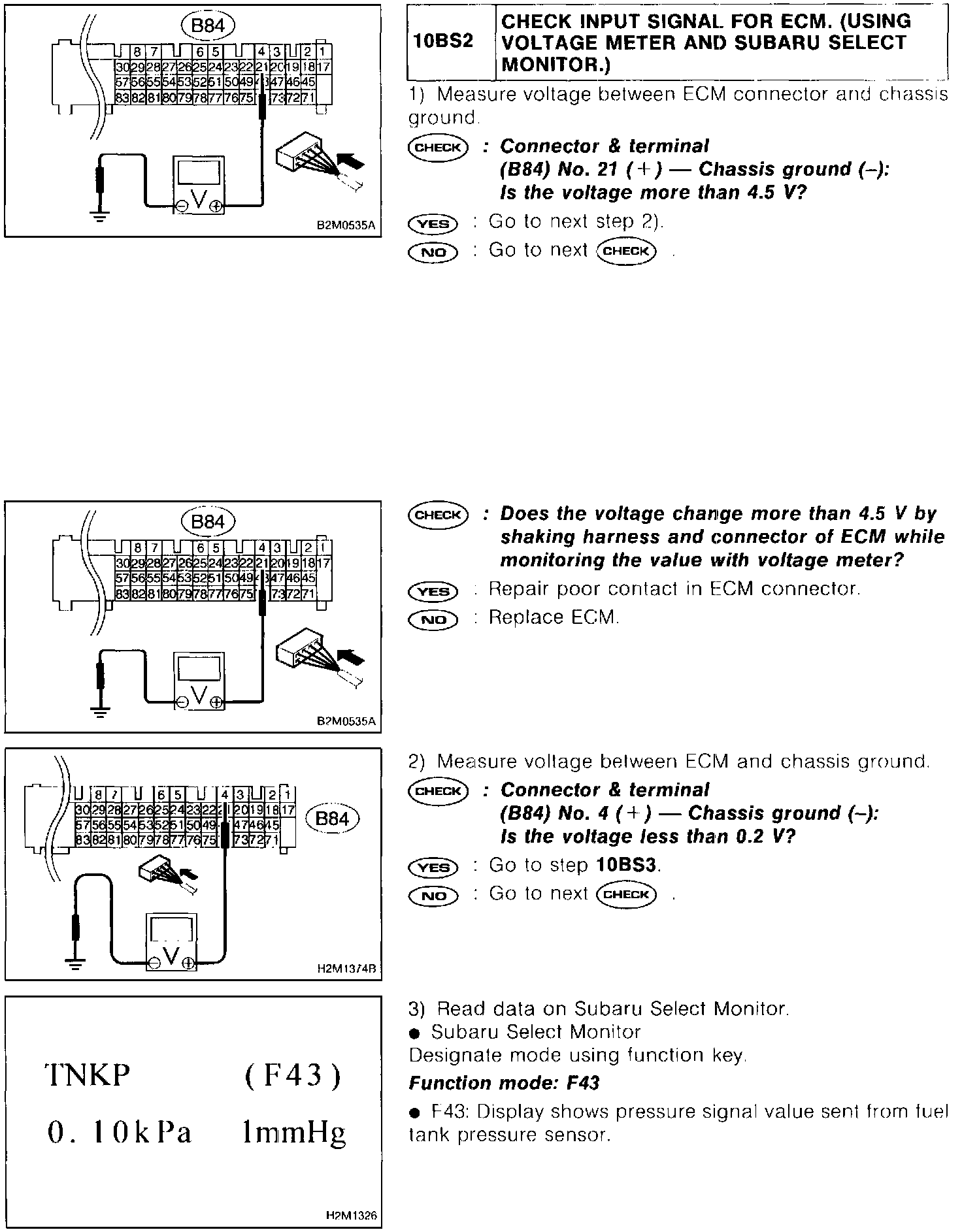

PROCEDURES

















CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.
