P0443

DTC P0443: EVAPORATIVE EMISSION CONTROL SYSTEM PURGE CONTROL VALVE CIRCUIT MALFUNCTION (CPC)

DTC DETECTING CONDITION





- Two consecutive trips with fault

TROUBLE SYMPTOM:
- Erroneous idling

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

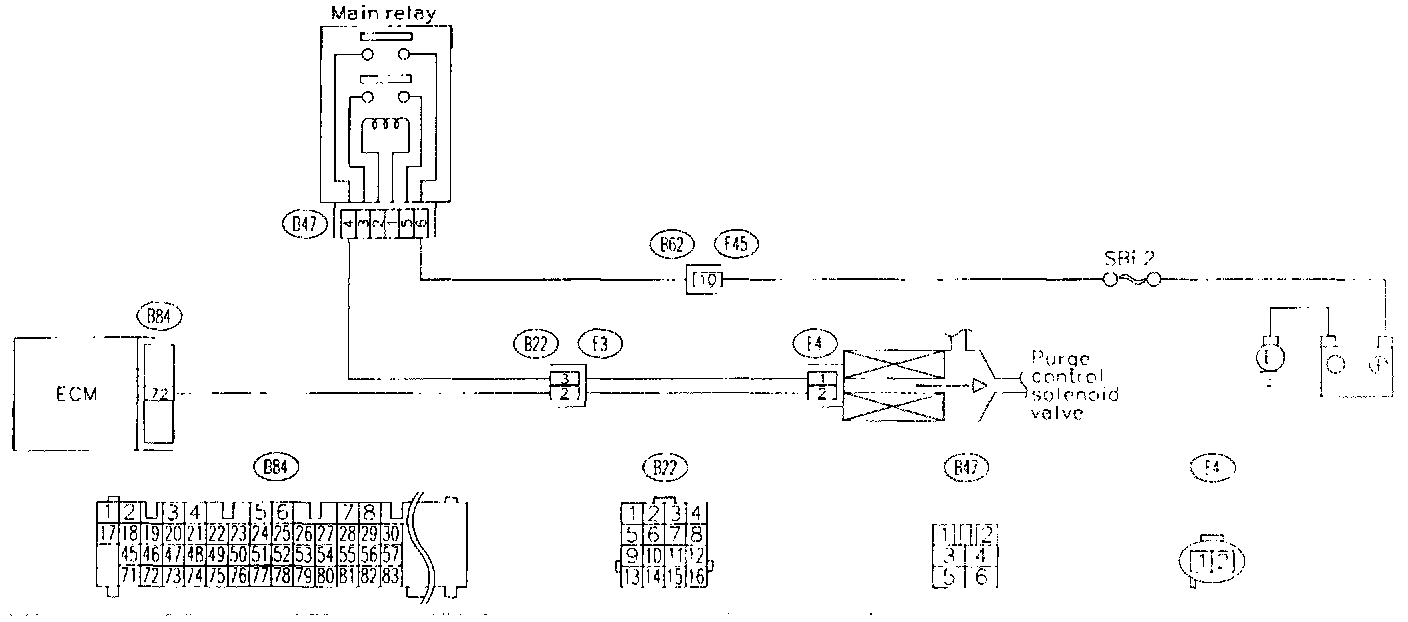

WIRING DIAGRAM

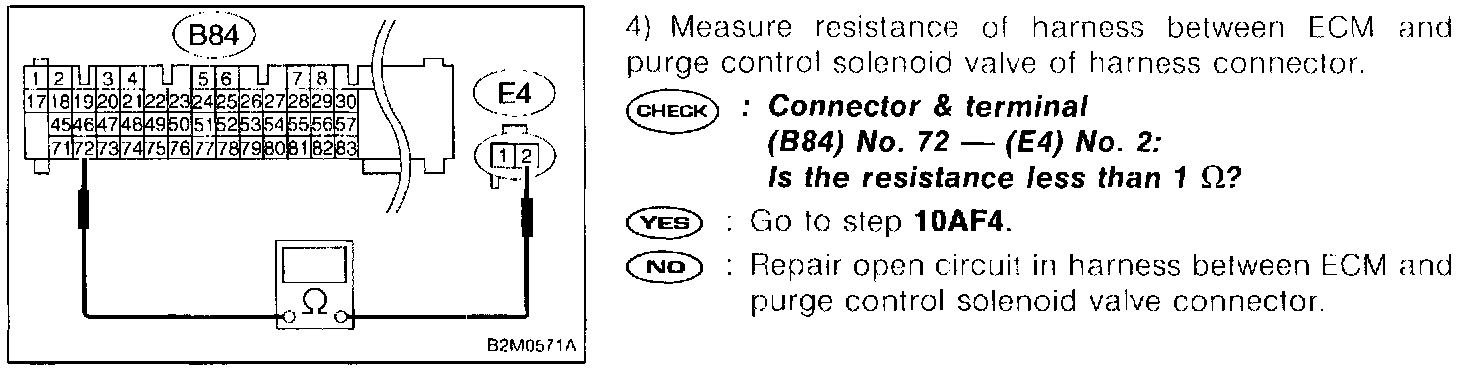

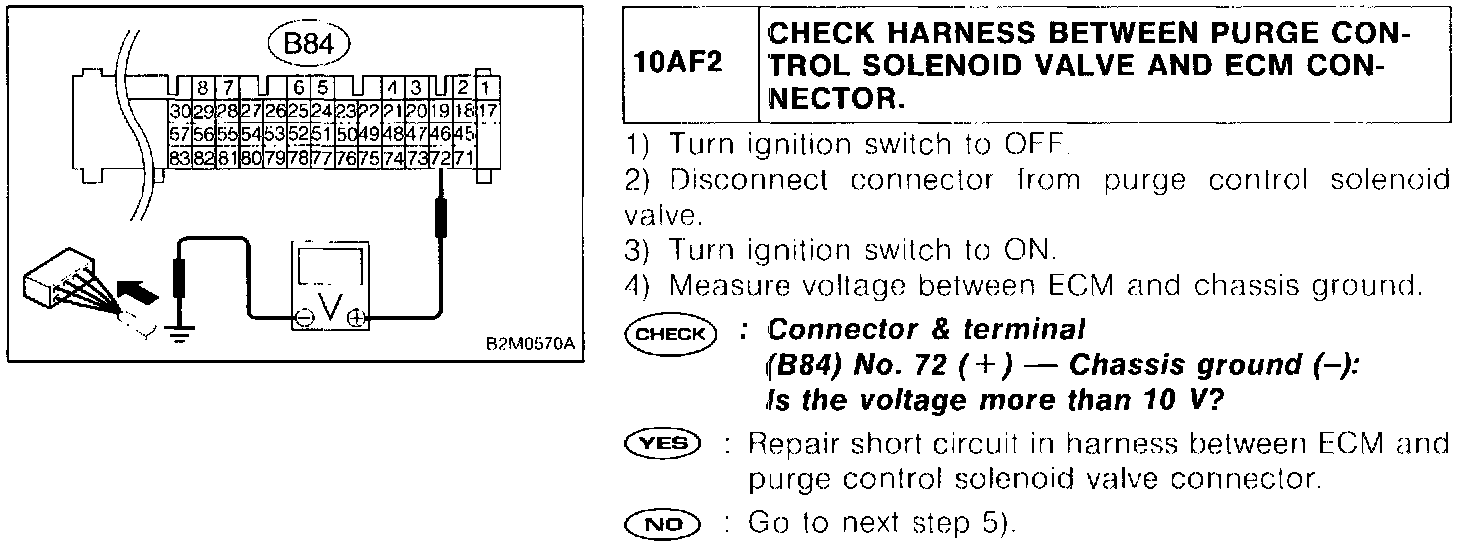

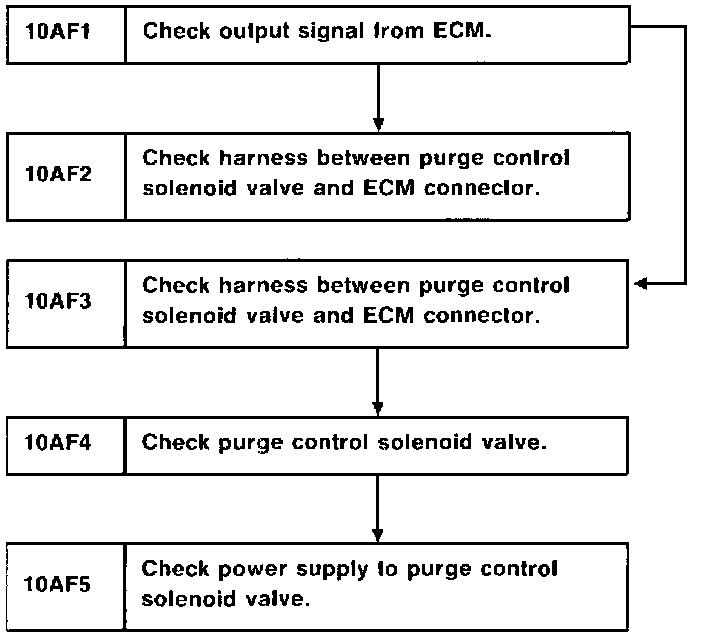

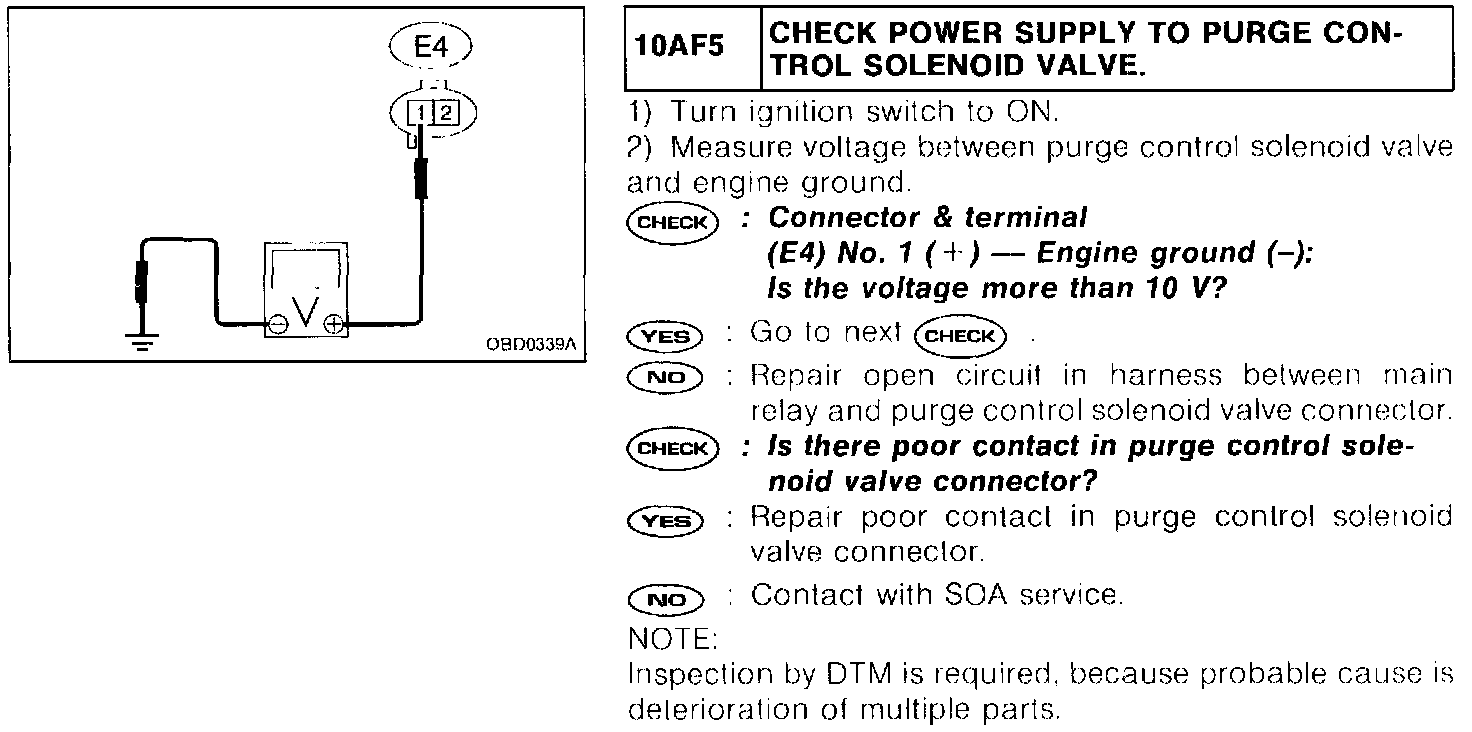

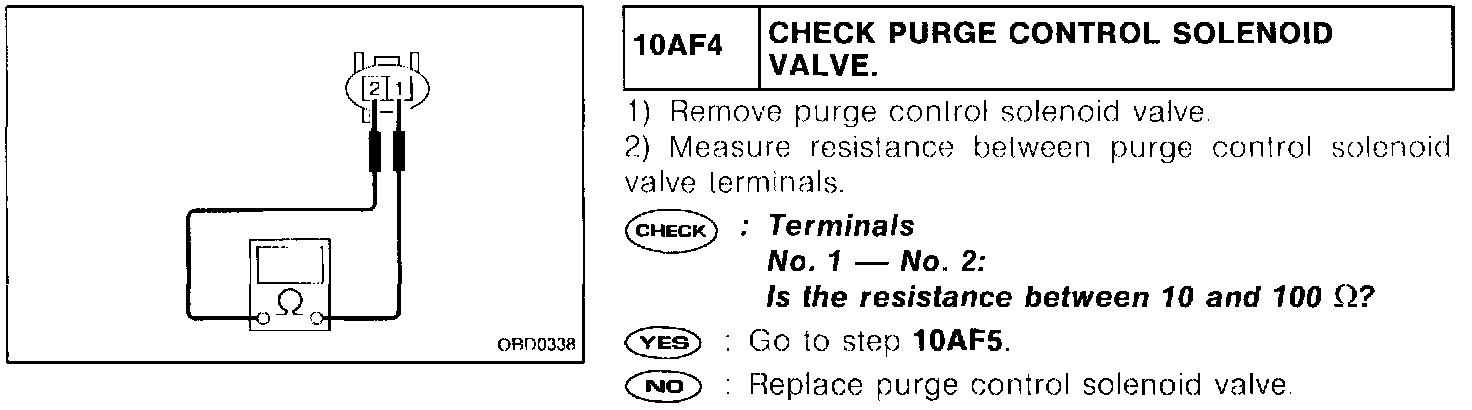

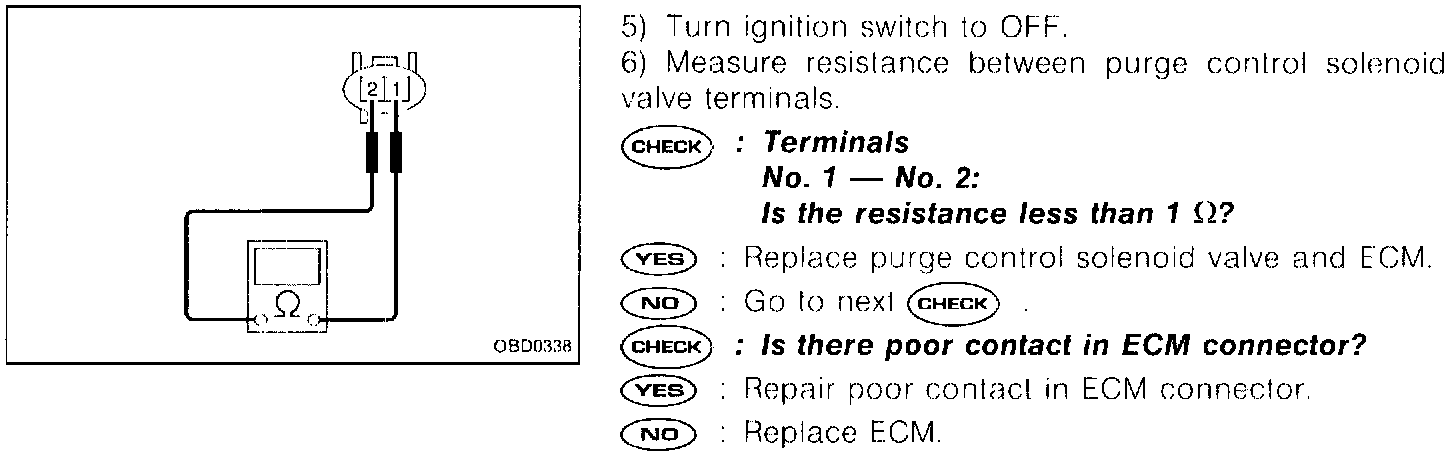

PROCEDURES
