P0403

DTC P0403: EXHAUST GAS RECIRCULATION CIRCUIT MALFUNCTION (EGRSOL)

DTC DETECTING CONDITION:





- Two consecutive trips with fault

TROUBLE SYMPTOM:
- Poor driving performance on low engine speed

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

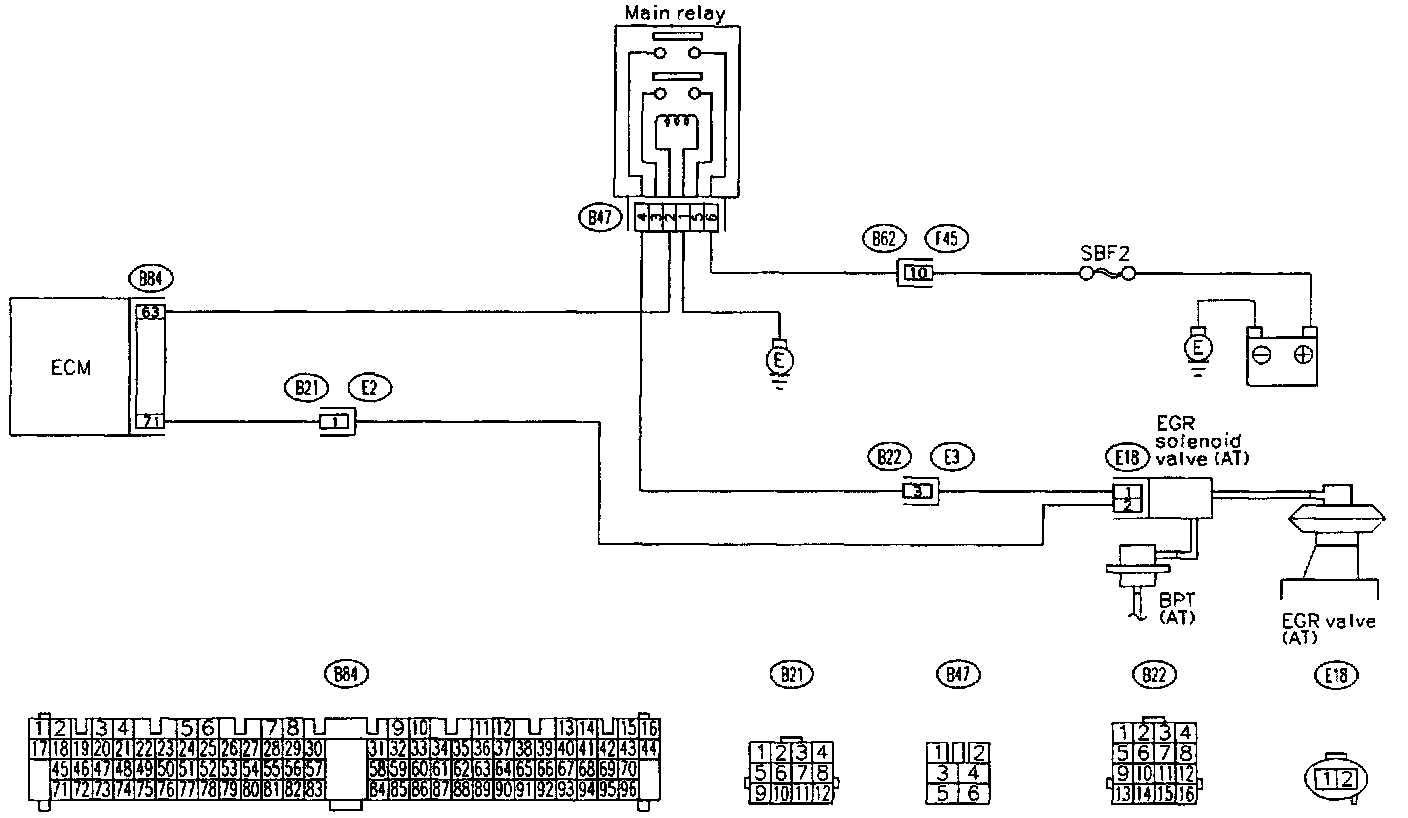

WIRING DIAGRAM

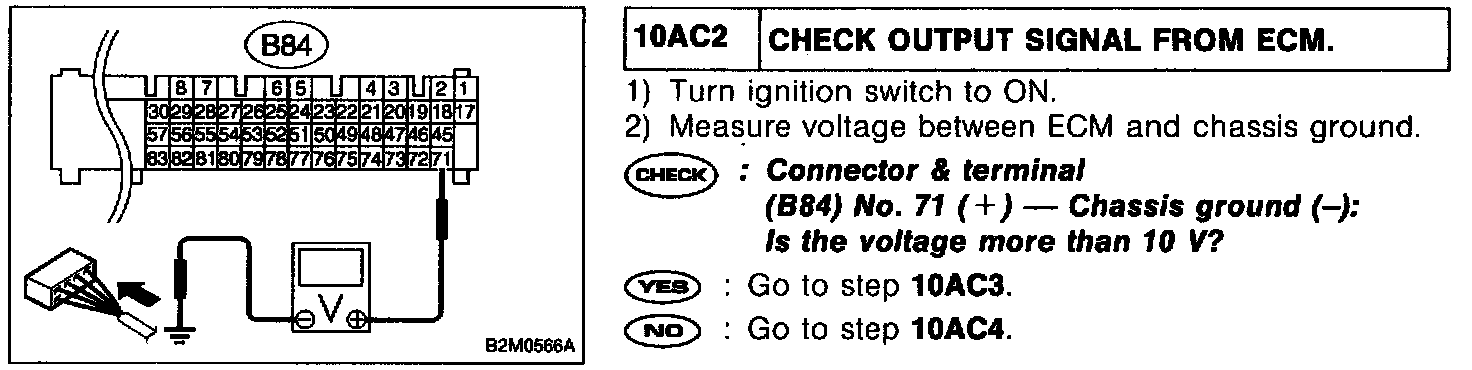

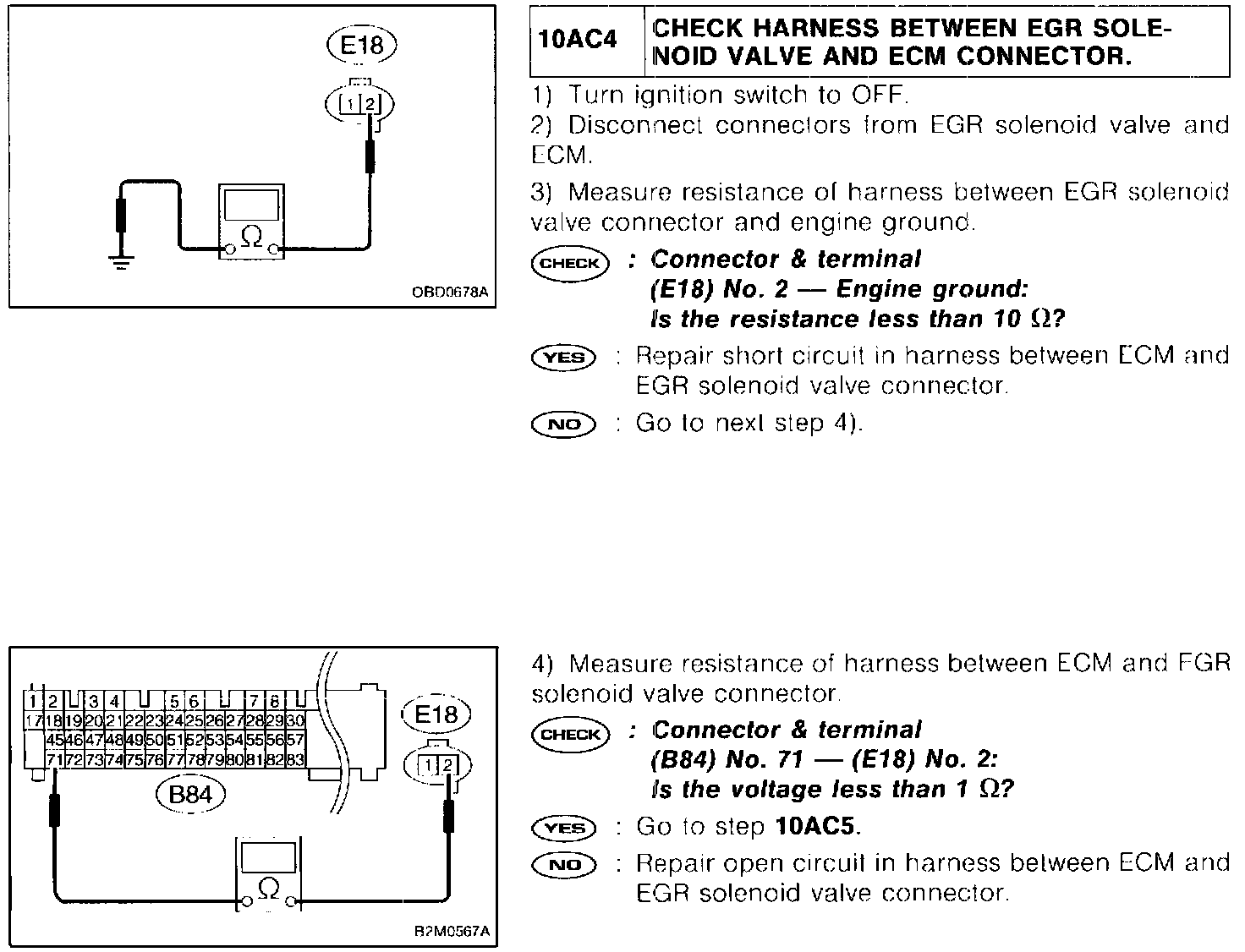

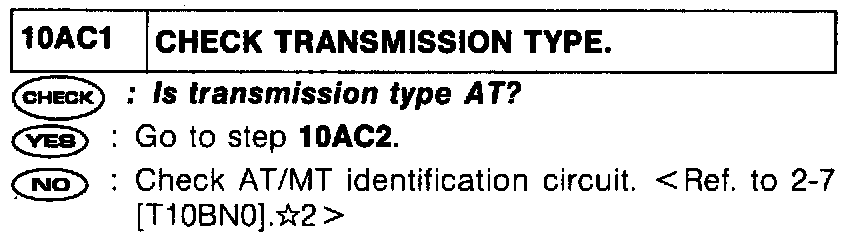

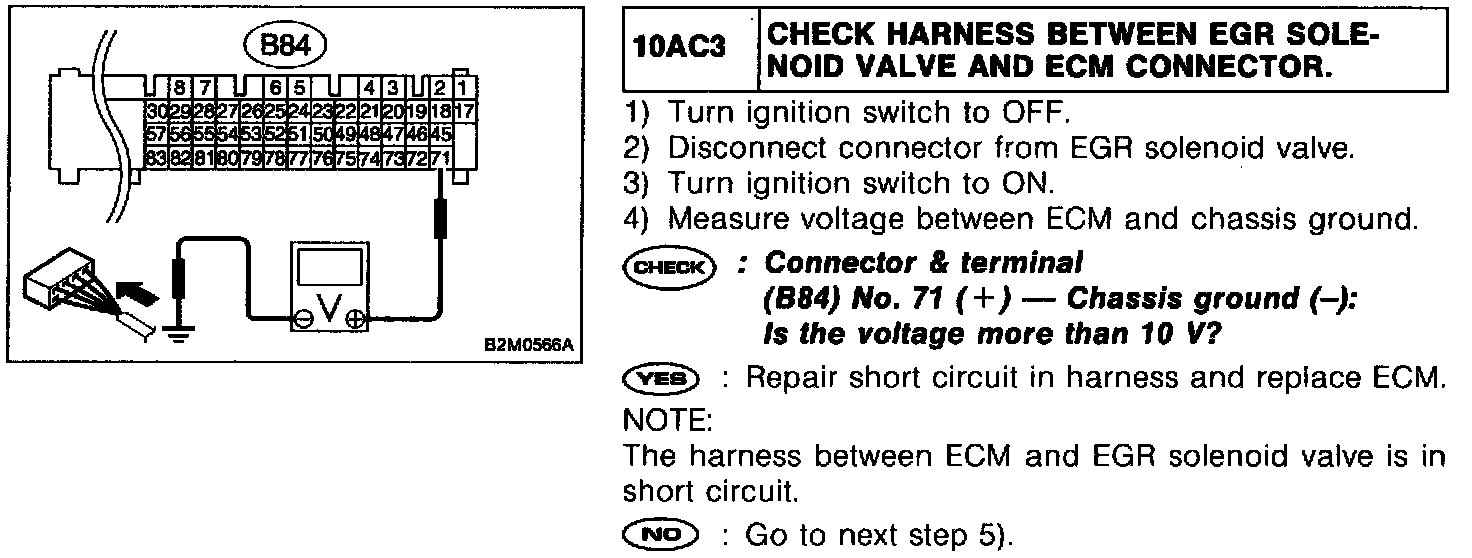

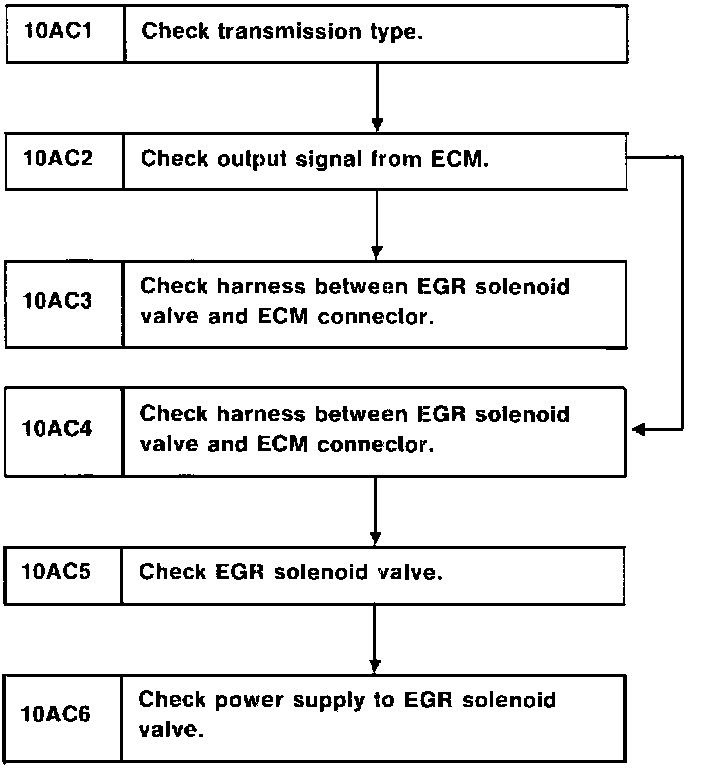

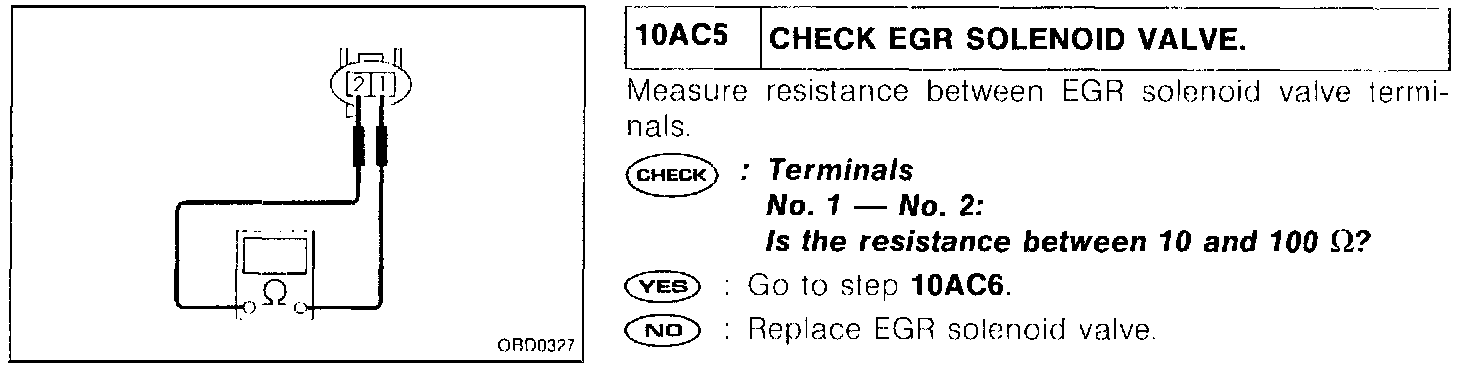

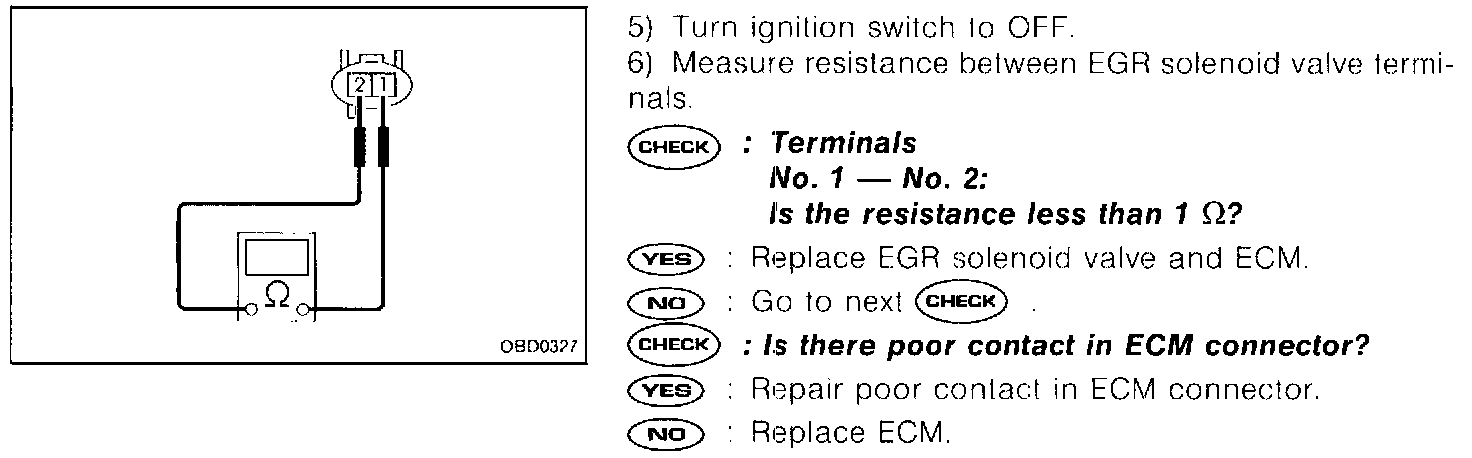

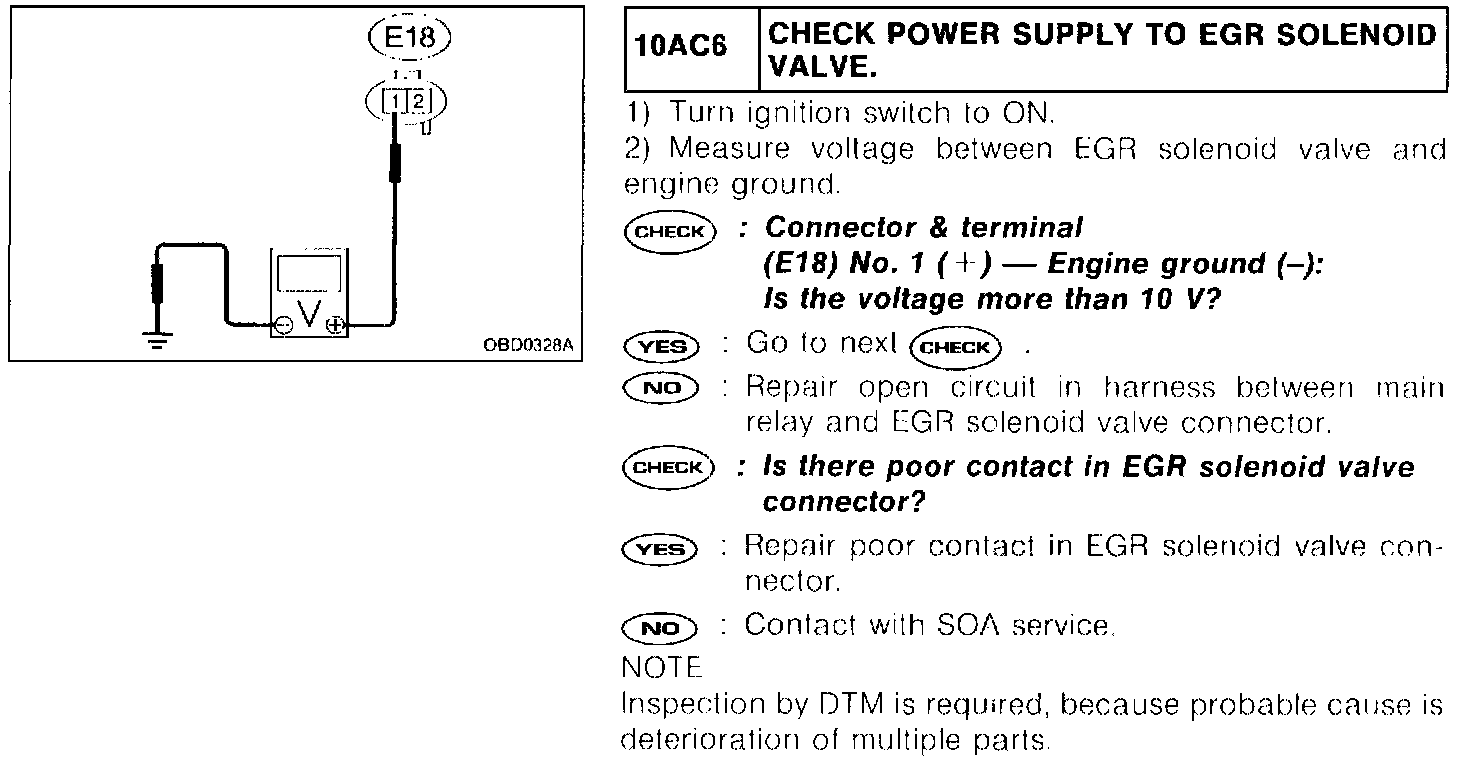

PROCEDURES
