P0202

DTC PO2O2: FUEL INJECTOR CIRCUIT MALFUNCTION - #2 (INJ2)





DTC DETECTING CONDITION:





- Immediately at fault recognition

TROUBLE SYMPTOM:
- Failure of engine to start
- Engine stalls
- Erroneous idling
- Rough driving

CAUTION:
- Check or repair only faulty cylinders.
- After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

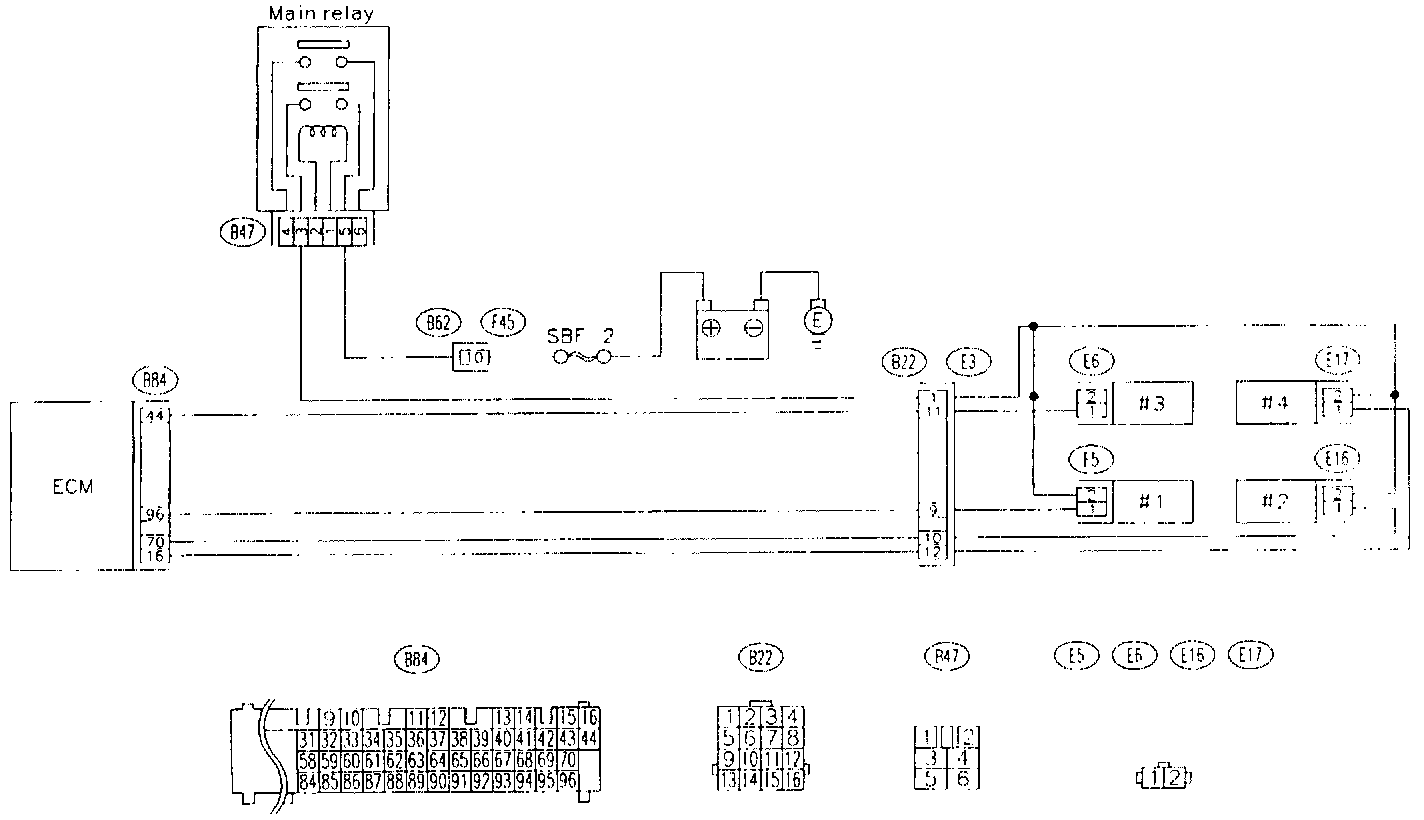

WIRING DIAGRAM:

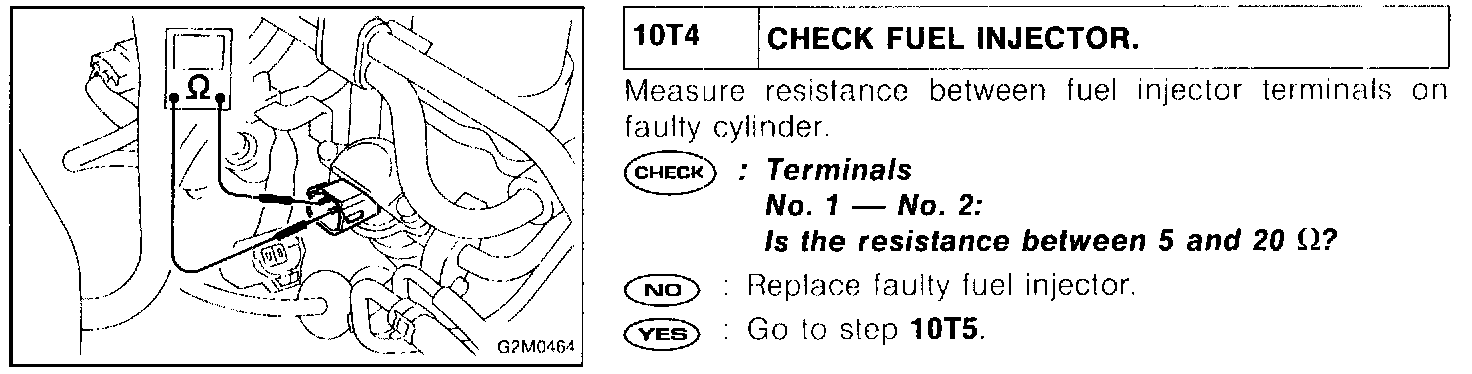

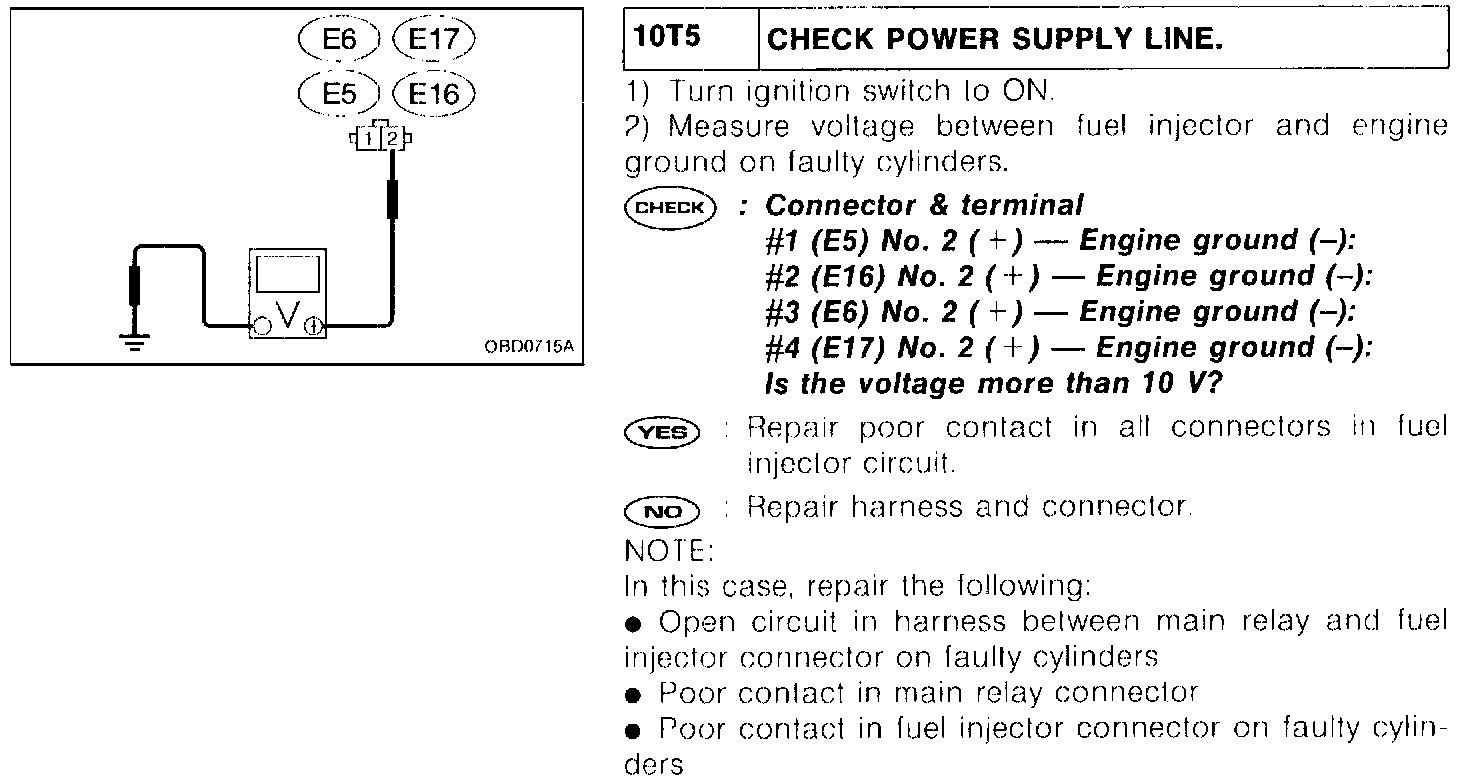

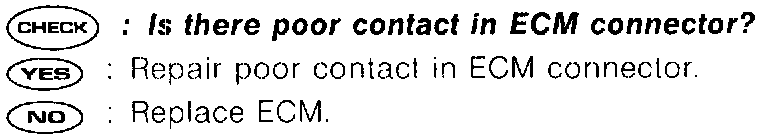

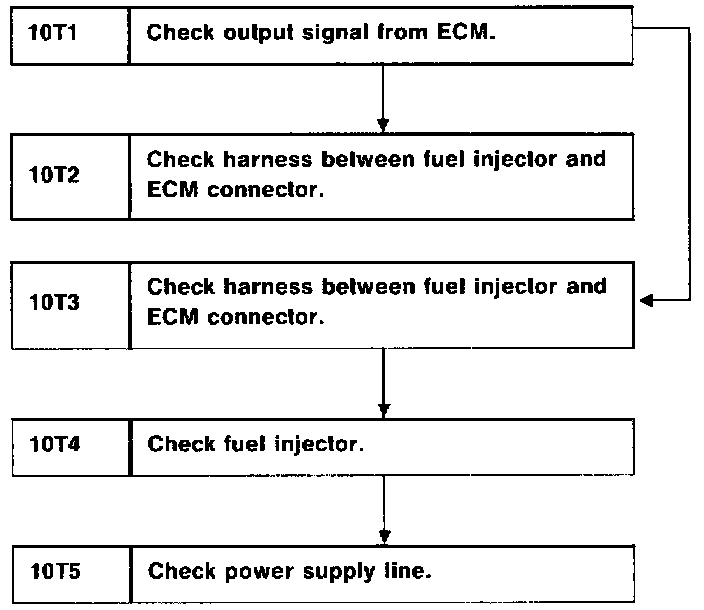

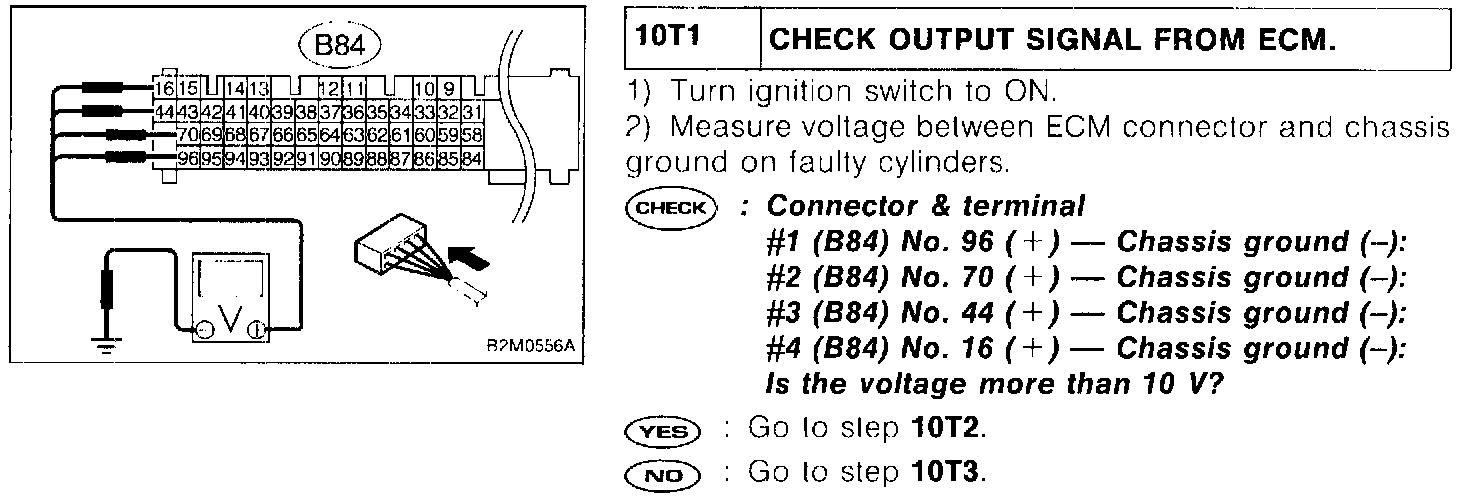

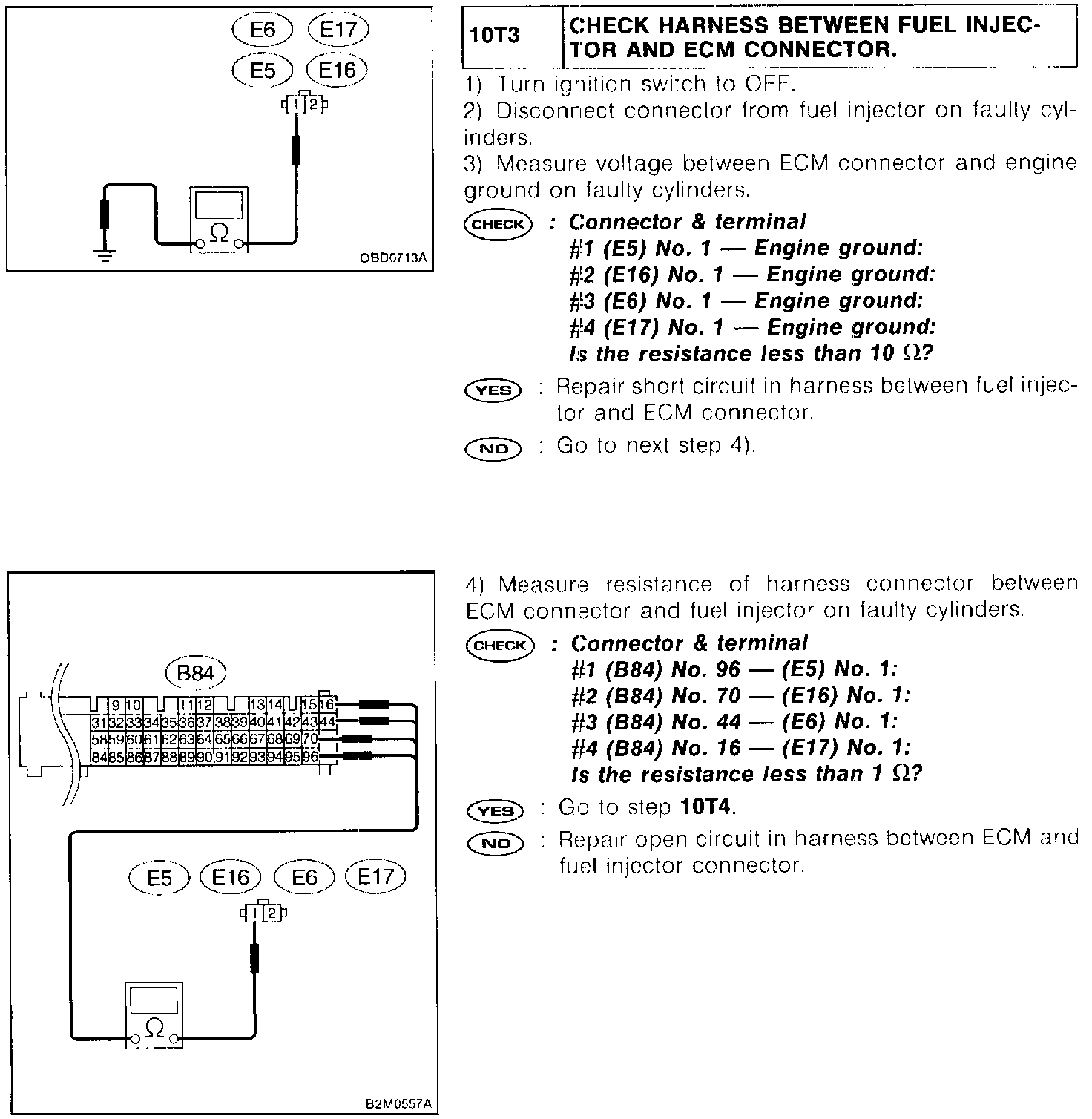

PROCEDURES
