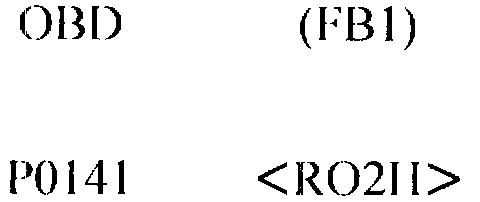

P0141

DTC P0141: REAR OXYGEN SENSOR HEATER CIRCUIT MALFUNCTION (RO2H)

DTC DETECTING CONDITION:





- Two consecutive trips with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM

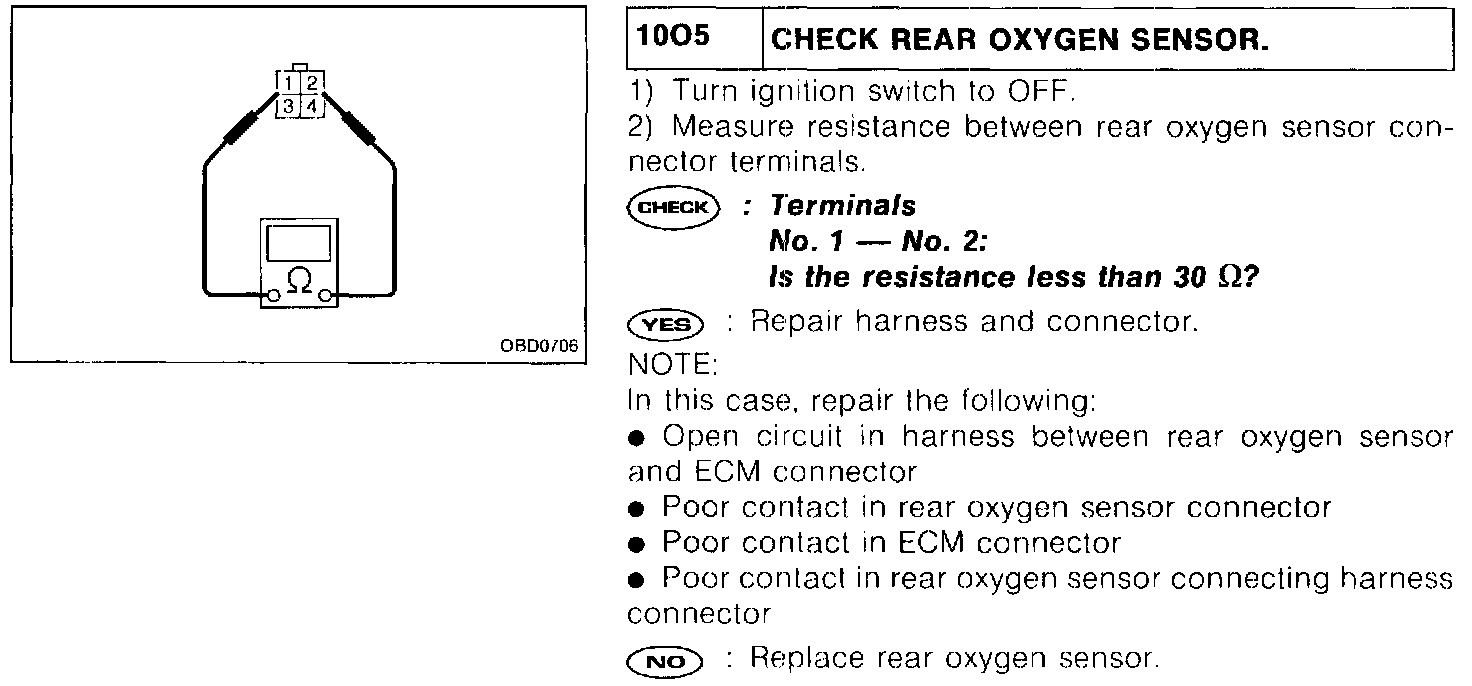

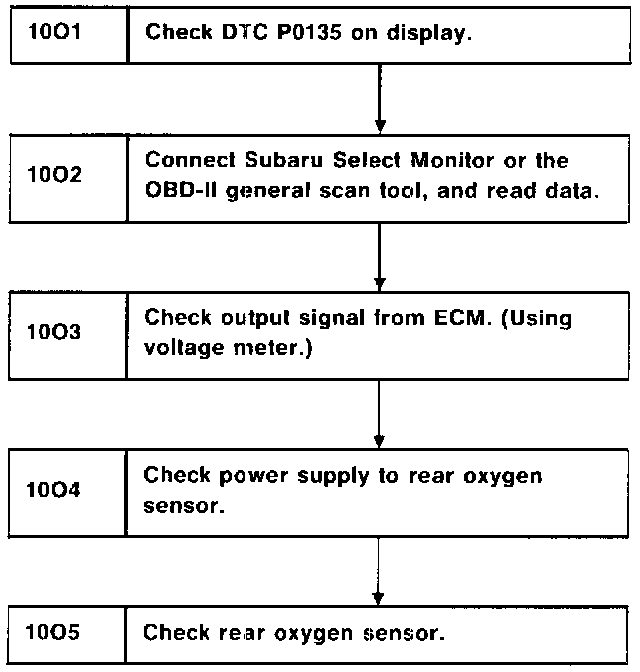

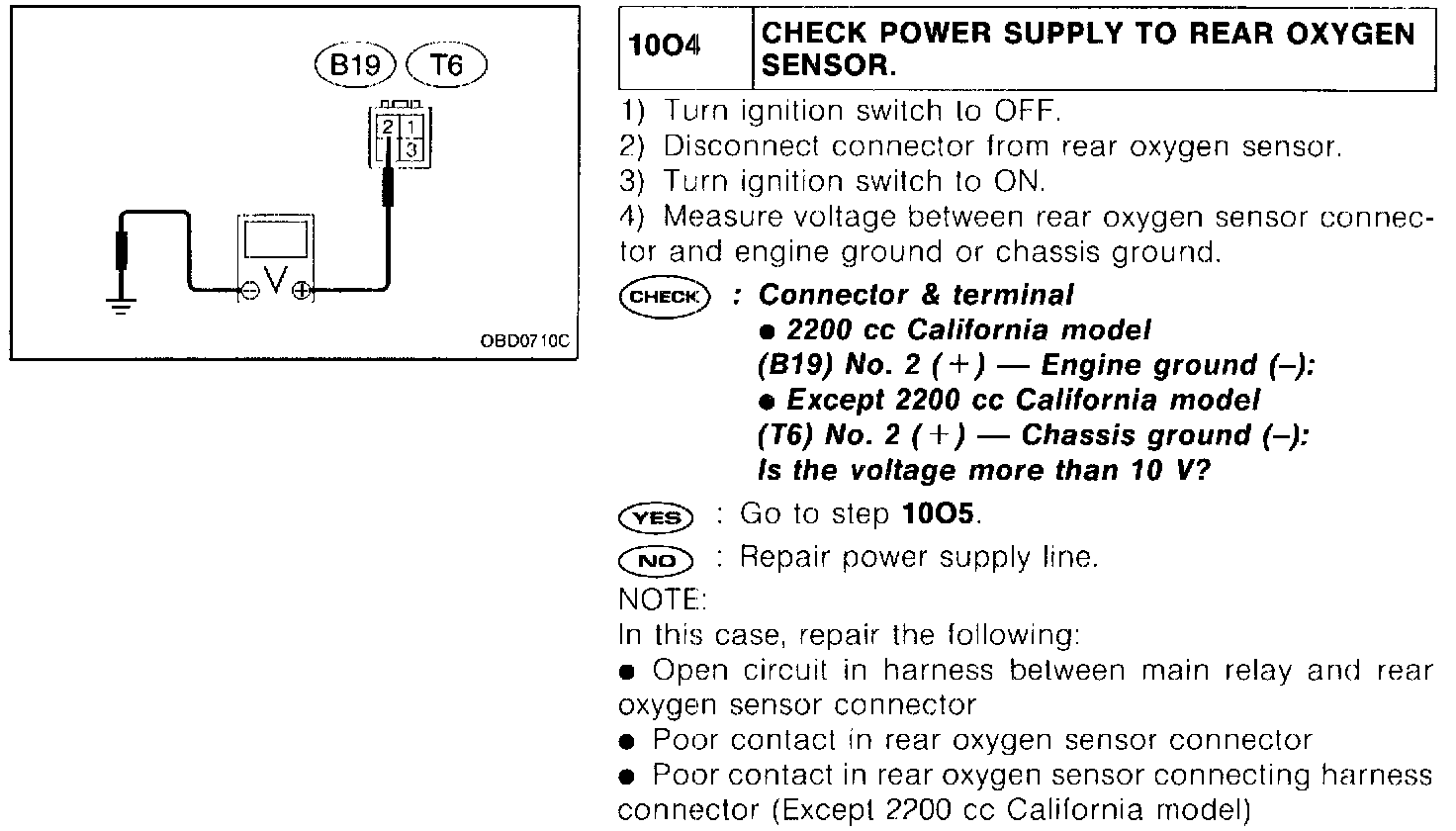

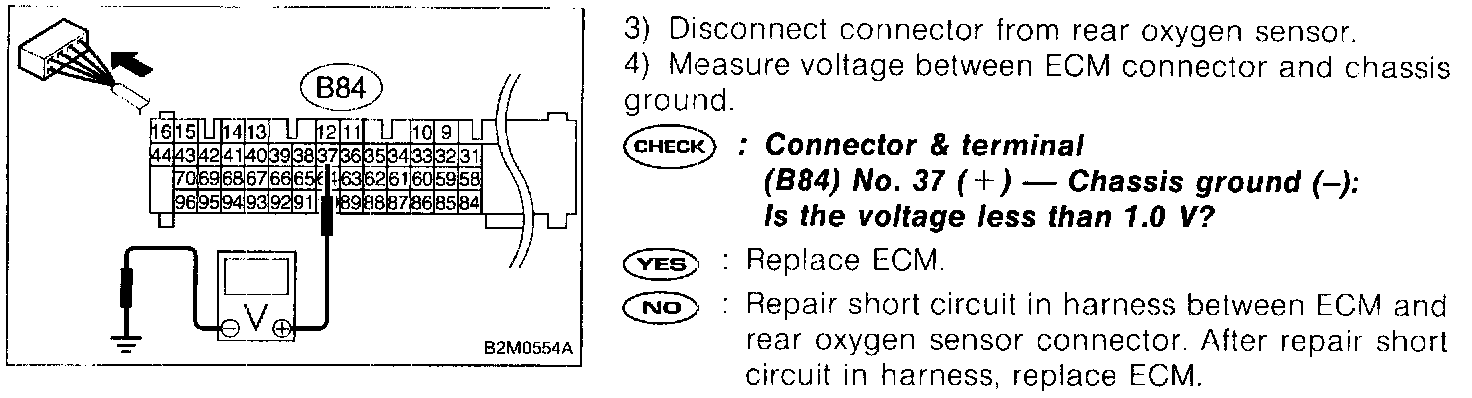

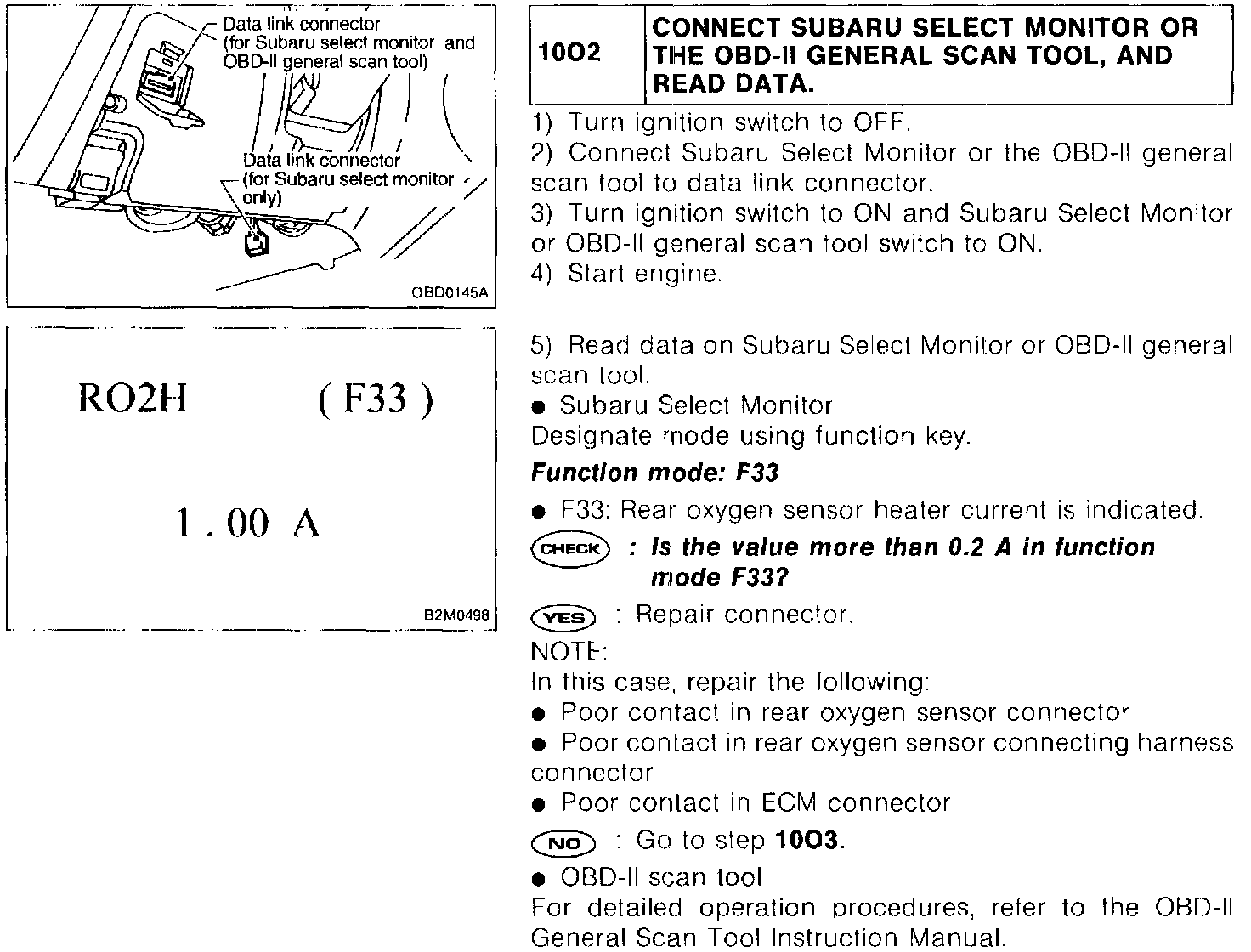

PROCEDURES
