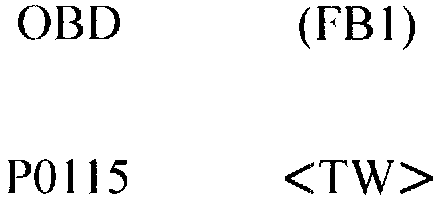

P0115

DTC P0115: ENGINE COOLANT TEMPERATURE SENSOR CIRCUIT MALFUNCTION (TW)

DTC DETECTING CONDITION:





- Immediately at fault recognition

TROUBLE SYMPTOM:
- Hard to start
- Erroneous idling
- Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM

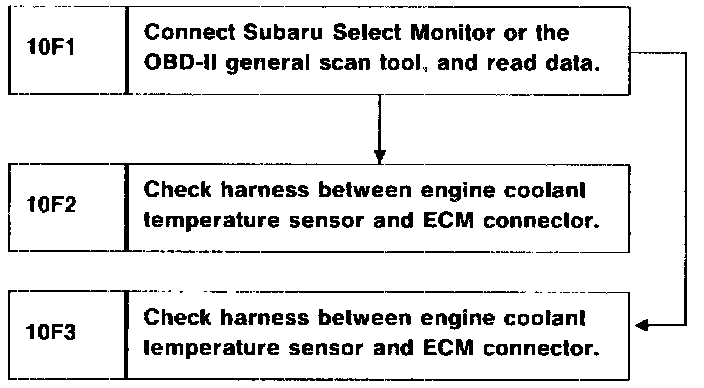

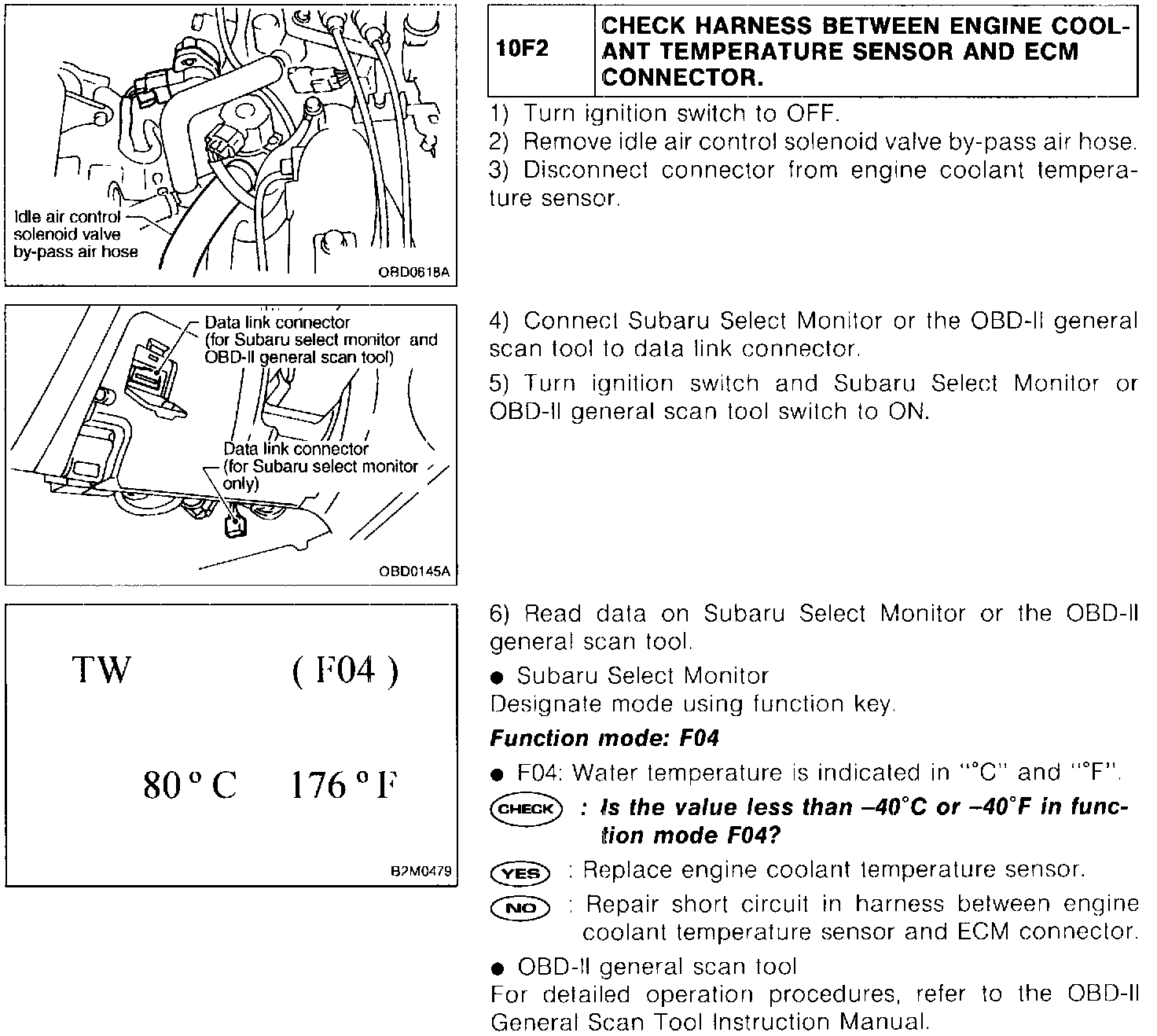

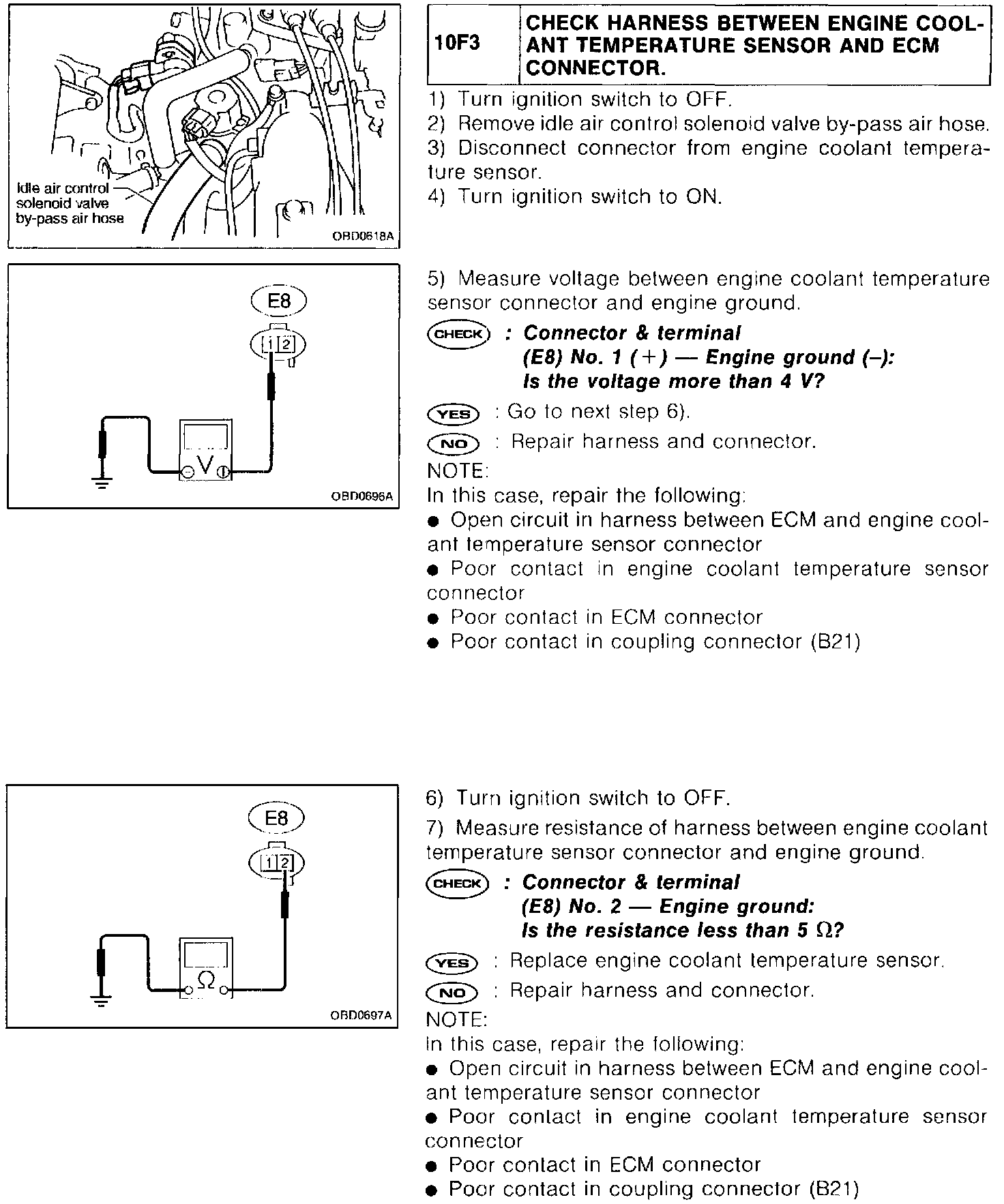

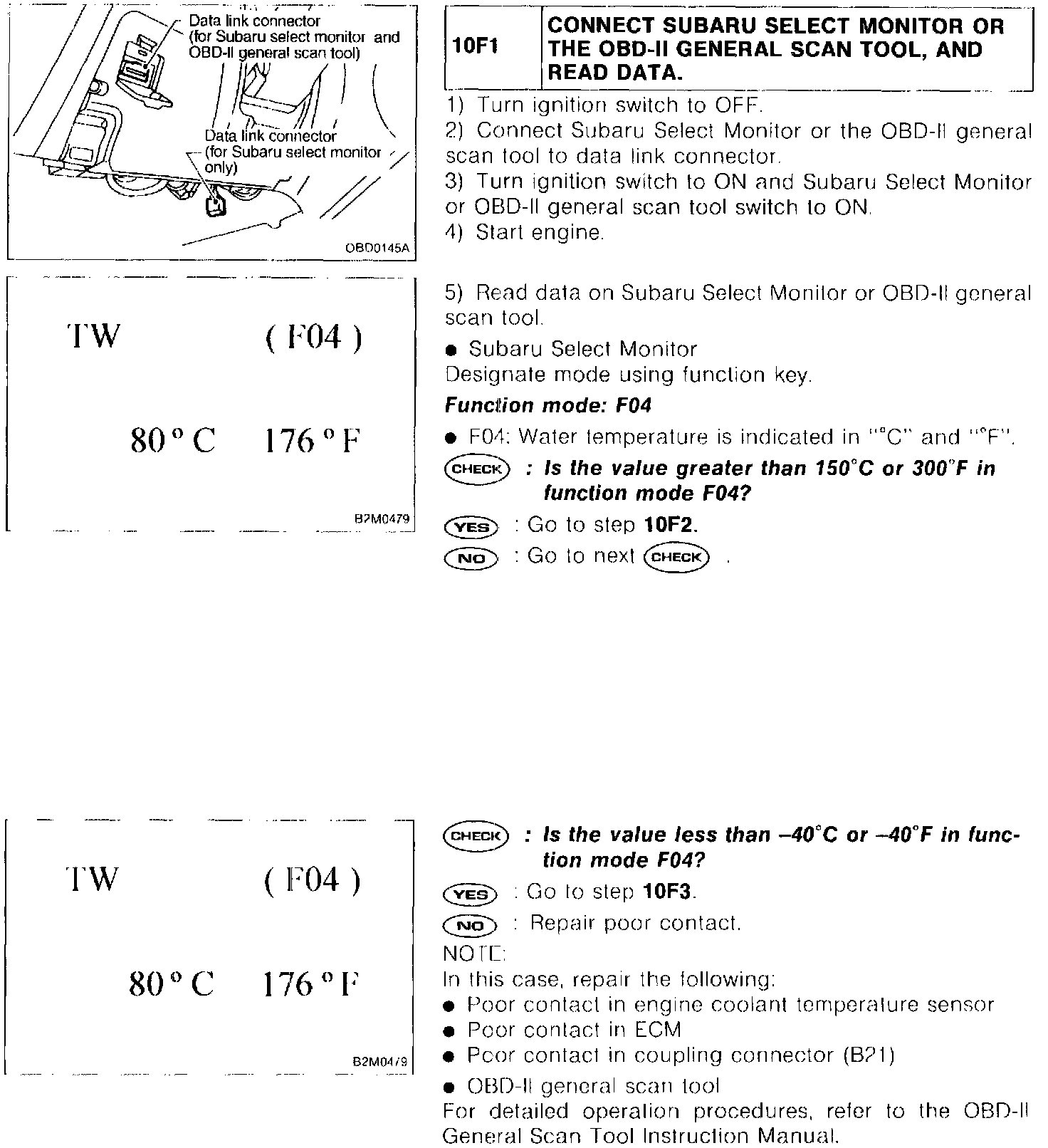

PROCEDURES
