P0106

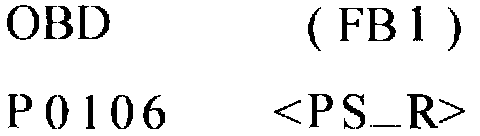

DTC P0106: PRESSURE SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM (PS-R)

DTC DETECTING CONDITION:



- Two consecutive trips with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

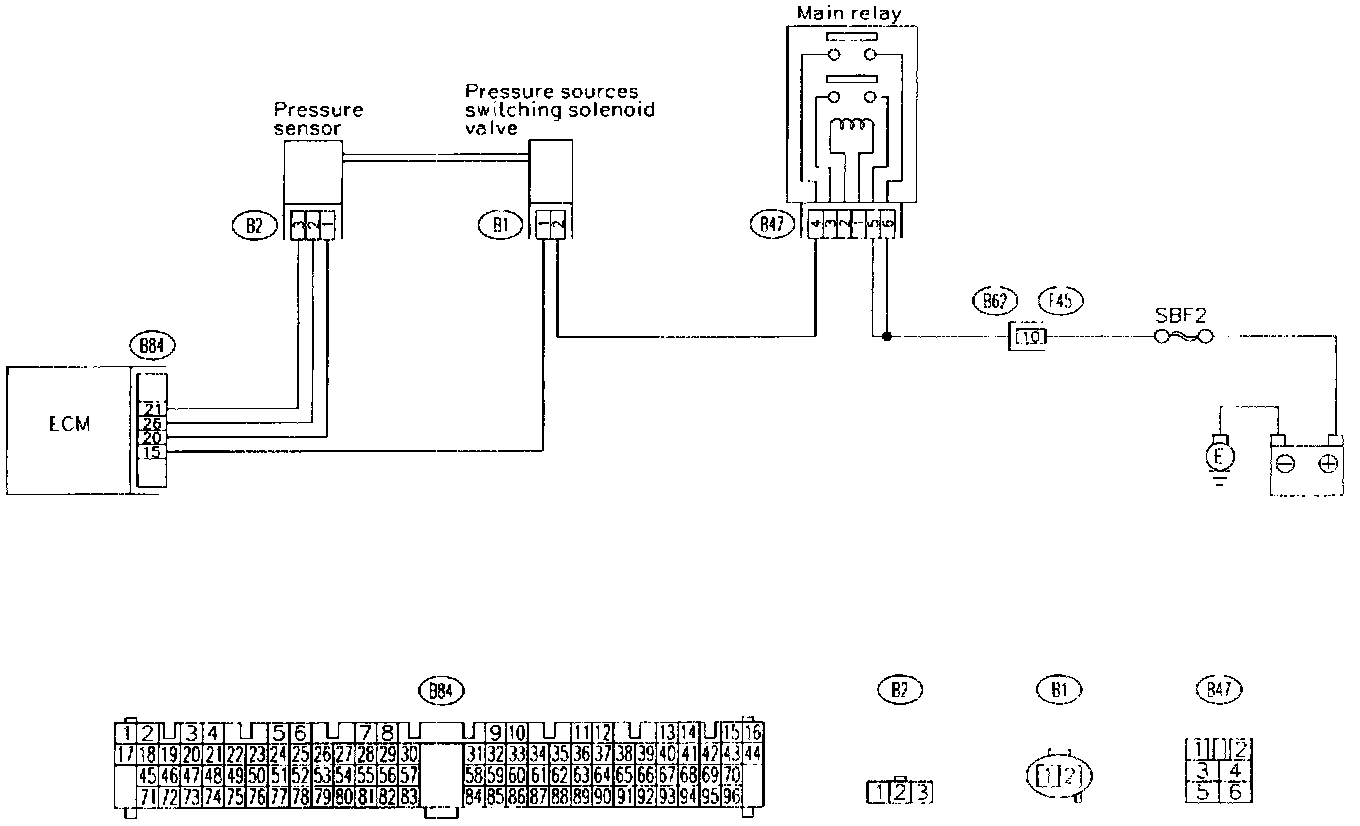

WIRING DIAGRAM

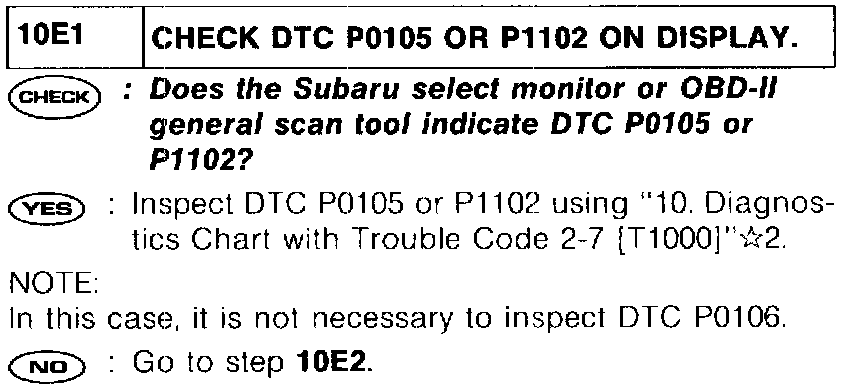

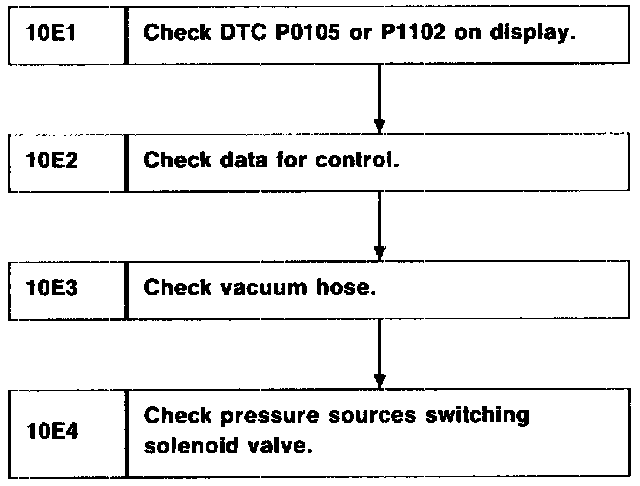

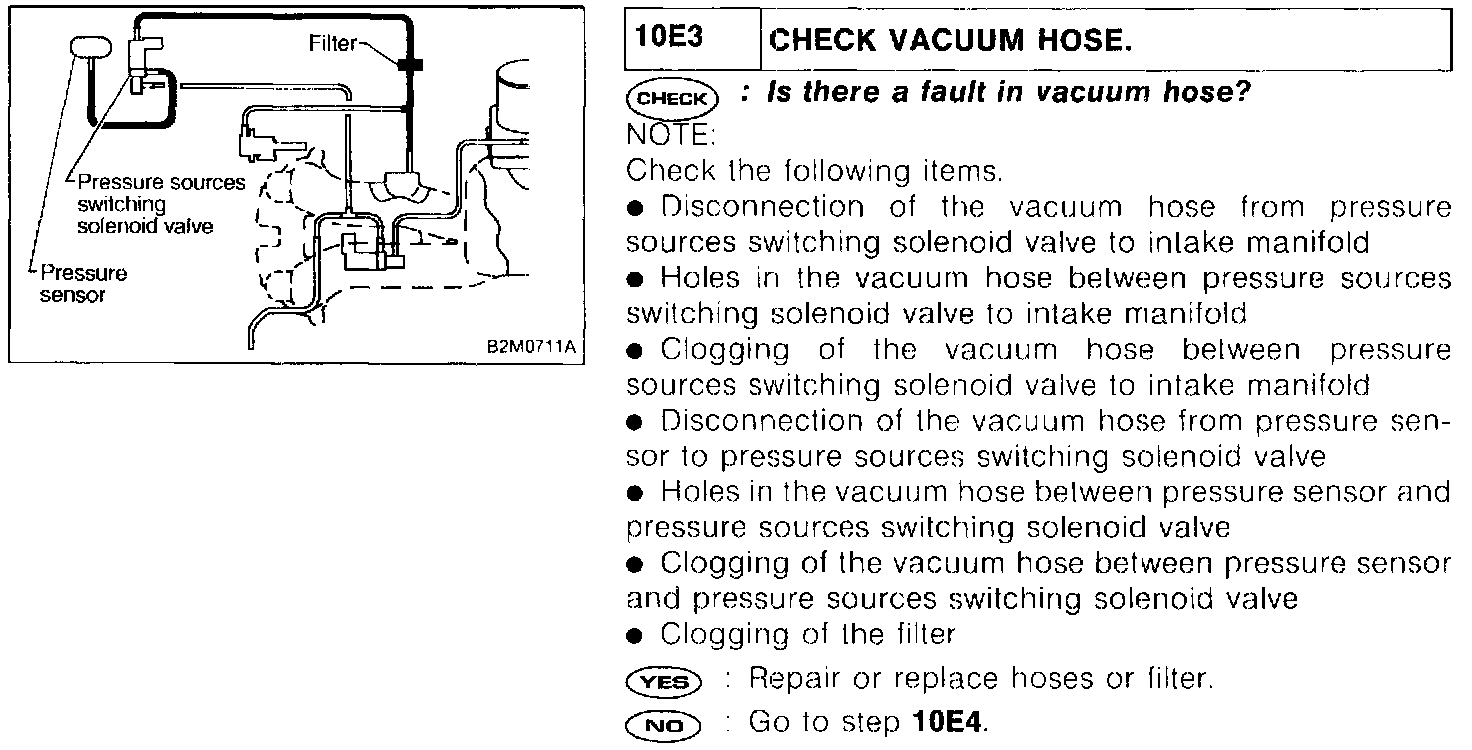

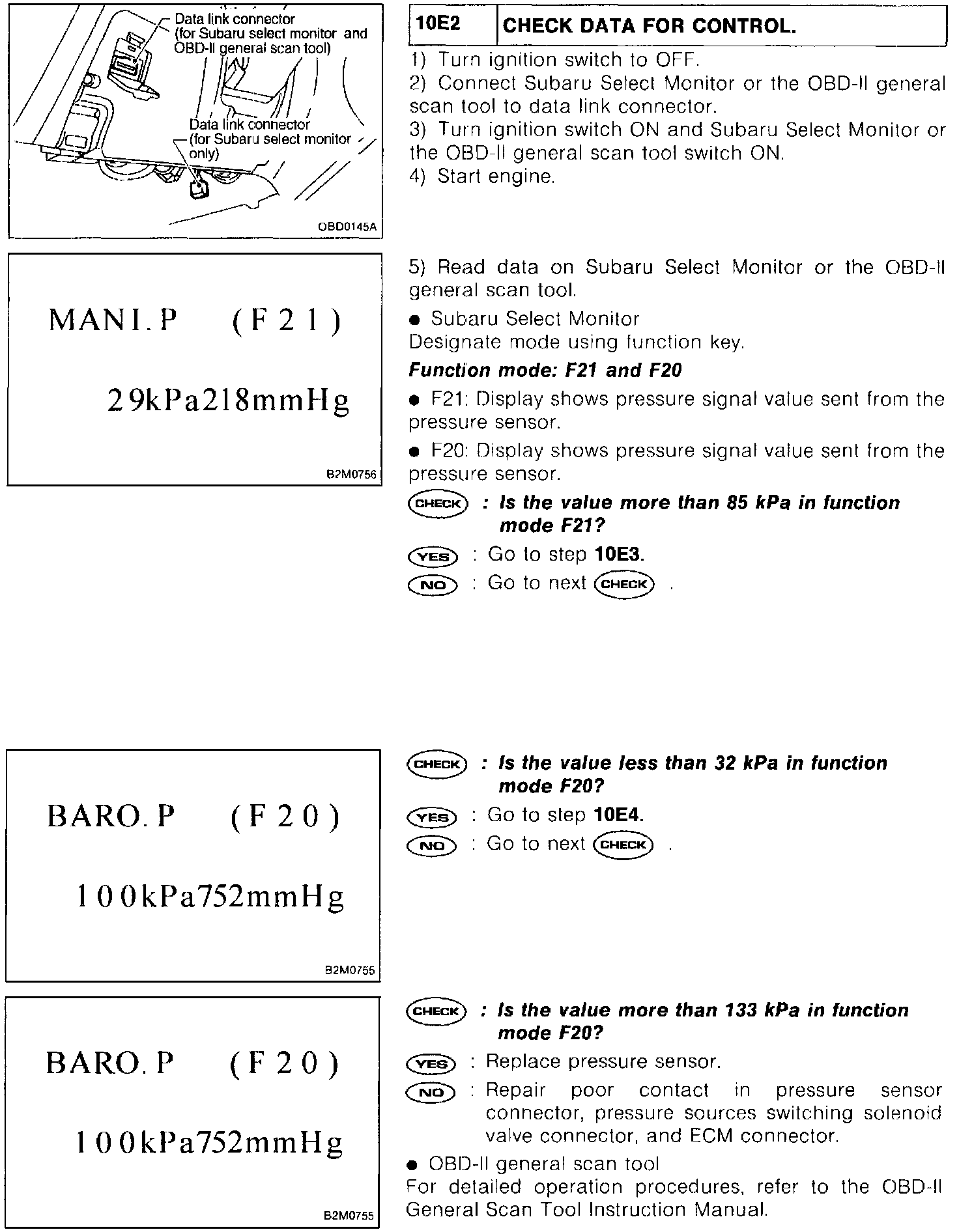

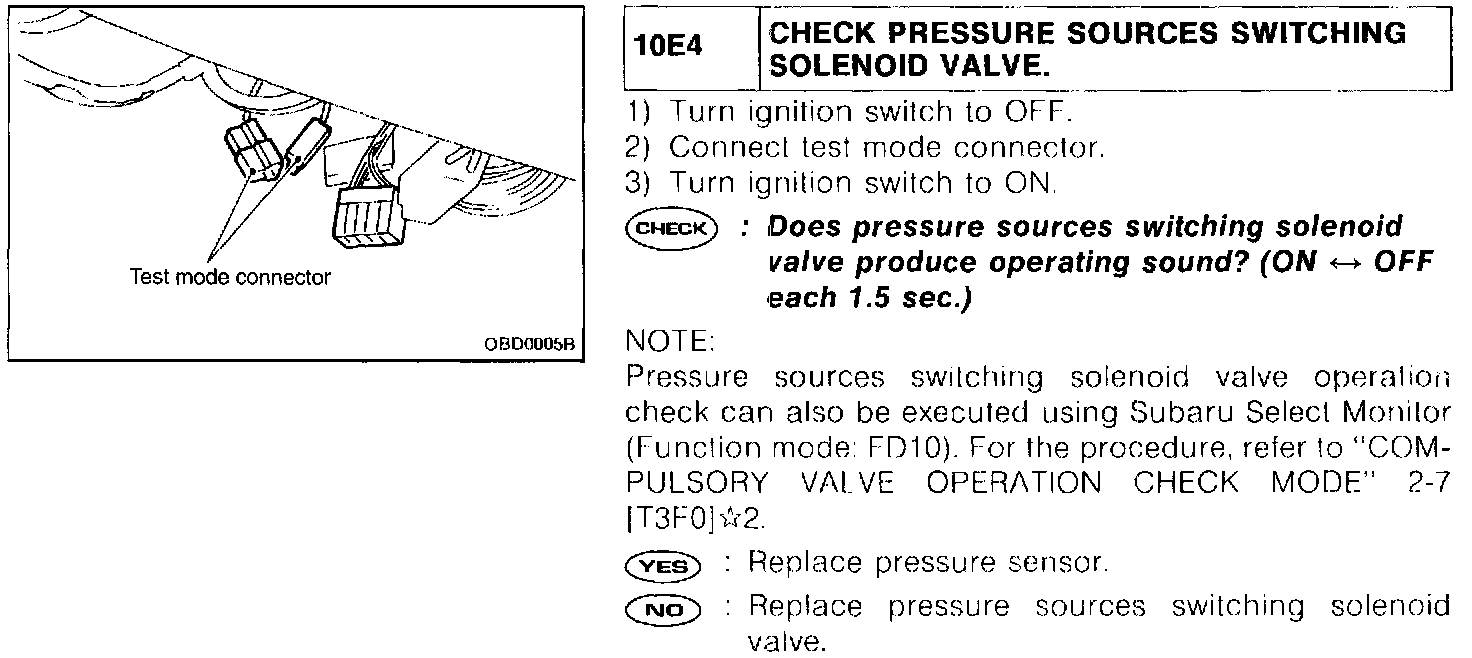

PROCEDURES
