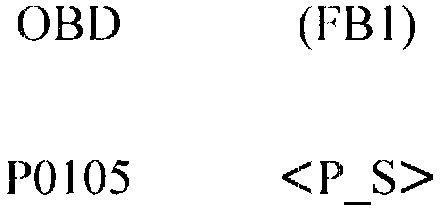

P0105

DTC P0105: PRESSURE SENSOR CIRCUIT MALFUNCTION (P - S)

DTC DETECTING CONDITION:





- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM

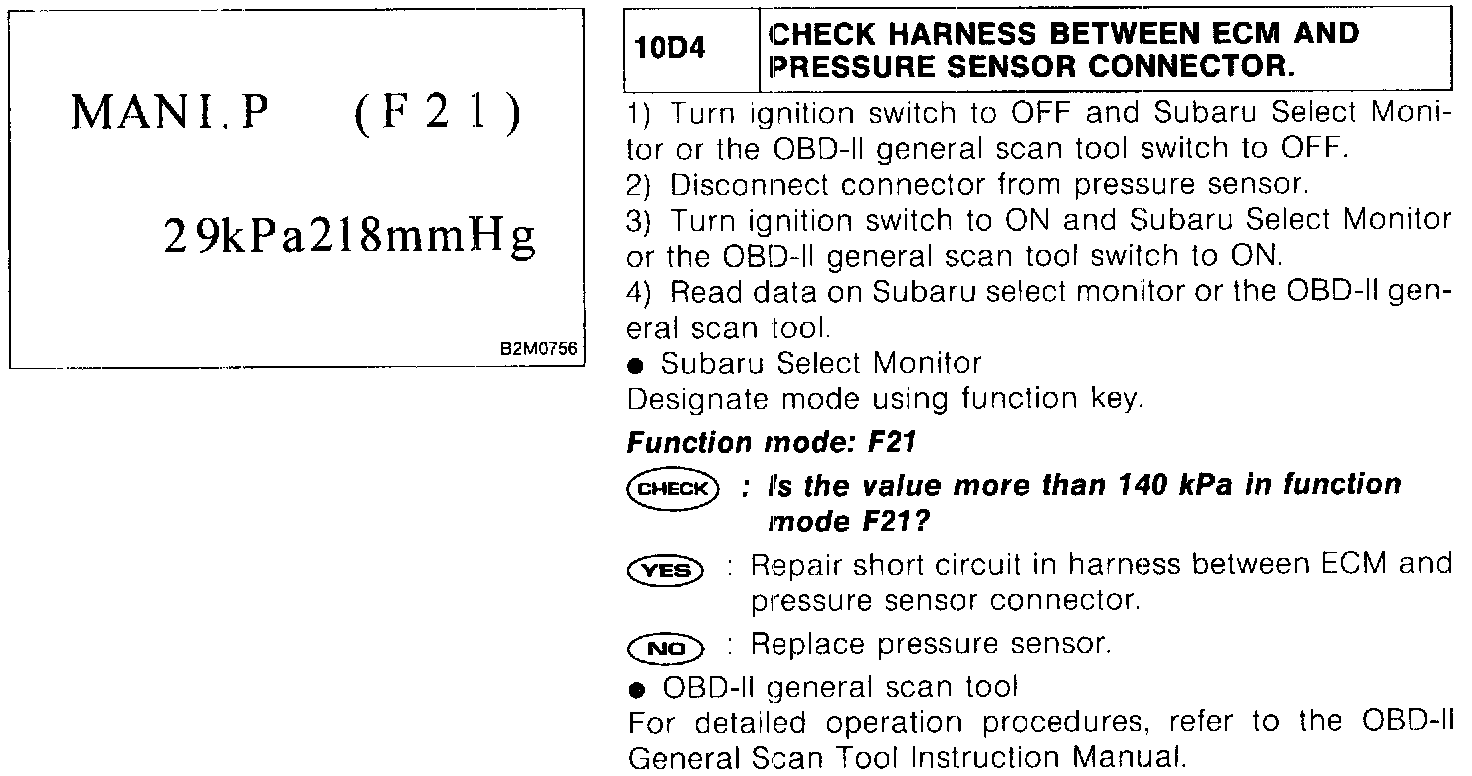

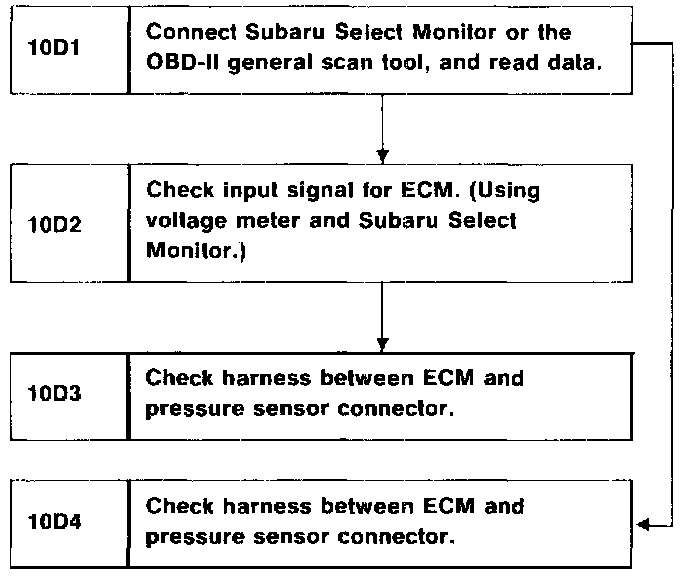

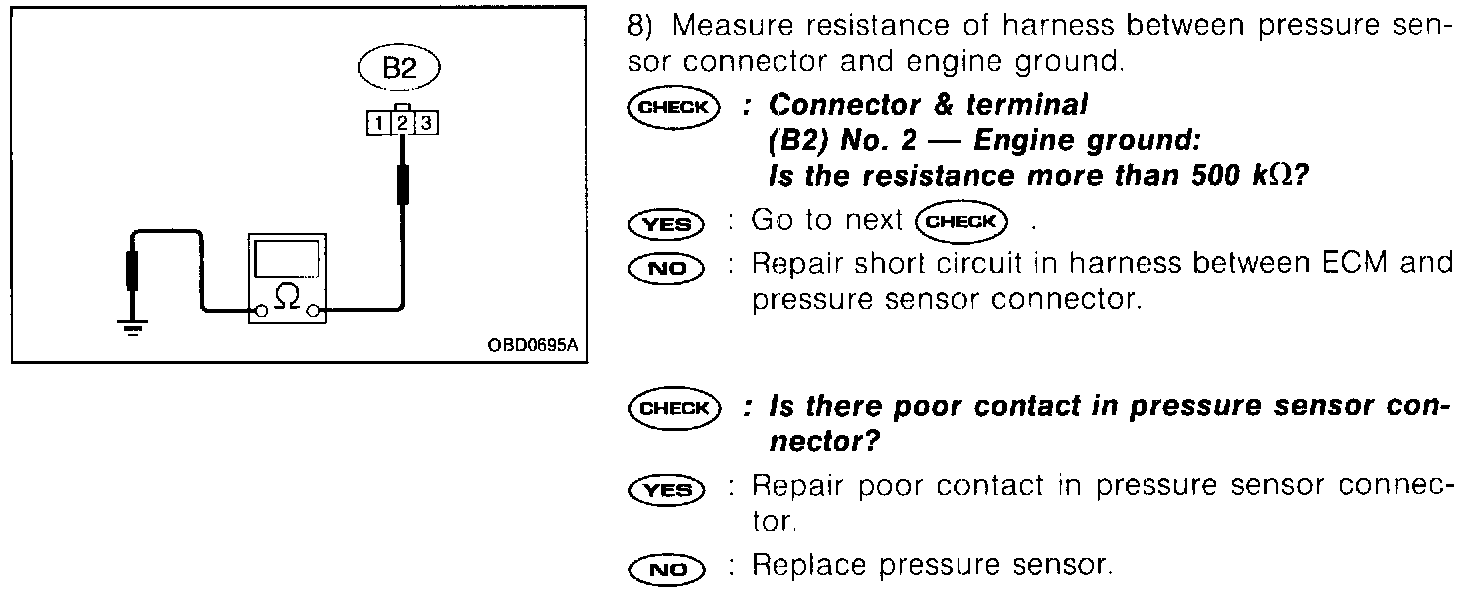

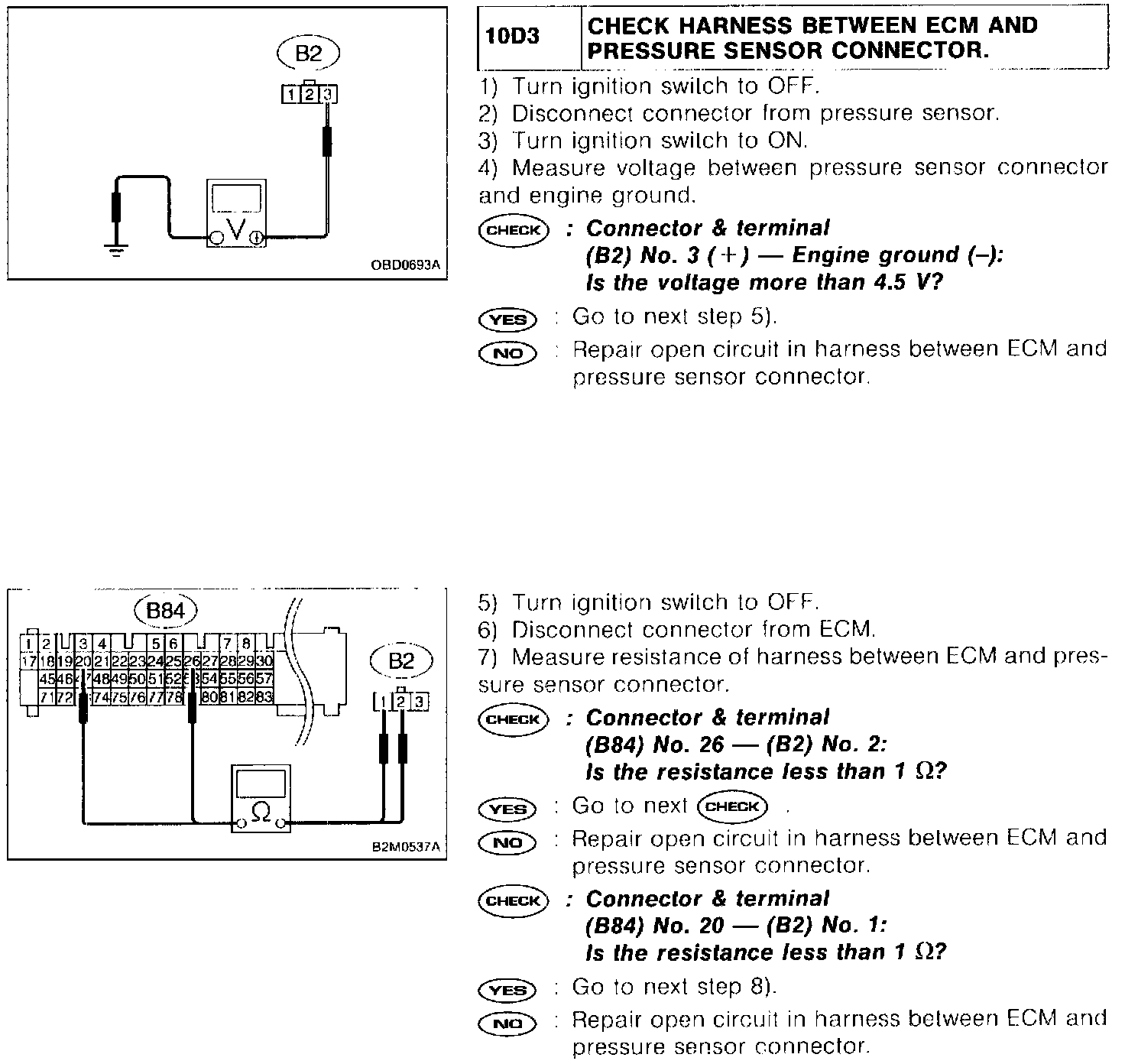

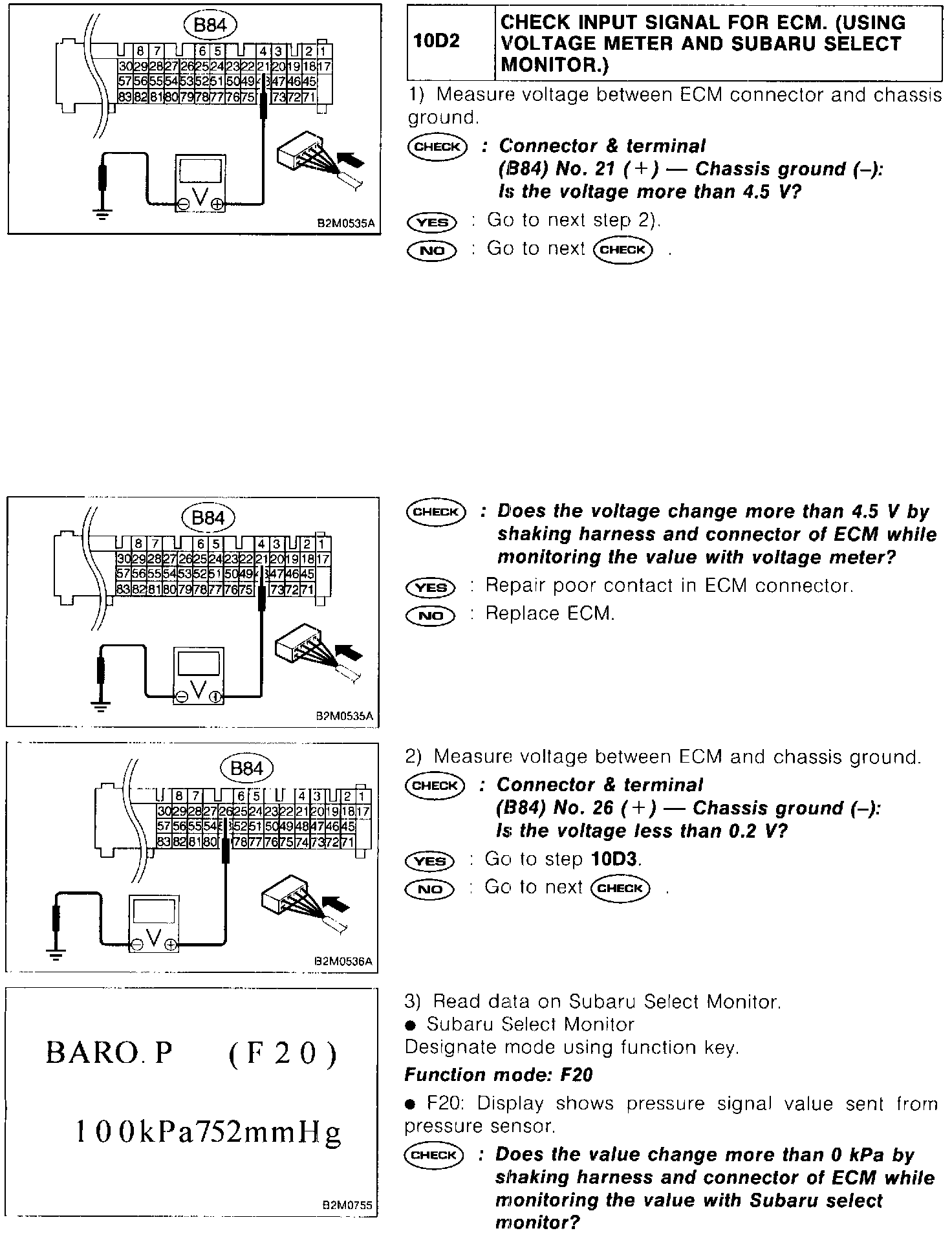

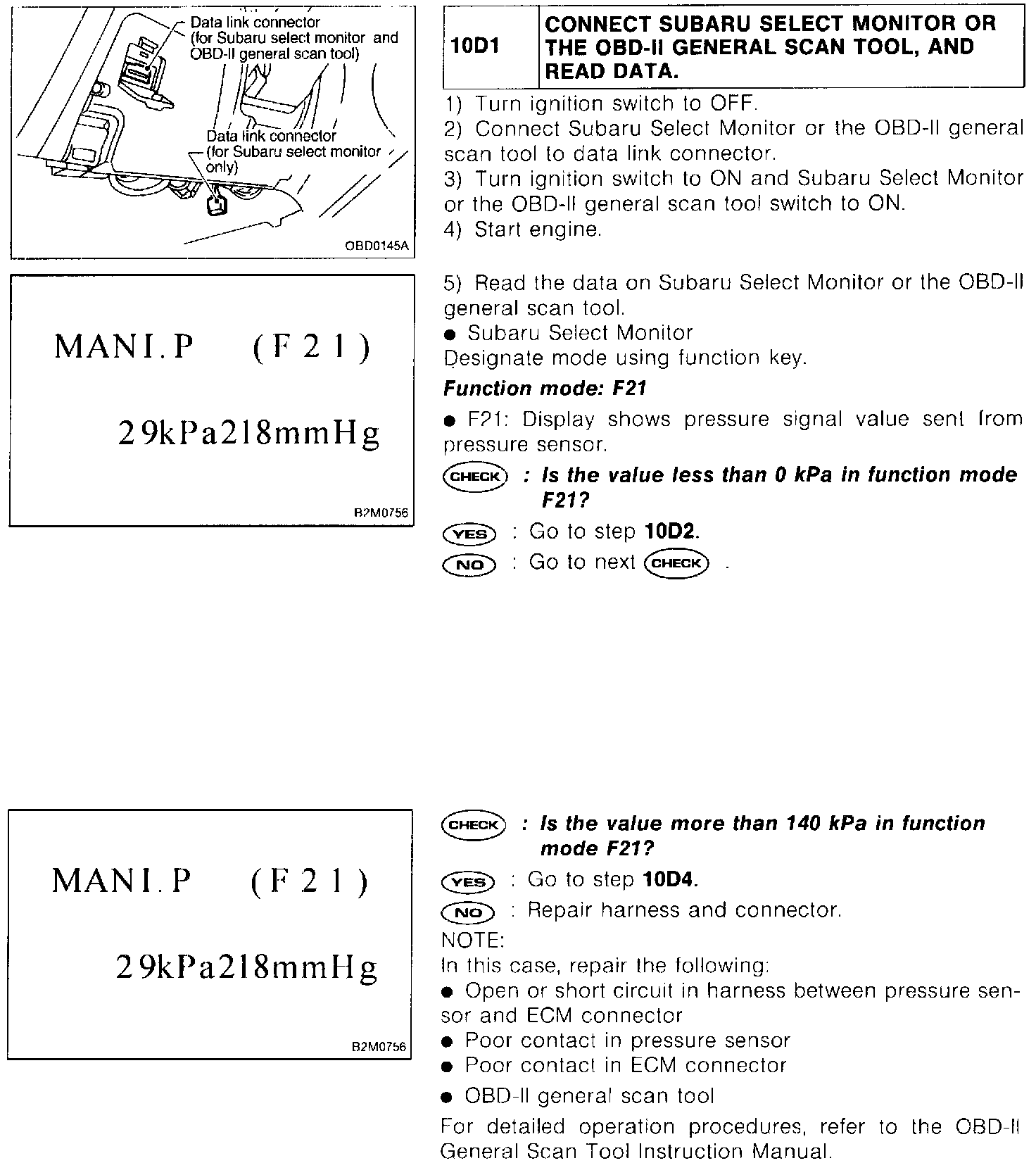

PROCEDURES
