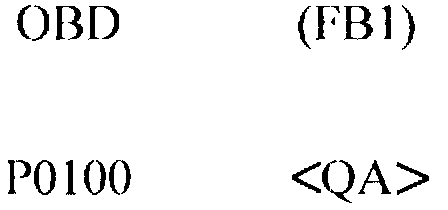

P0100

DTC P0100: MASS AIR FLOW SENSOR CIRCUIT MALFUNCTION (QA)

DTC DETECTING CONDITION:





- Immediately at fault recognition

TROUBLE SYMPTOM:
- Erroneous idling
- Engine stalls
- Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM

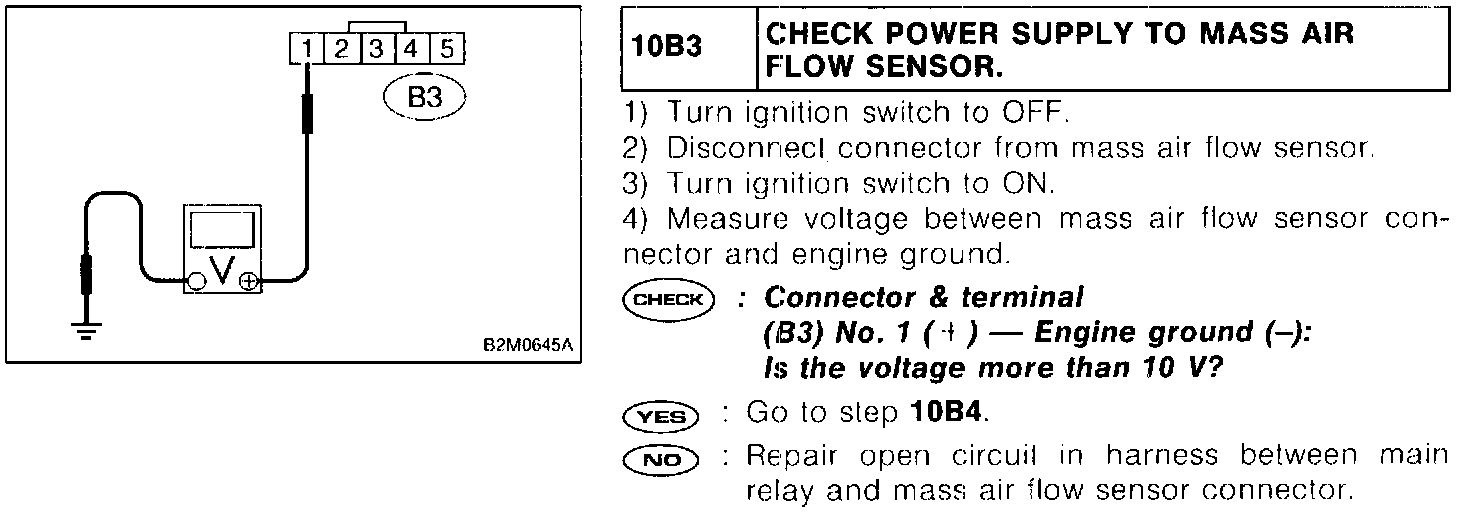

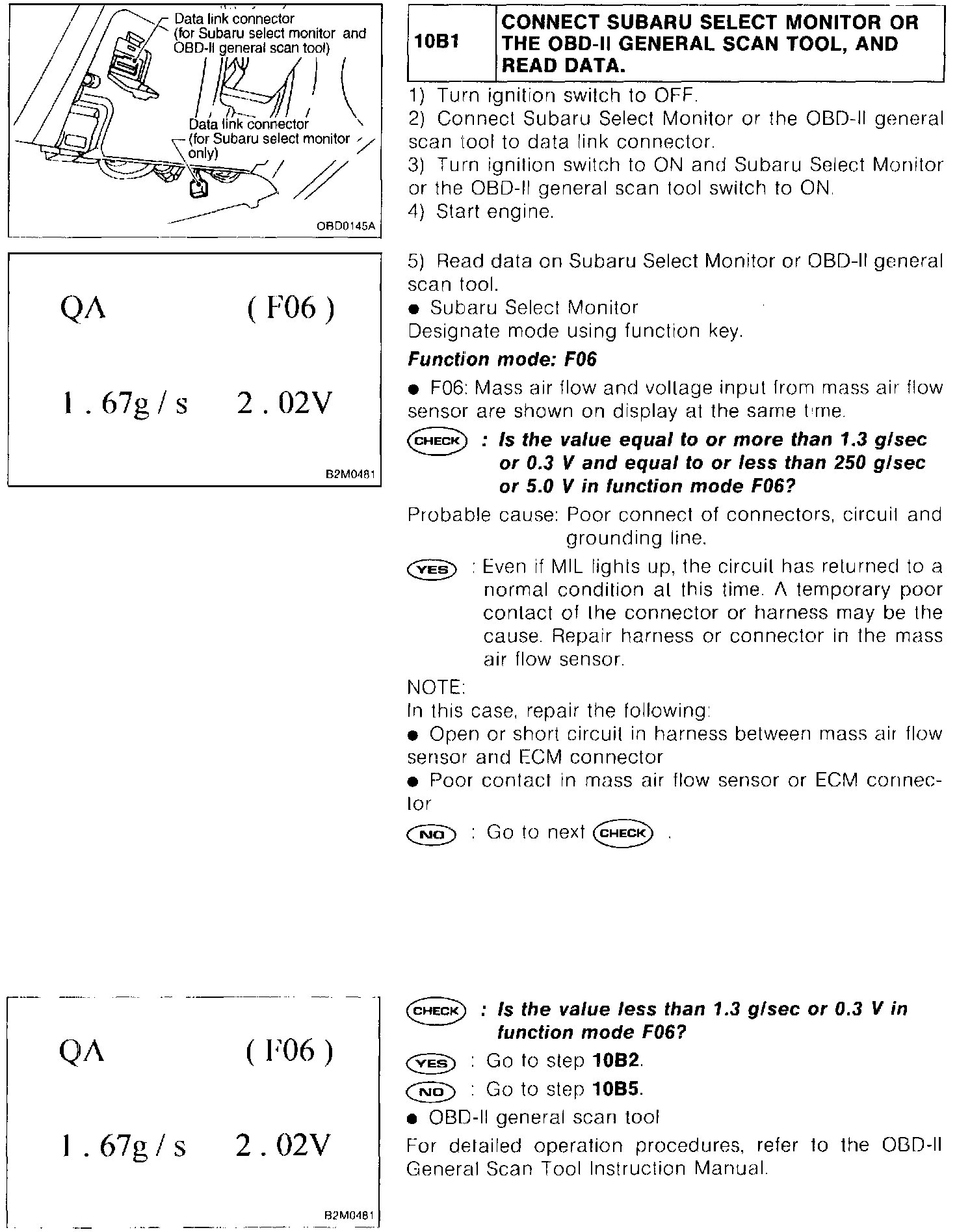

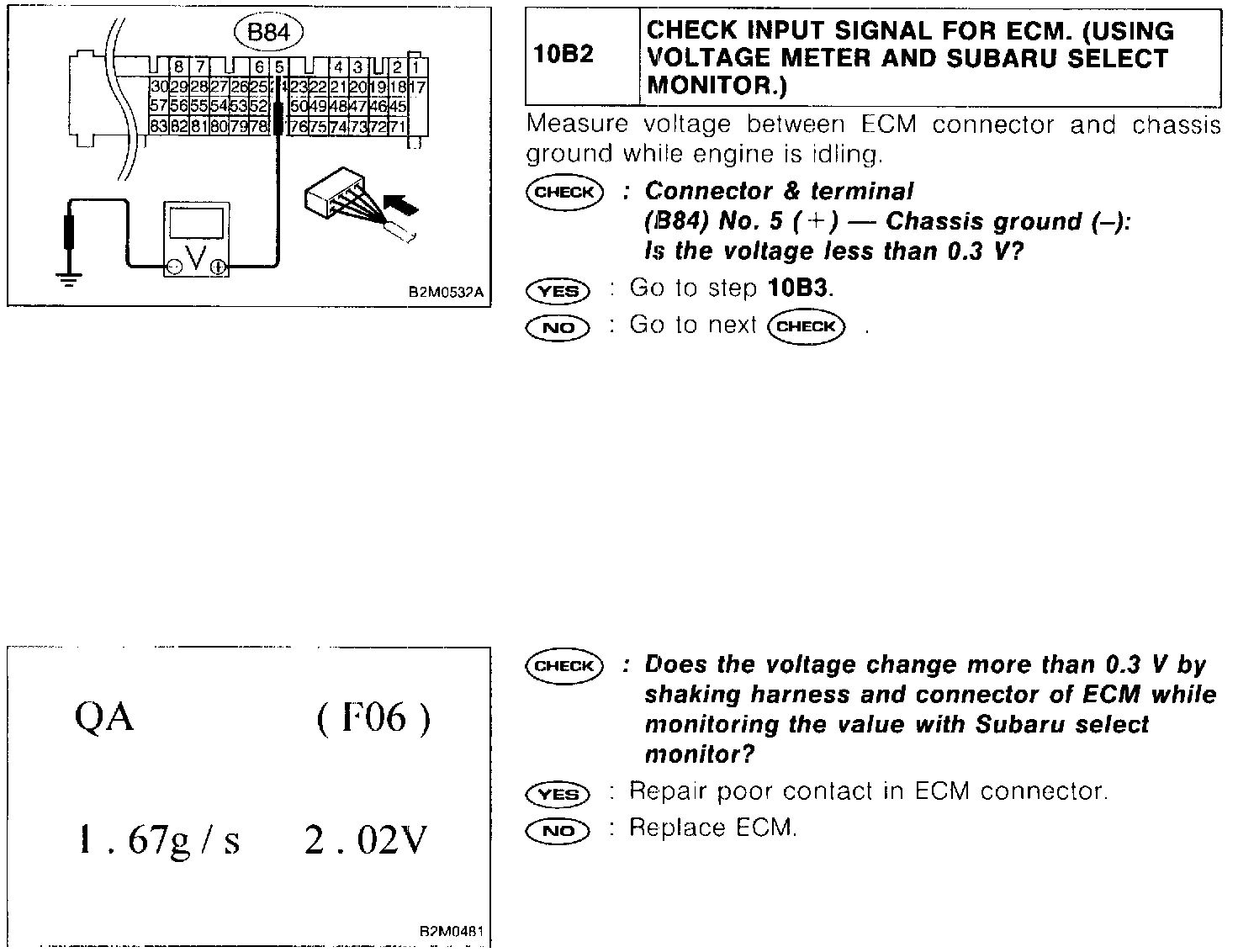

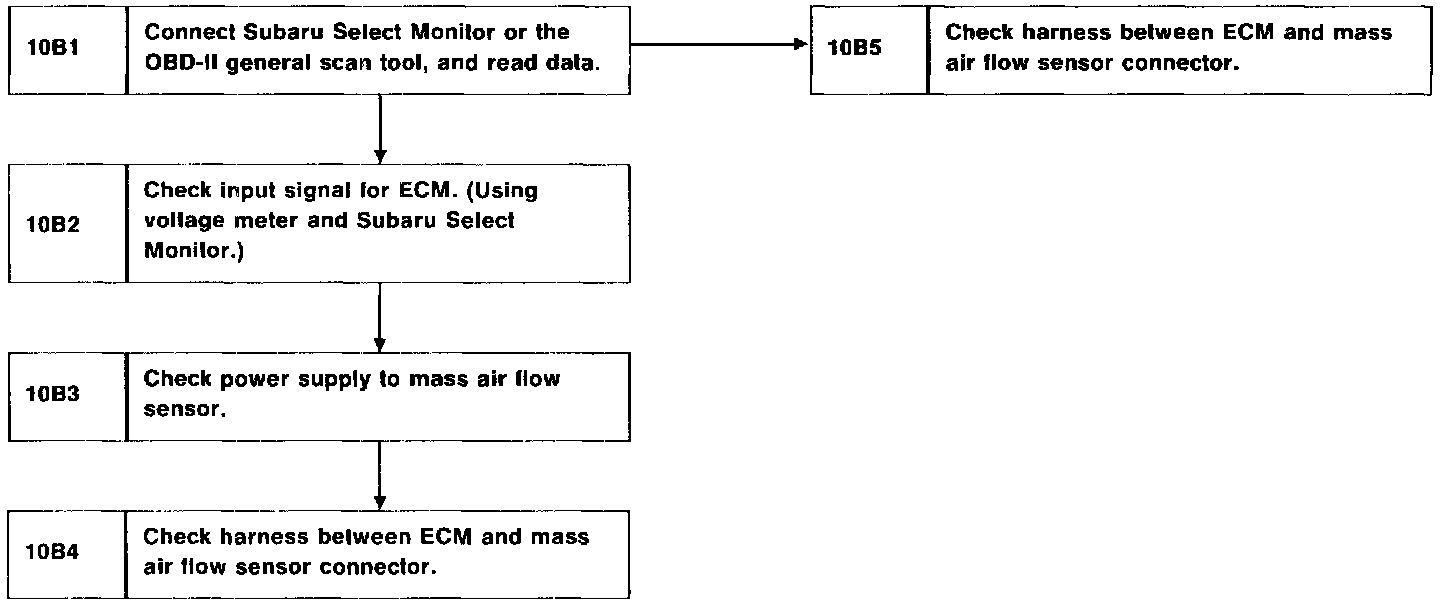

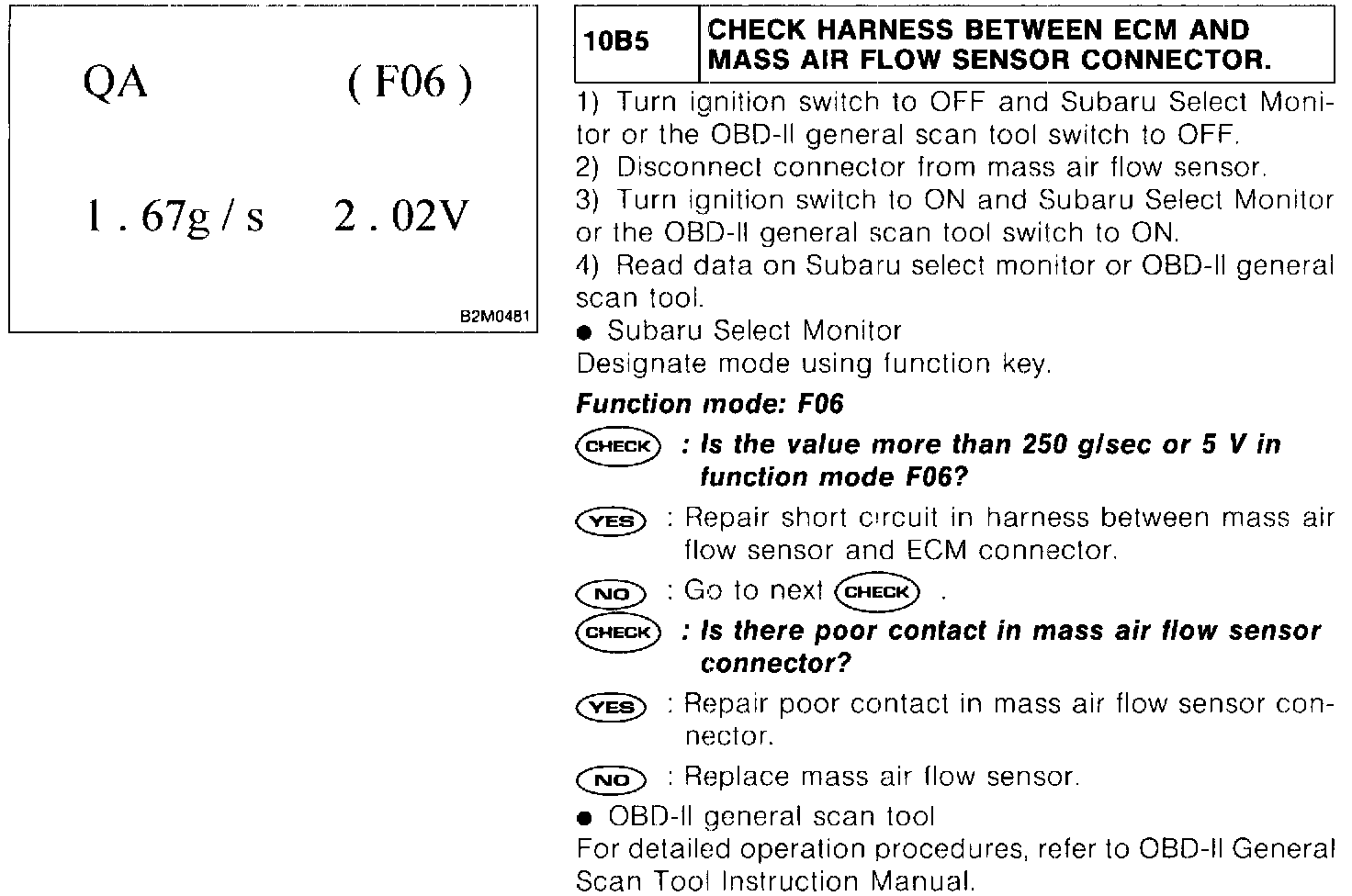

PROCEDURES
