Restraint Systems

DIAGNOSIS:
- (AB9) and (AB10) are not connected properly.
- (AB2) and (AB7) are not connected properly.
- (AB3) and (AB8) are not connected properly.
- (AB6) is not connected properly to airbag control module.

CAUTION: Before performing diagnostic on airbag system, turn Ignition switch "OFF", disconnect battery ground cable and then wait at least 20 seconds.

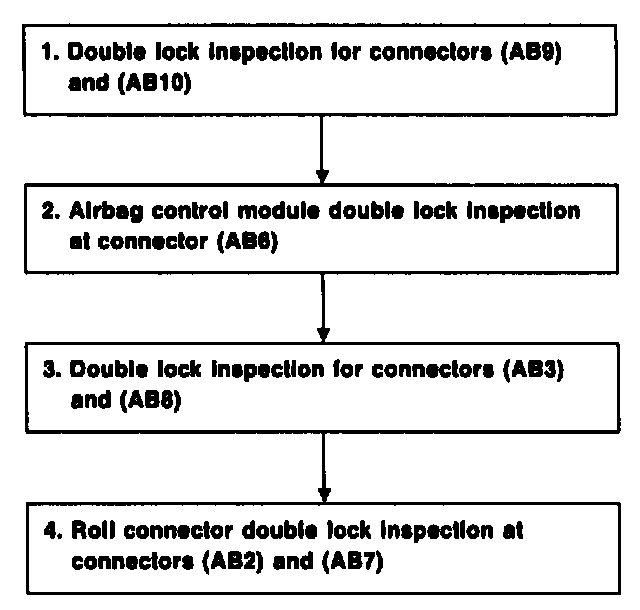

1. DOUBLE LOCK INSPECTION FOR CONNECTORS (A59) AND (AB10)

1. Remove front pillar lower trim (Passenger side).

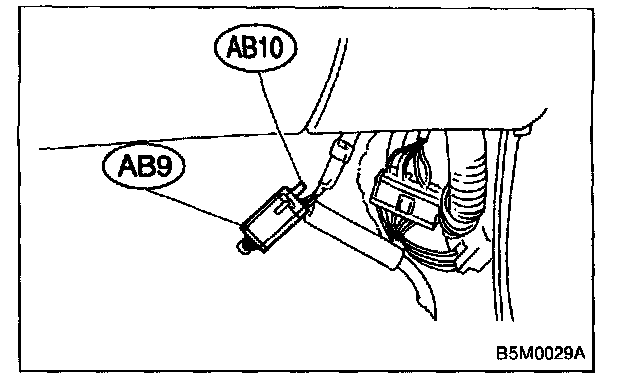

2. Check double lock of connectors (AB9) and (AB10).

CHECK: Is there poor contact in double lock of connectors (AB9) end (AB10)?

YES: Repair poor contact in double lock of connectors (AB9) and (AB10).

NO: Go to step 2.




2. AIRBAG CONTROL MODULE DOUBLE LOCK INSPECTION AT CONNECTOR (AB6)

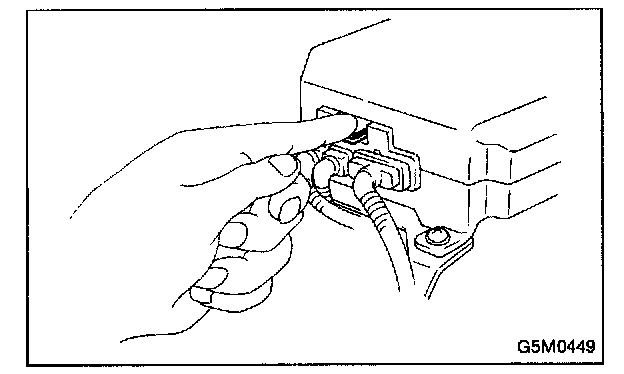

Check double lock of connector (AB6) connected to airbag control module.

CHECK: Is there poor contact In double lock of connector (AB6)?

YES: Repair poor contact in double lock of connector (AB6).

NO: Go to step 3.




3. DOUBLE LOCK INSPECTION FOR CONNECTORS (AB3) AND (AB8)

1. Remove lower cover panel.
2. Check double lock of connectors (AB3) and (AB8) below steering column,

CHECK: Is there poor contact In double lock of connectors (AB3) and (AB8)?

YES: Repair poor contact in double lock of connectors (AB3) and (AB8).

NO: Go to step 4.




4. ROLL CONNECTOR DOUBLE LOCK INSPECTION AT CONNECTORS (AB2) AND (AB7)
Remove driver side airbag module, and check double lock of connectors (AB2) and (AB7) at roll connector.

CHECK: Is there poor contact In double lock of connectors (AB2) and (AB7)?

YES: Repair poor contact in double lock of connectors (AB2) and (AB7).

NO: Replace airbag control module.
