Cruise Control System

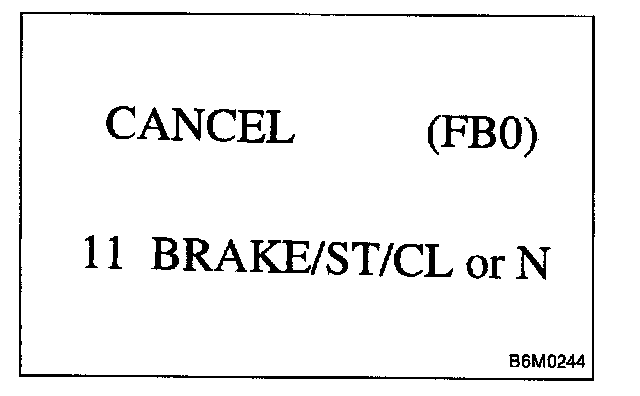

TROUBLE CODE 11 - Brake Switch, Stop Light Switch, Clutch Switch, Inhibitor Switch

DIAGNOSIS:

- Failure or disconnection of the stop light switch and brake switch.
- Failure or disconnection of the inhibitor switch. (AT)
- Failure or disconnection of the clutch switch. (MT)

Wiring Diagram:

TROUBLE SYMPTOM:
Cruise control cannot be set.

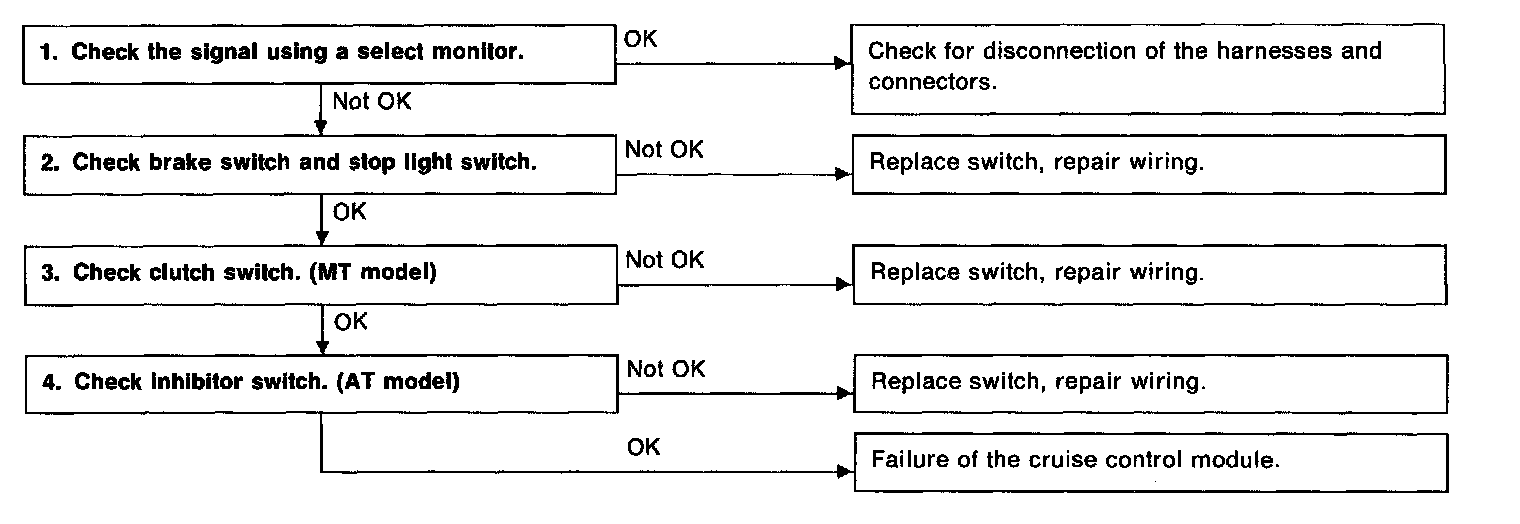

CHECK THE SIGNAL USING A SELECT MONITOR.

1. Turn ignition switch to ON.
2. Turn cruise control main switch to ON.
3. Apply parking brake securely.

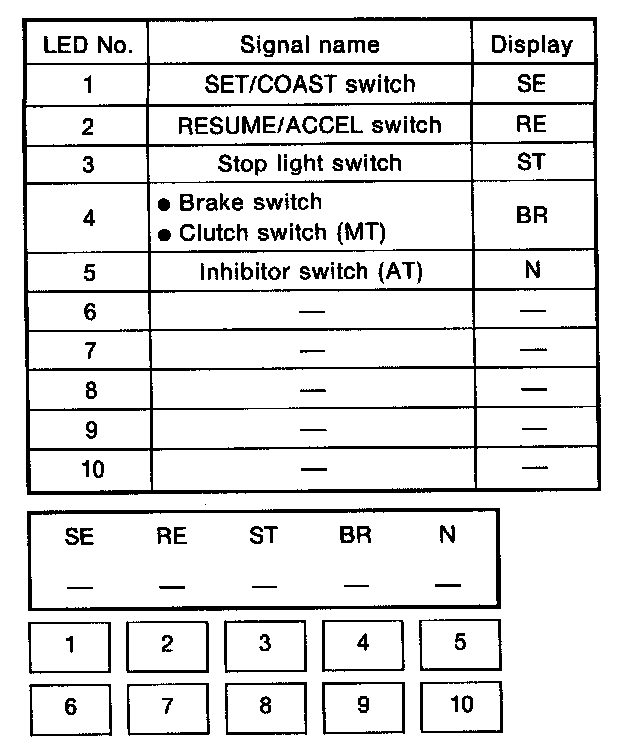

4. Set select monitor in "FA0" mode.
5. Release the clutch pedal. (MT model)




6. Depress the brake pedal and check signals for proper operation.

Stop light switch: LED No.3 goes out lights.
Brake switch: LED No.4 goes out lights.

7. Release the brake pedal.
8. Depress the clutch pedal and check signal for proper operation. (MT model)

Clutch switch: LED No.4 goes out lights.

9. Set the selector lever from D to N position and check signal for proper operation. (AT model)

Inhibitor switch: LED No.5 goes out lights.

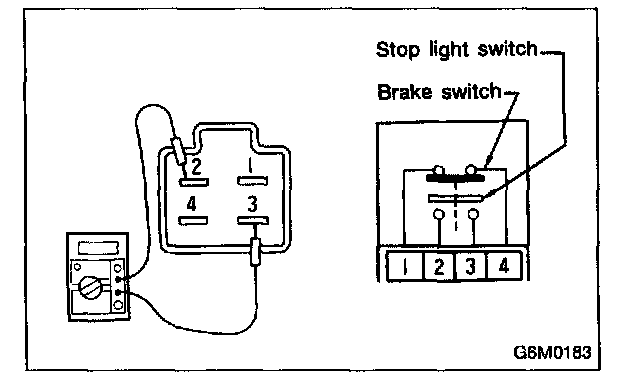

CHECK BRAKE SWITCH AND STOP LIGHT SWITCH.

1. Remove connector of stop and brake switch.

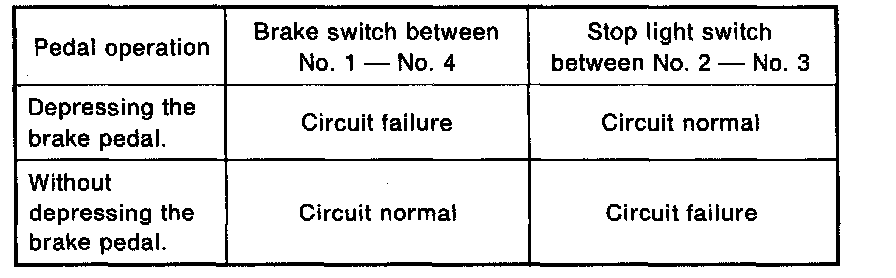

2. Check circuit between each terminal.

CHECK CLUTCH SWITCH. (MT MODEL)

1. Disconnect connector from clutch switch.




2. Check continuity of the clutch switch.

Terminals / Specified resistance:
No.1 - No.2 / 10 Ohm, max. (Without pedal depressing.)
/ 1 MOhm, min. (Pedal depressing.)

CHECK INHIBITOR SWITCH. (AT MODEL)

1. Set the selector lever to N position.
2. Disconnect connector of inhibitor switch.




3. Check continuity of the inhibitor switch.

Terminals / Specified resistance:
No.11 - No.12 / 10 Ohm, max. (Selector lever is in P or N.)
/ 1 MOhm, min. (Selector lever is not in P or N.)
