ABS With TCS

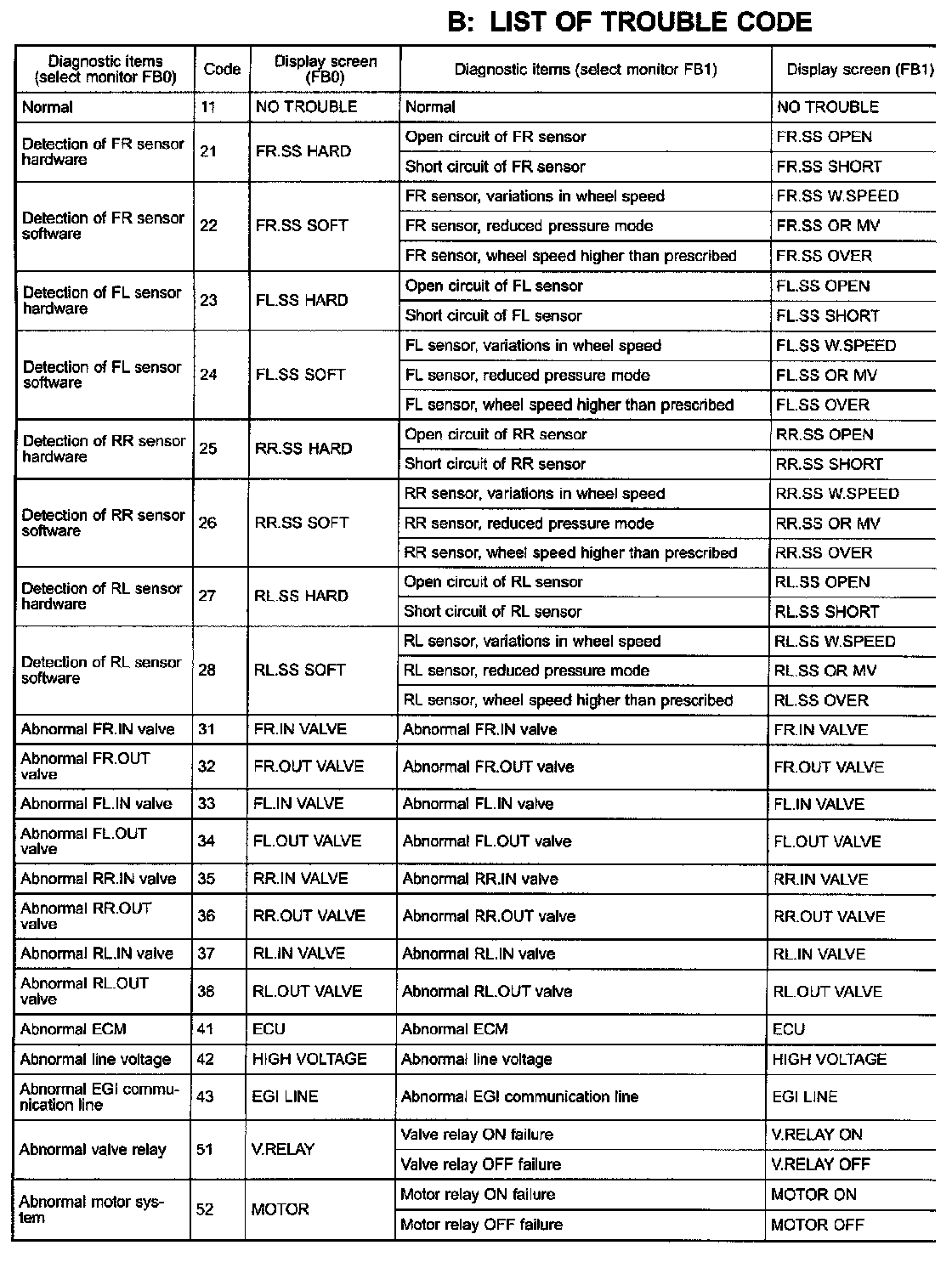

Trouble Code Descriptions




IF THE SELECT MONITOR IS USED FOR TROUBLESHOOTING, IT IS ADVISED TO FOLLOW THE PROCEDURE BELOW

1) Activate function FB0 to read the most recent trouble code and record it.
2) Activate function FB1 to read all trouble codes and record them. (If troubles occur in the wheel speed sensor, stop & brake switch, valve relay or motor system, detailed data on troubles are displayed by the FB1 function, allowing you to easily locate points where need repair.)
3) Perform troubleshooting mainly in the FB1 mode.
