Home
>>
Subaru
>>
1996
>>
Outback [Legacy] AWD F4-2.5L DOHC
>>
Parts and Labor
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Images
Images

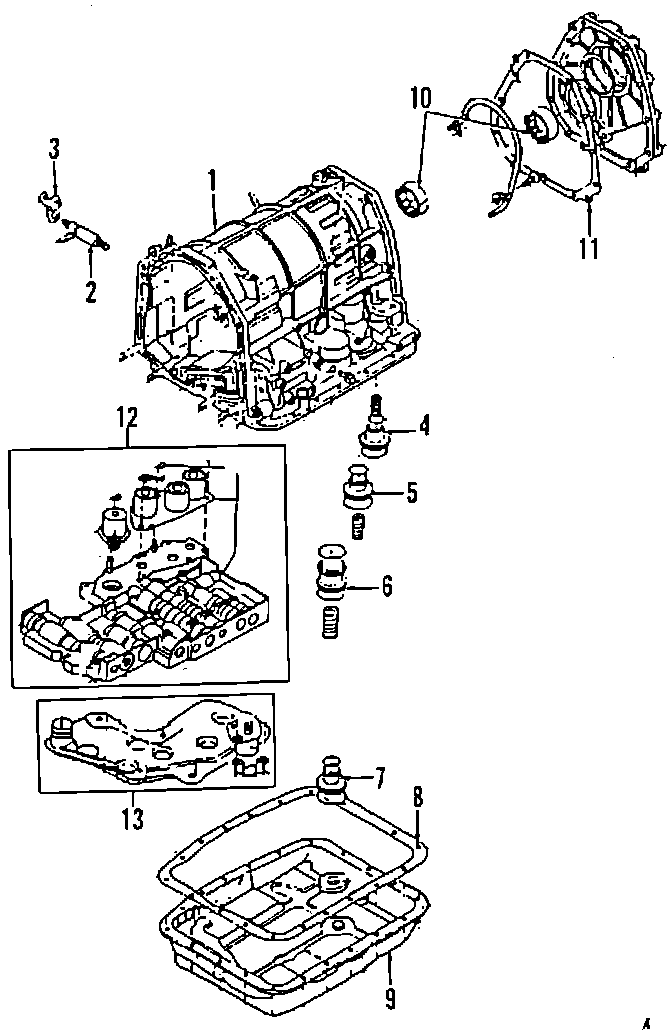

Case & Related Parts:

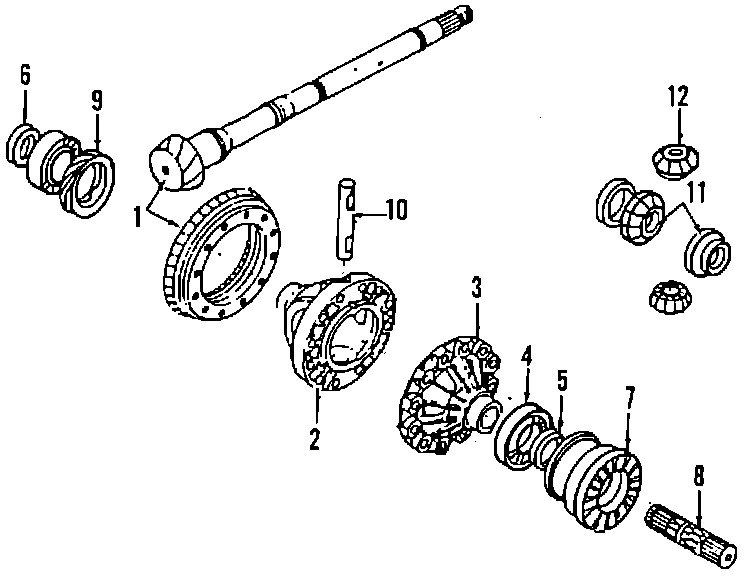

Differential:
Front Clutch:
Gears & Shafts:
Input Shaft:
Oil Pump:
Planetary Gears & Clutch:
Rear Clutch & Band Assembly:
