Home >> Subaru >> 1994 >> SVX AWD L6-3.3L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Troubleshooting Using A Subaru Select Monitor >> Mode Tests >> 12 Lock-Up Duty

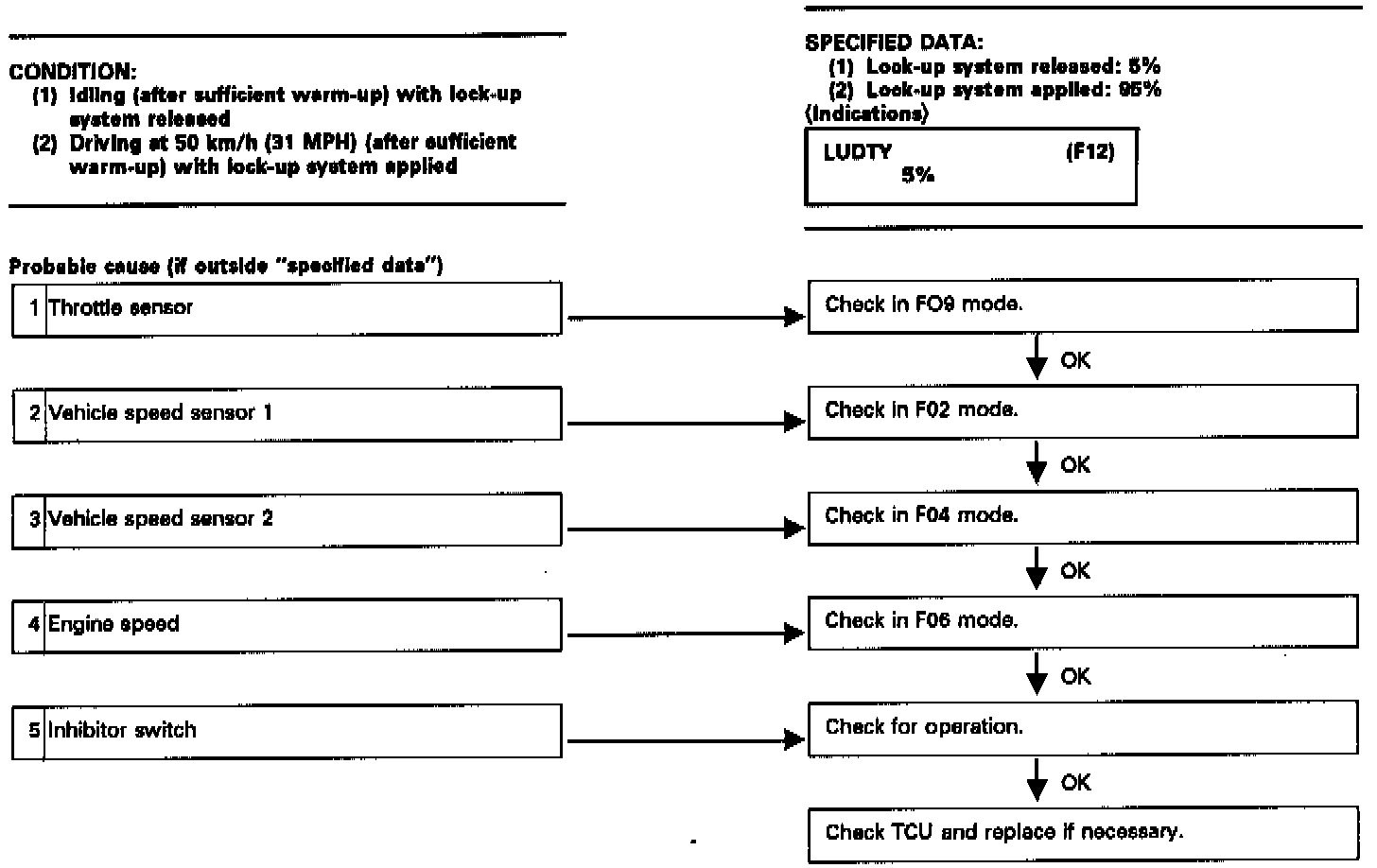

12 Lock-Up Duty

Select Monitor Mode 12 - Lock-Up Duty:
