Valve Body: Service and Repair

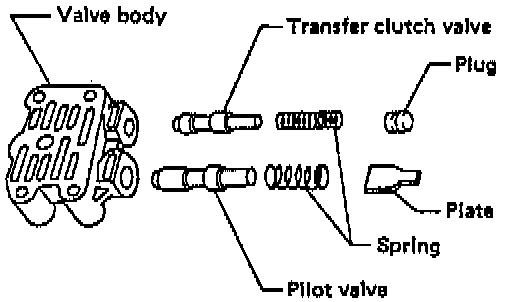

DISASSEMBLY
1. Remove the plate. Then remove the spring and pilot valve together.
2. Remove the straight pin and pry out the plug with a screwdriver. Then extract the spring and transfer clutch valve together.
- Be careful not to damage the valve and valve body.

INSPECTION
1. Check each component for harmful cuts, damage, or other faults.

ASSEMBLY
1. To assemble, reverse the removal sequence. Make sure the valve slides smoothly after assembling.
