One-Way Clutch

DISASSEMBLY
Remove the snap ring. Then remove the one-way clutch (3-4)

INSPECTION
Check the sliding surface and one-way clutch (3-4) for any harmful cuts, damage, or other faults.





ASSEMBLY
1. Assemble the one-way clutch (3-4), and secure with the snap ring. Pay attention to the orientation of the one-way clutch (3-4).

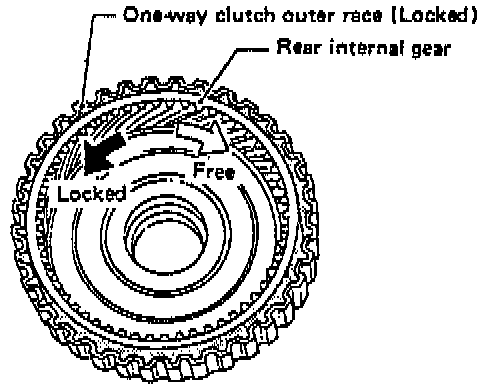

2. Assemble the rear internal gear, and secure the outer race. Make sure that the internal gear is locked in the clockwise direction, and free to rotate in the counter clockwise direction.
