Power Steering Fluid Cooler: Service and Repair

REMOVAL
1. Disconnect battery earth terminal.
2. Drain approximately 0.3 liters (0.3 US qt.) of fluid from oil tank.
3. Remove belt cover.
4. Remove radiator bracket.
5. Disconnect radiator fan connector.
6. Remove main and sub radiator fans.
7. Separate canister from bracket and leave as it is.
8. Raise vehicle.
9. Remove under cover.

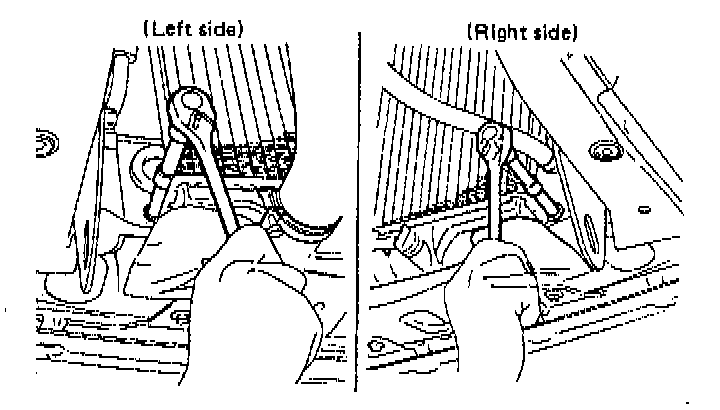

10. Remove bolts securing oil cooler with condenser from both sides.

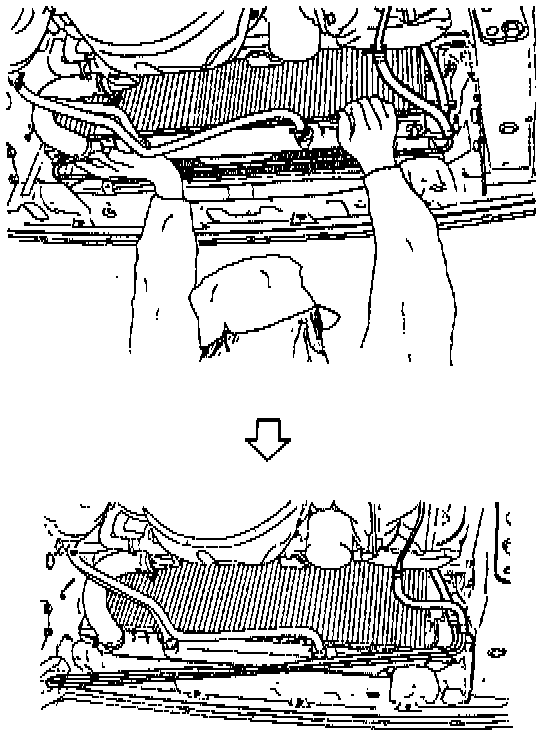

11. Slightly lift and move radiator assy and draw out oil cooler.





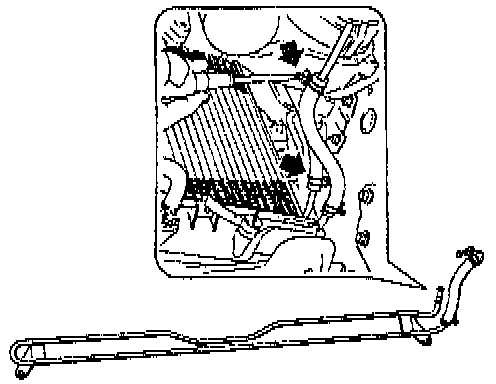

12. Disconnect hoses A and B at points indicated in the figure and remove oil cooler.

NOTE: Do not allow fluid from the hose end to come into contact with pulley belt. To prevent foreign matter from entering the hose and pipe, cover the open ends with a clean cloth.

INSPECTION
Check all disassembled parts for wear, damage or other abnormalities. Repair or replace faulty parts as required.

ASSEMBLE
Assembly is in the reverse order of removal.
