A2 LED 7, Manual Switch
A2 LED 7, Manual Switch

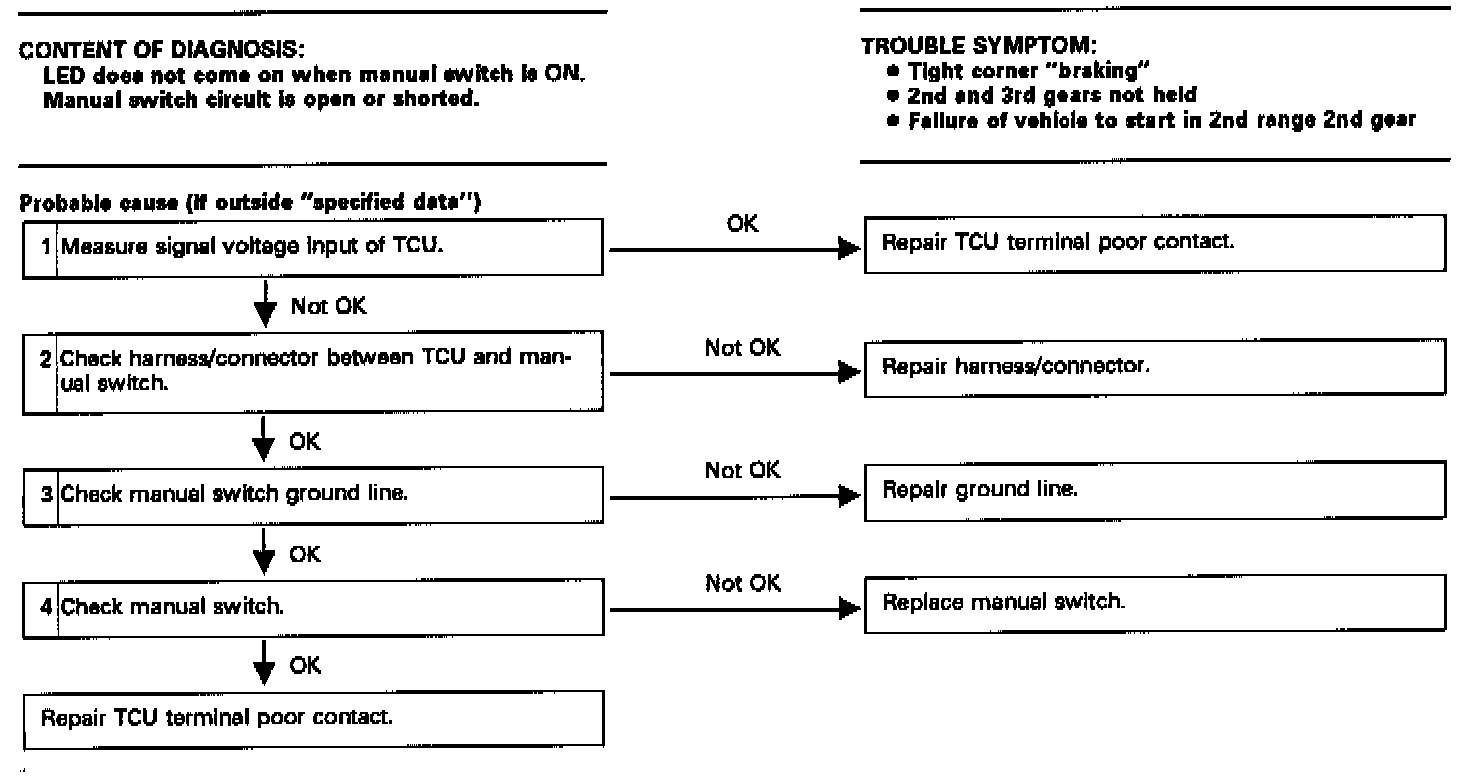

Select Monitor Mode A2 - LED No. 7, Manual Switch:

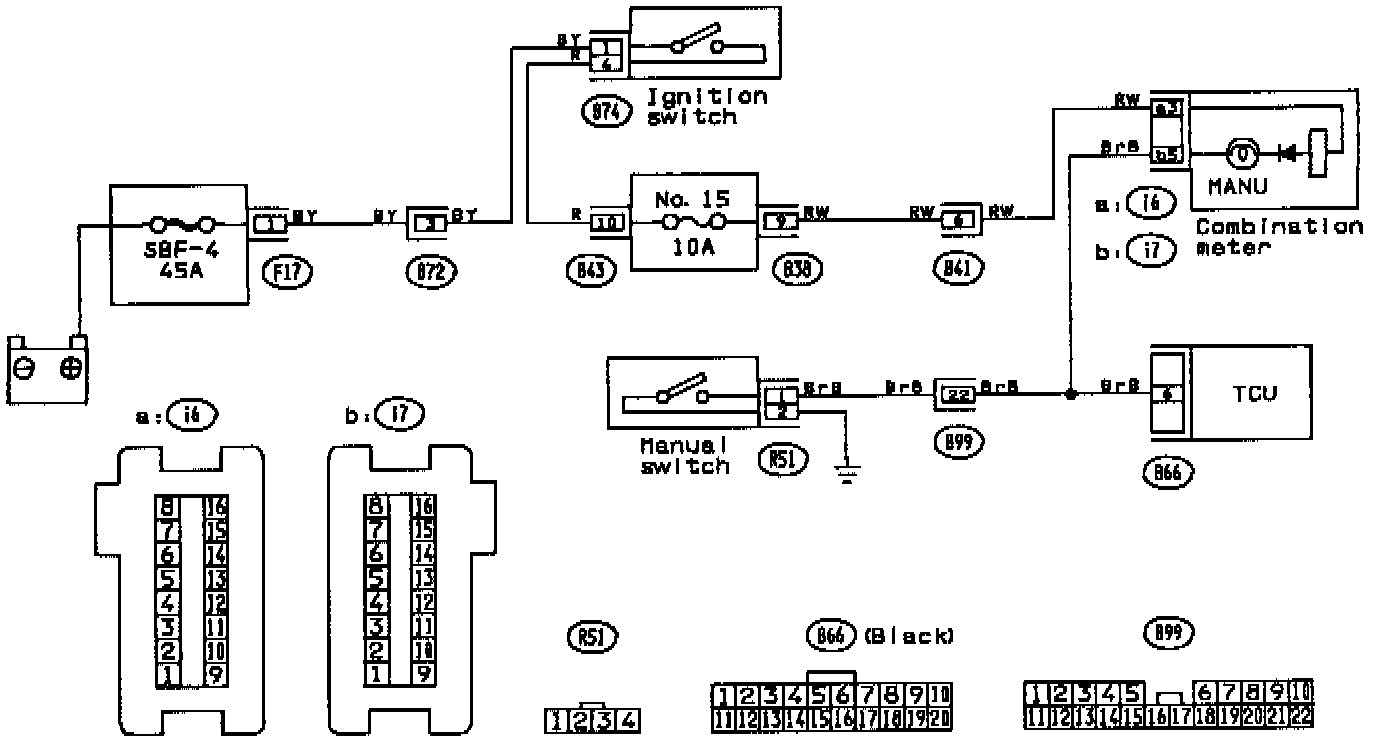

LED No. 7, Manual Switch Circuit:
