Home >> Subaru >> 1994 >> SVX AWD L6-3.3L DOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Troubleshooting Using A Subaru Select Monitor >> Mode Tests >> A0 Switch 1

A0 Switch 1

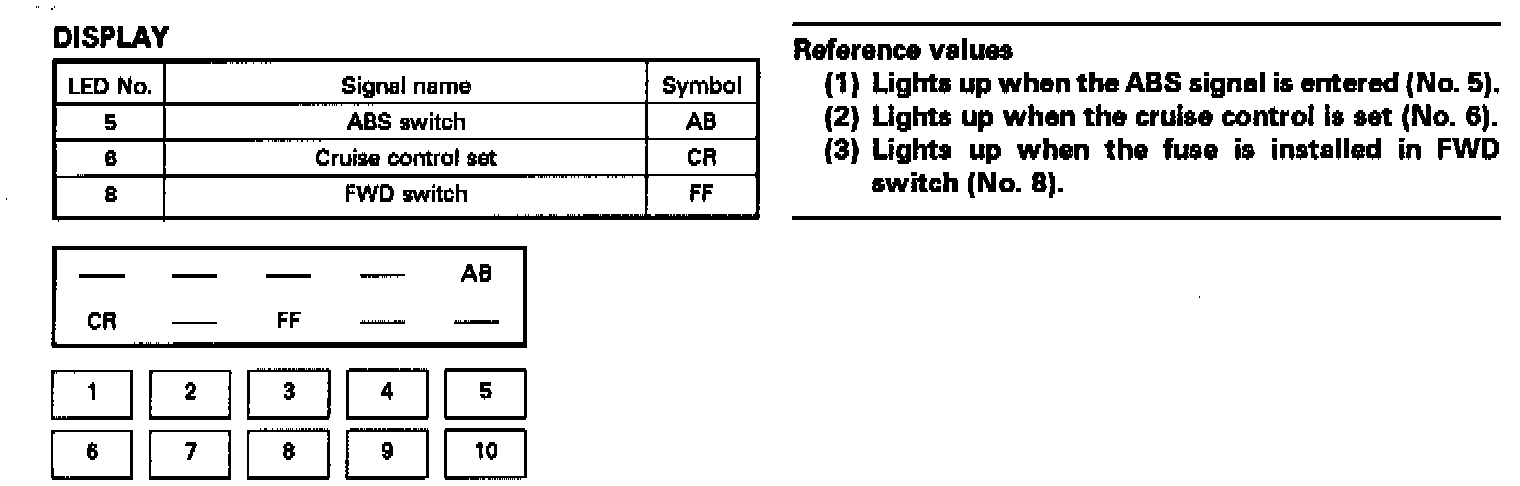

Select Monitor Mode AO - Switch 1:

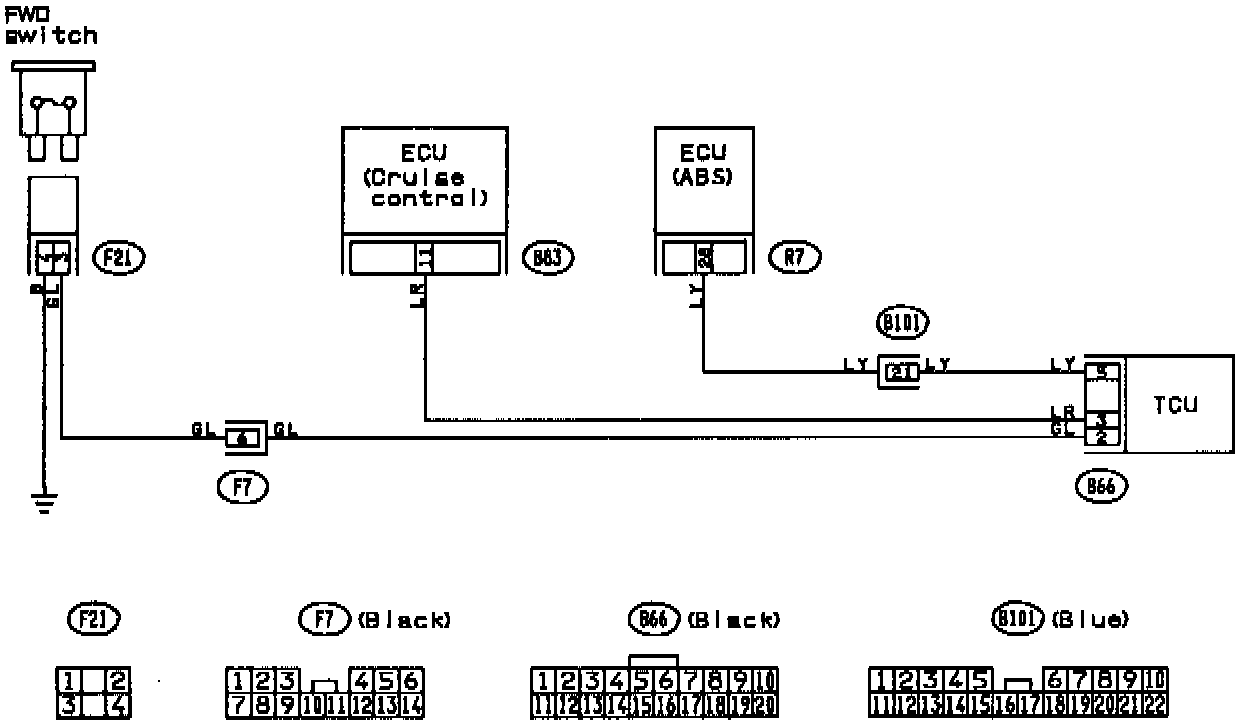

Select Monitor Mode AO - Switch 1 Circuit:
