Home >> Subaru >> 1994 >> SVX AWD L6-3.3L DOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Troubleshooting Using A Subaru Select Monitor >> Mode Tests >> 02 Vehicle Speed Sensor 1

02 Vehicle Speed Sensor 1

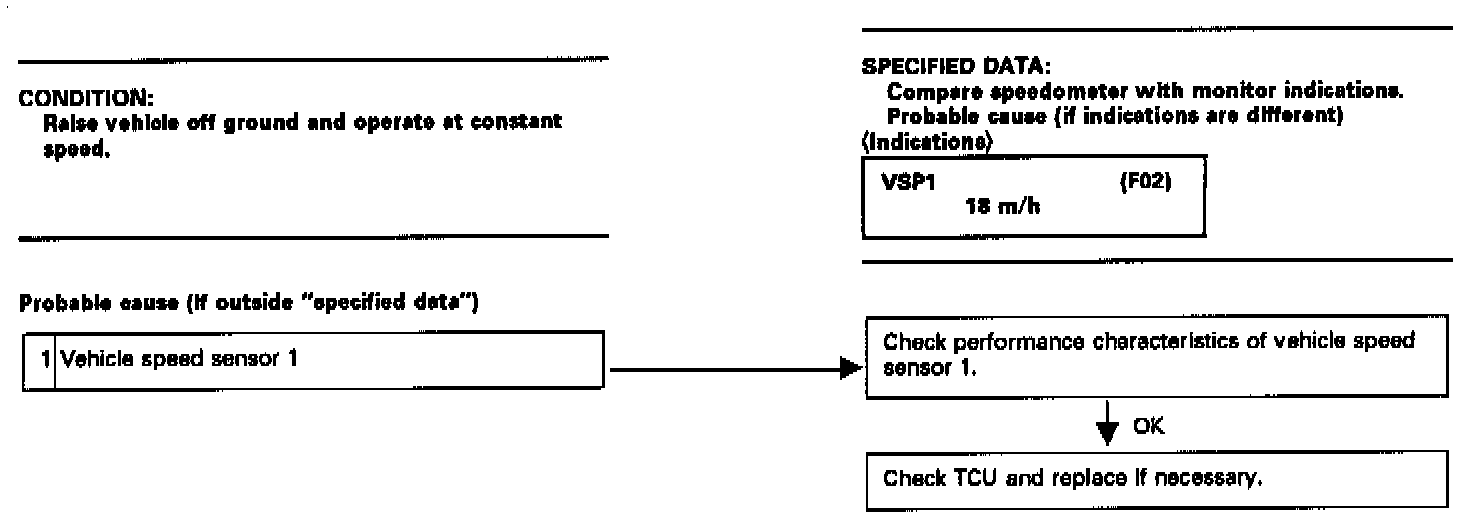

Select Monitor Mode 02 - Vehicle Speed Sensor 1:
