Evaporative Emission Control Canister: Service and Repair

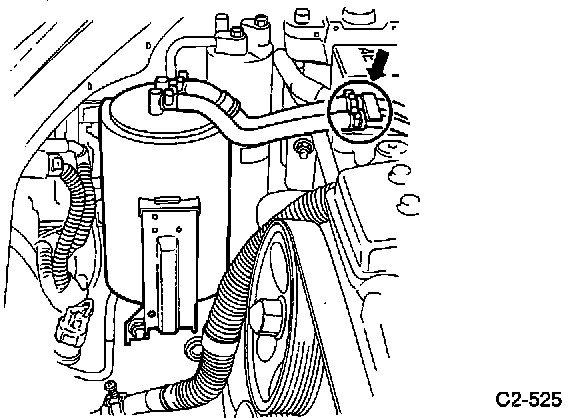

Canister:
1.
Disconnect hoses.
2.
Pull up to remove canister.
3.
Install in reverse order.
