Home >> Subaru >> 1994 >> SVX AWD L6-3.3L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Reading and Clearing Diagnostic Trouble Codes >> Reading Diagnostic Trouble Codes >> With Manufacturer's Scan Tool >> Output Modes of Select Monitor >> On/Off Signals

On/Off Signals

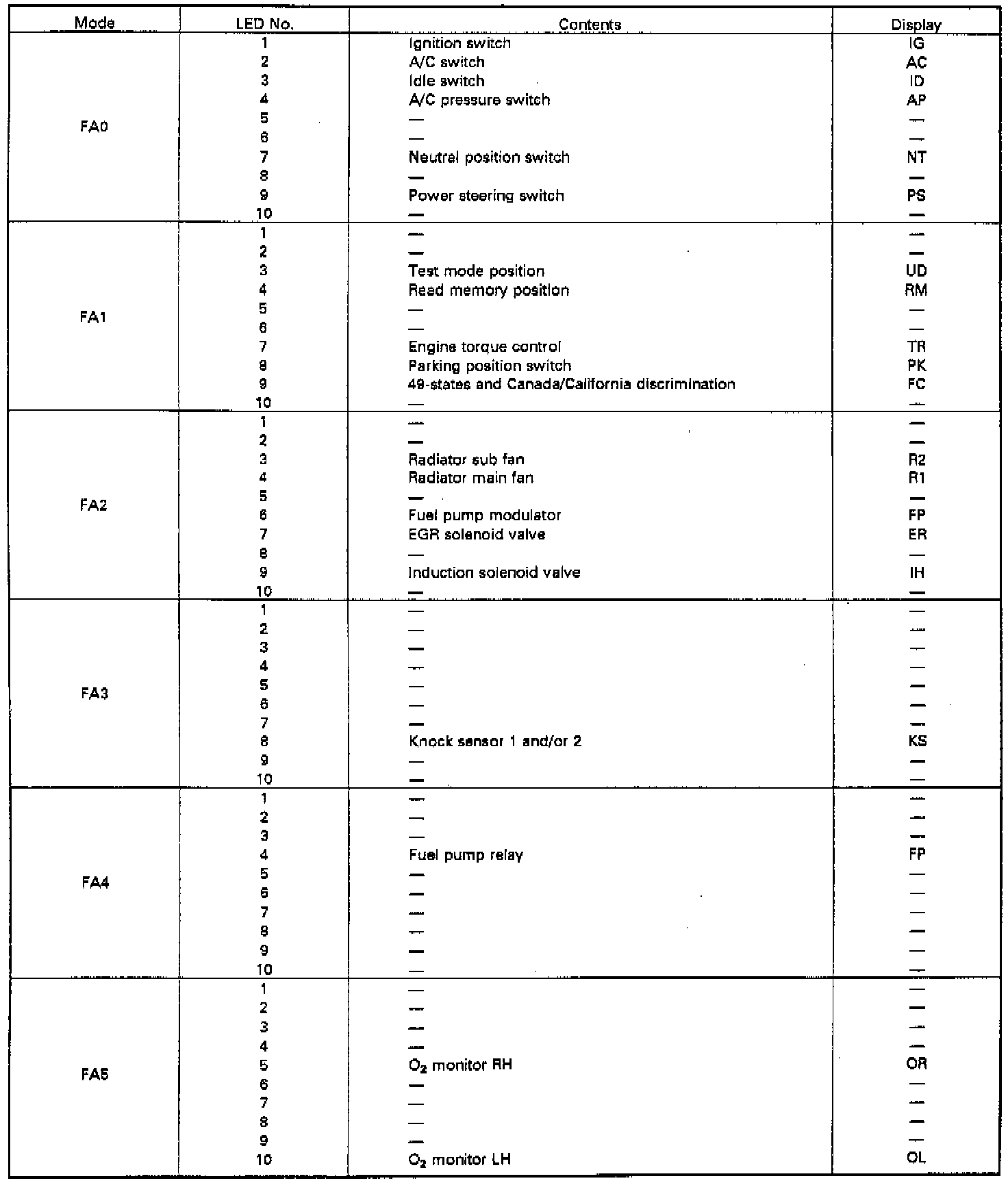

Select Monitor - On/Off Signals:
