Home >> Subaru >> 1994 >> SVX AWD L6-3.3L DOHC >> Repair and Diagnosis >> Diagrams >> Harness >> Rear End

Rear End

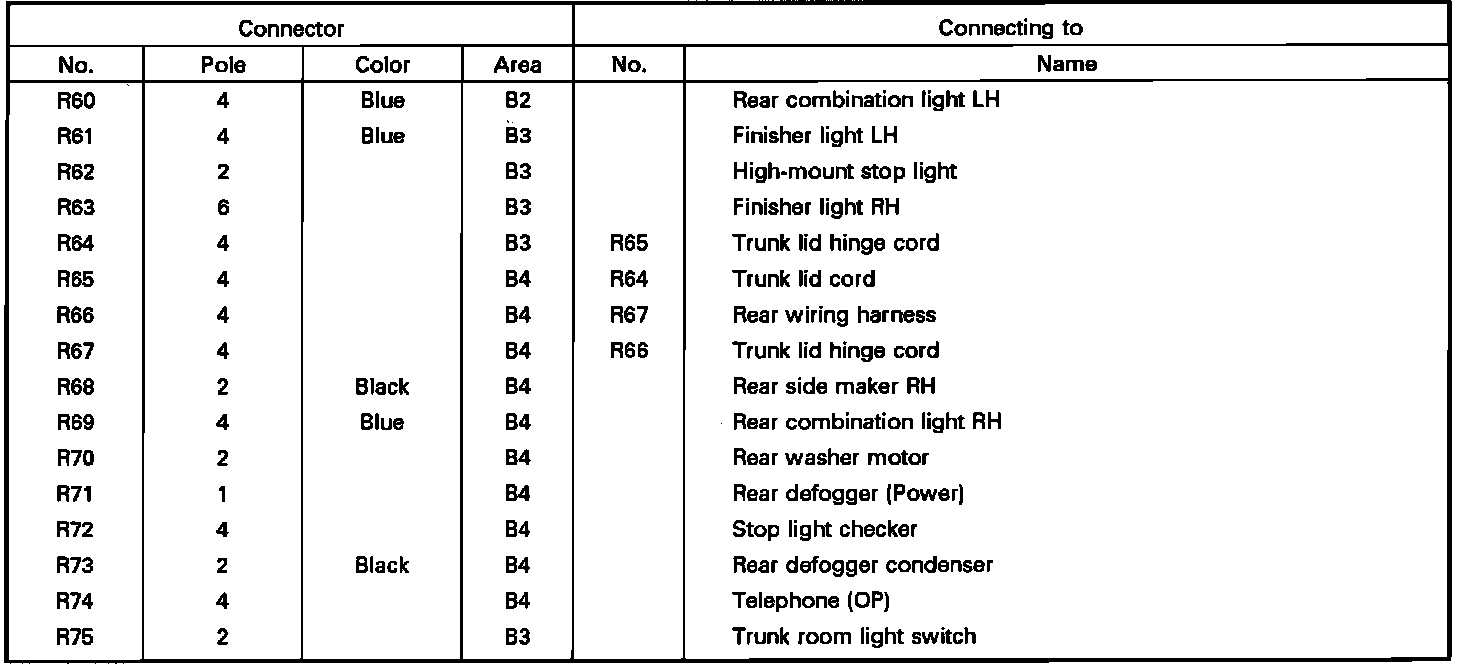

Rear End Wiring Harness And Ground Point (4-Door Sedan, Legend):

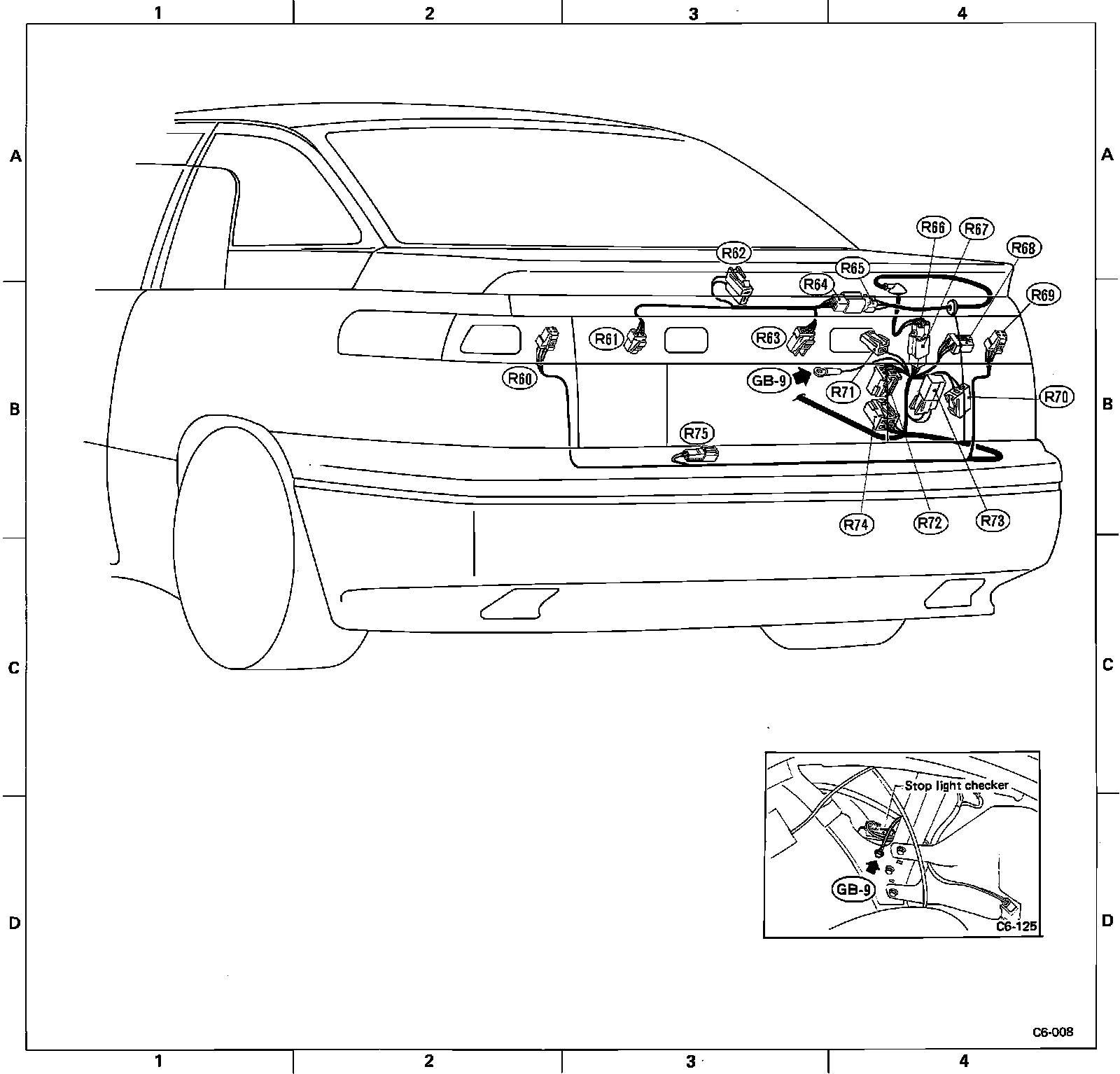

Rear End Wiring Harness And Ground Point (4-Door Sedan, View):
