Home
>>
Subaru
>>
1994
>>
SVX AWD L6-3.3L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Complete Harness Routing
Complete Harness Routing

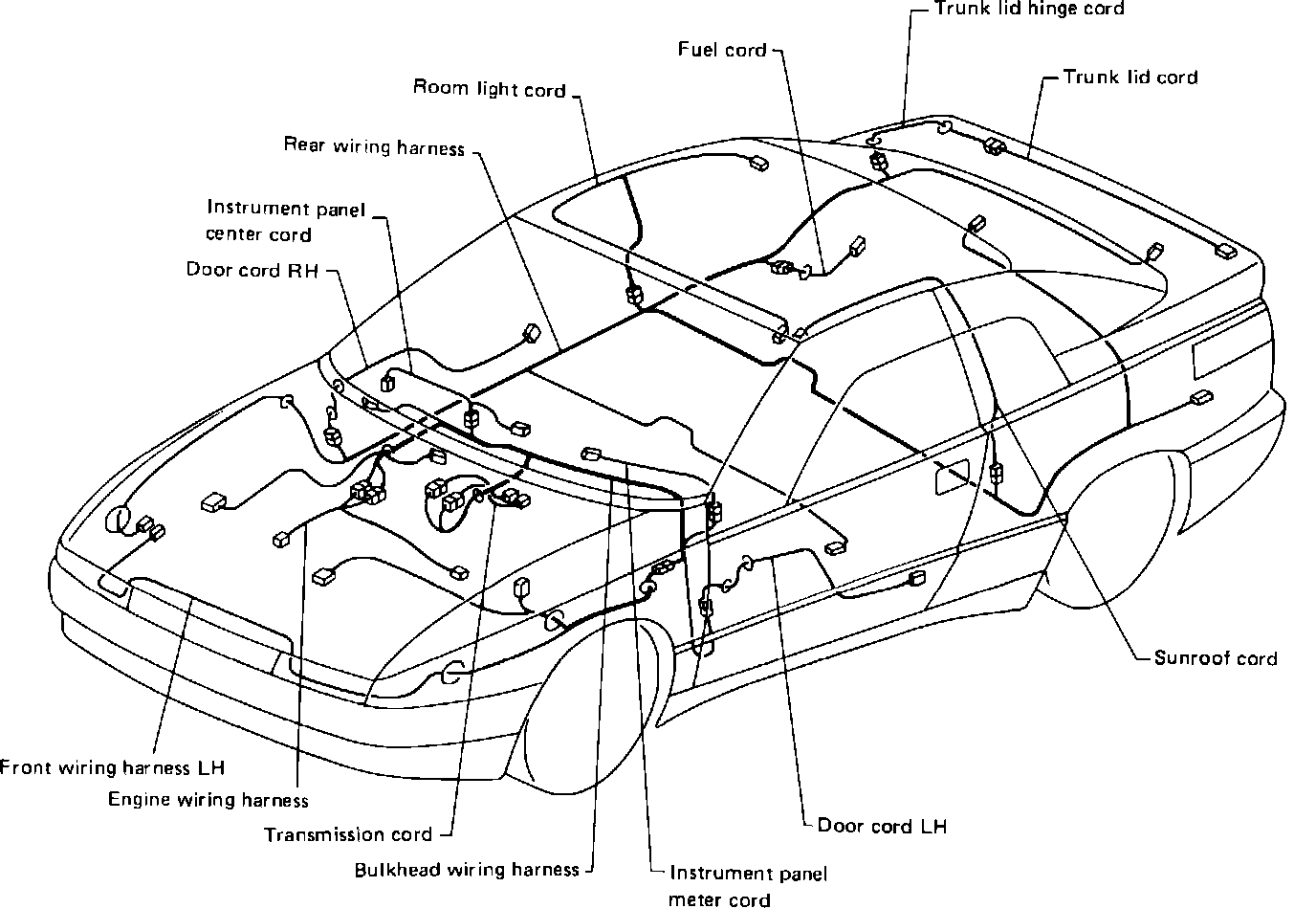

Wiring Harness Routing And Ground Points:
