HU1 - HU4

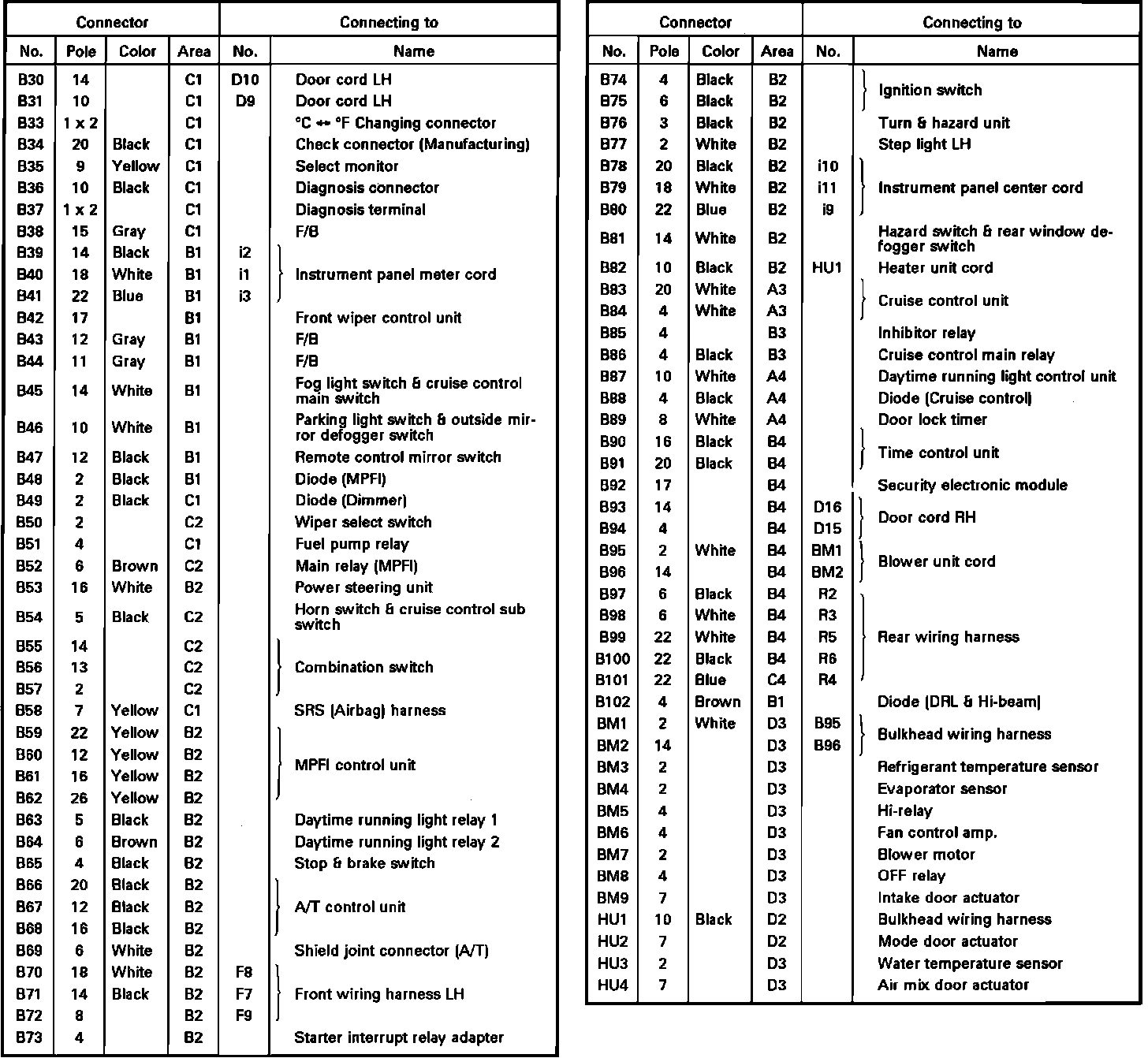

Bulkhead Wiring Harness (Interior Side, Legend):

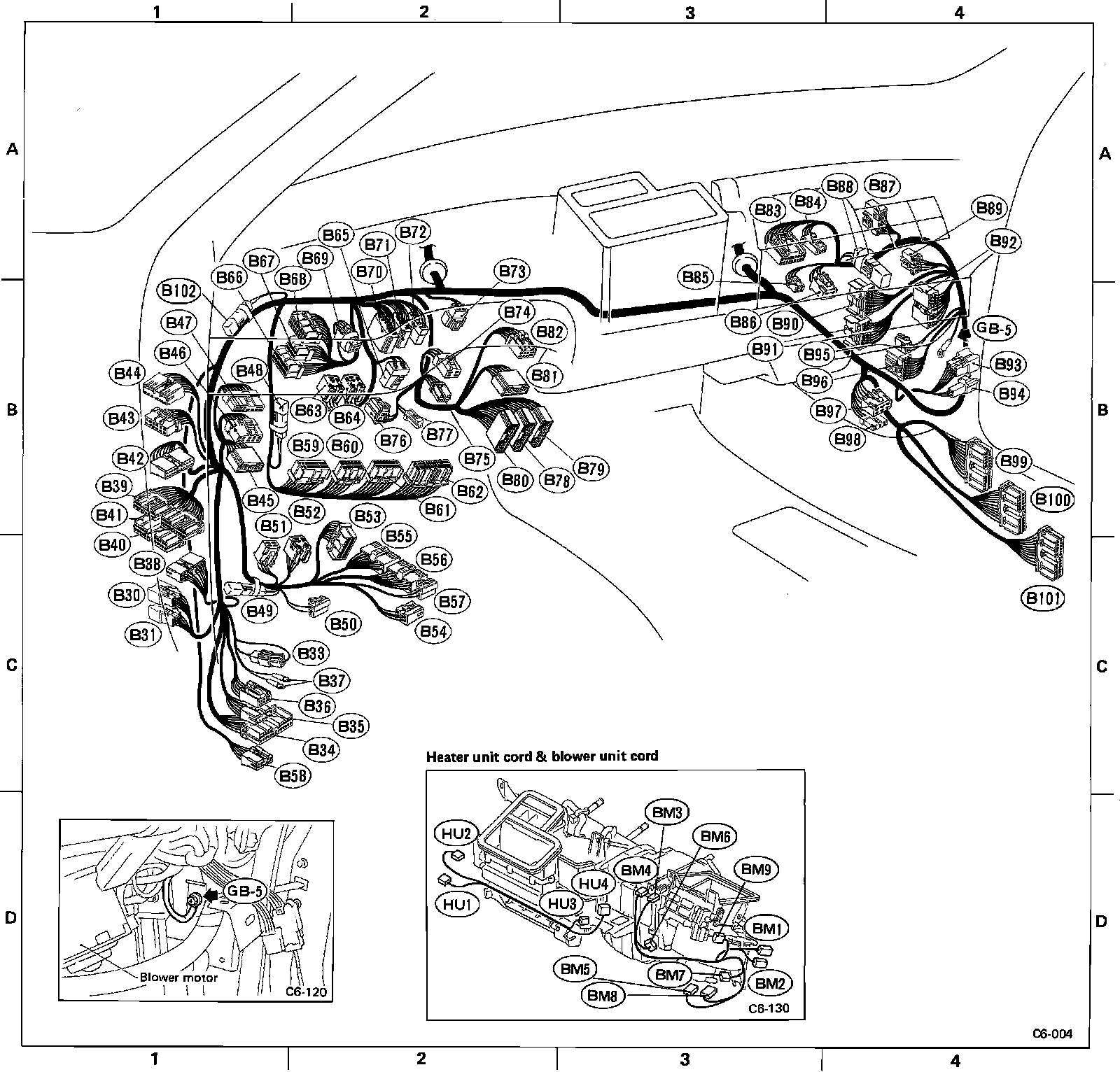

Bulkhead Wiring Harness (Interior Side, View):
