F1 - F45

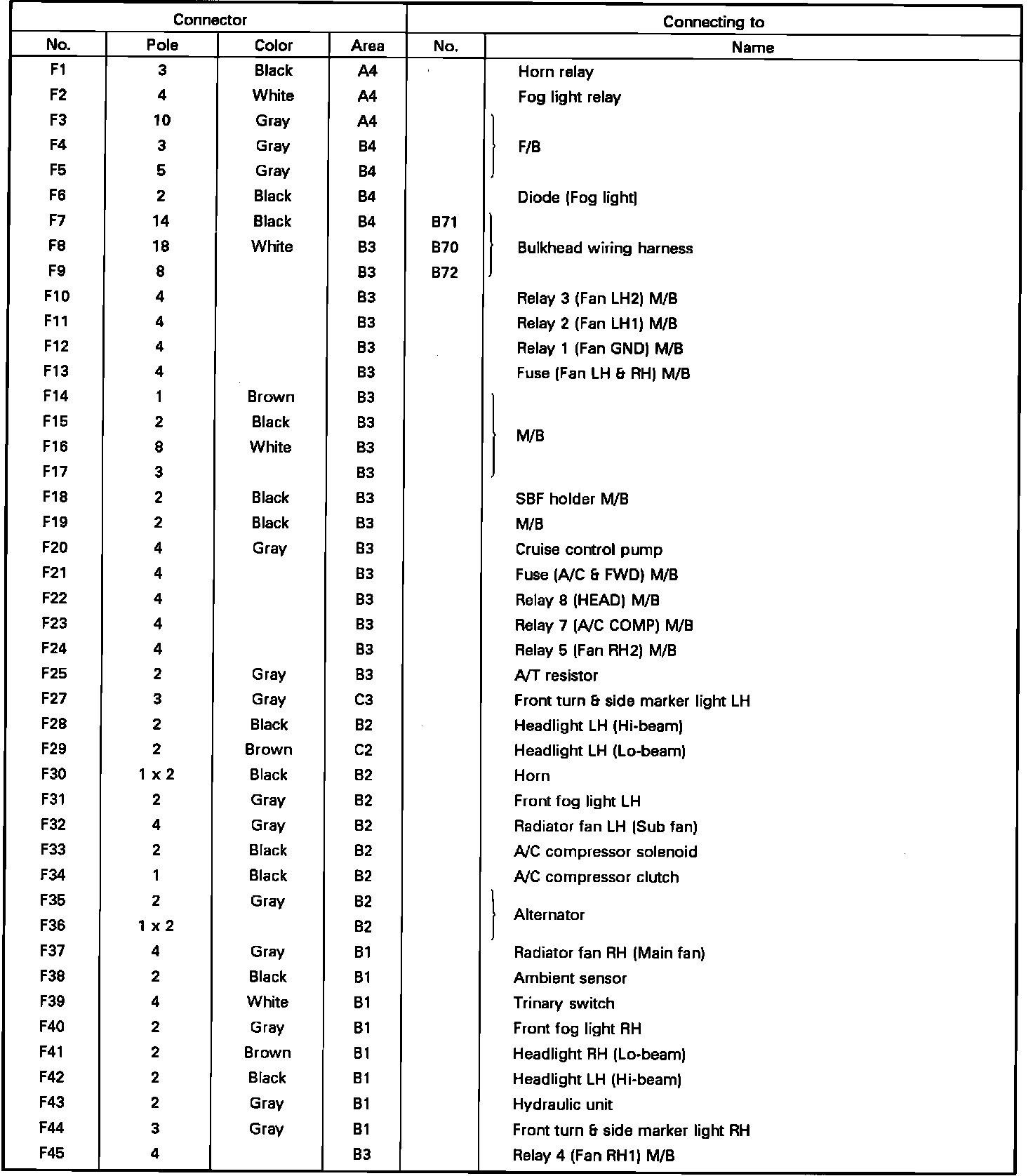

Front End Wiring Harness And Ground Points (Legend):



Front Wiring Harness And Ground Points (View):
