Restraint Systems

TROUBLE CODE 32

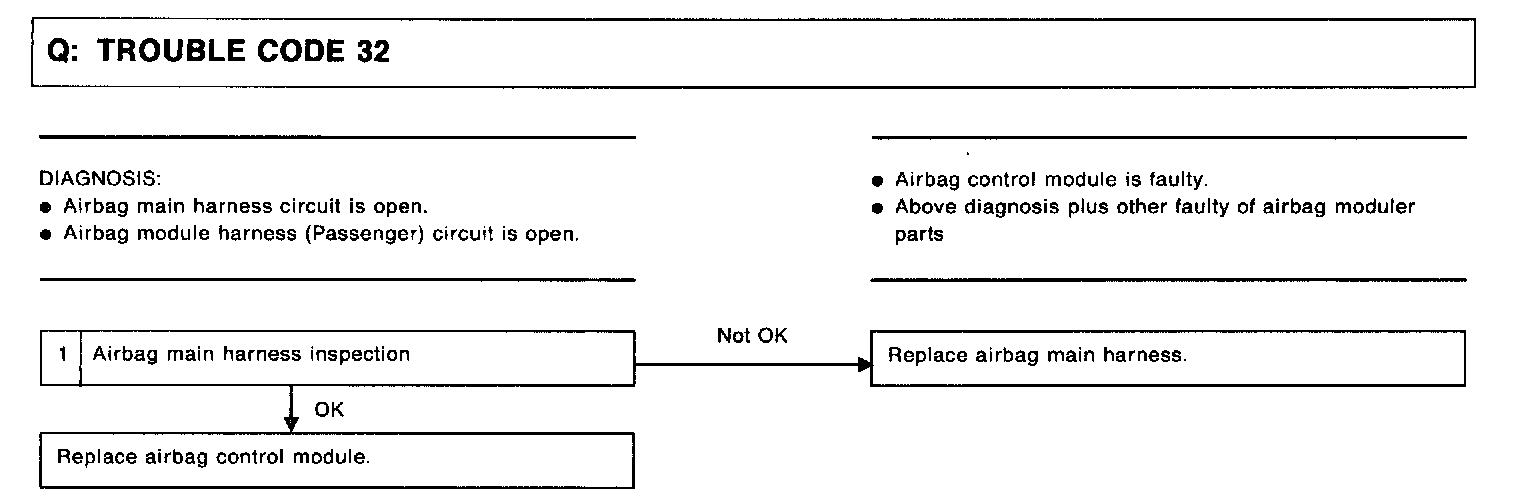

FLOWCHART

DIAGNOSIS:

- Airbag main harness circuit is open.

- Airbag module harness (Passenger) circuit is open.

- Airbag control module is faulty.

- Above diagnosis plus other faulty of airbag module parts

CAUTION: Before performing diagnostics on airbag system, turn ignition switch "OFF", disconnect battery ground cable and then wait at least 20 seconds.








1. AIRBAG MAIN HARNESS INSPECTION

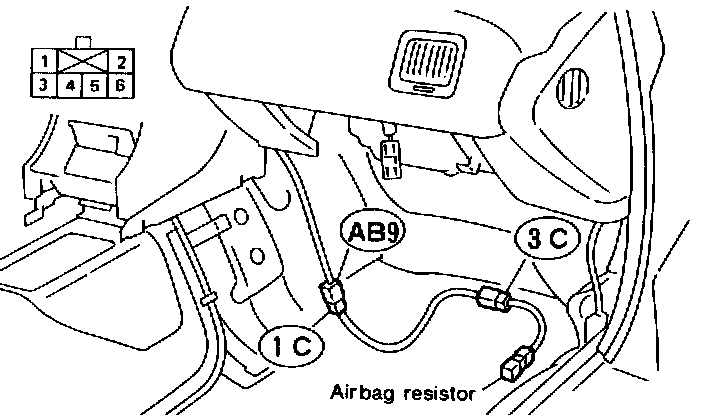

1) Remove glove box disconnect connector (AB9) and (AB1O) and connect connector (AB9) to test harness C connector (1C).

2) Disconnect connector (AB6) from airbag control module, and connect it to test harness B2 connector (8B) terminal.

3) Measure resistance between test harness B2 connector (5B) and test harness C connector (3C) terminals.

Connector & terminal / Specified resistance:
(5B) No.6 (3C) No.4 / 10 Ohms, or less
(5B) No.7 (3C) No.3 / 10 Ohms, or less
