Transmission Control Systems

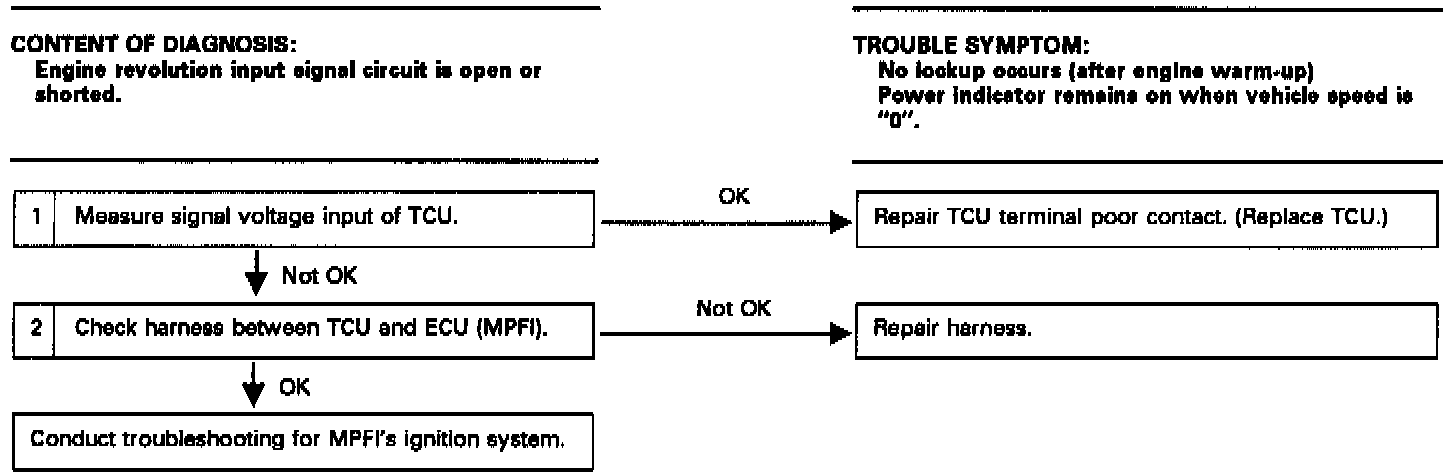

DTC 23 Engine RPM Signal:

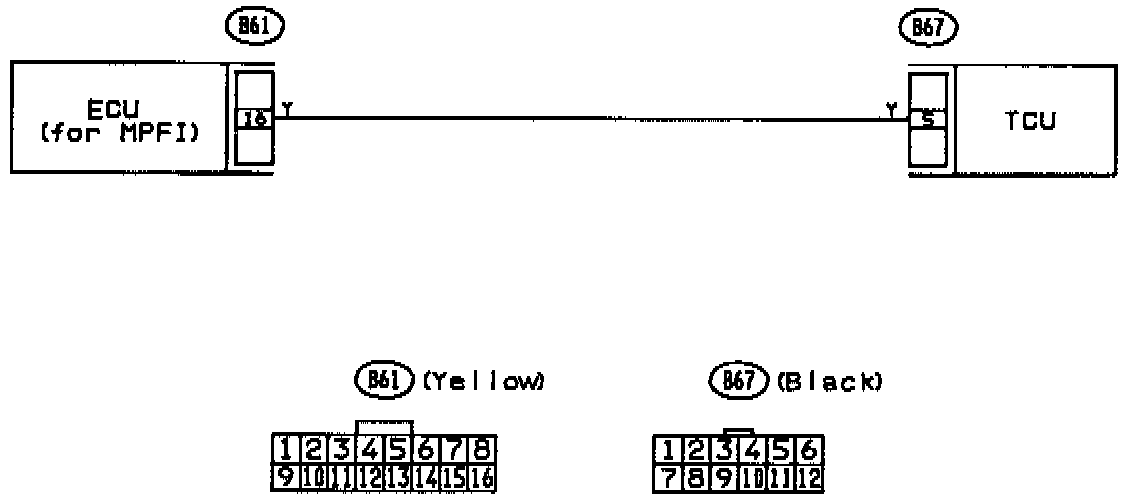

Engine RPM Signal Circuit:

1. MEASURE SIGNAL VOLTAGE INPUT OF TCU.
a. Turn ignition switch ON (with engine OFF).
b. Measure signal voltage input of TCU.

Connector & Terminal/Specified value
(B67) No.5 - Body /10 V, min.

2. CHECK HARNESS BETWEEN TCU AND ECU (MPFI).
a. Disconnect connector from TCU.
b. Disconnect connector from ECU.
c. Measure resistance between TCU connector and ECU connector.

Connector & Terminal/Specified value
(B67) No.5 (B61) No.16/0 Ohms
(B67) No.5 Body/1 M Ohm, min.
