Transmission Control Systems

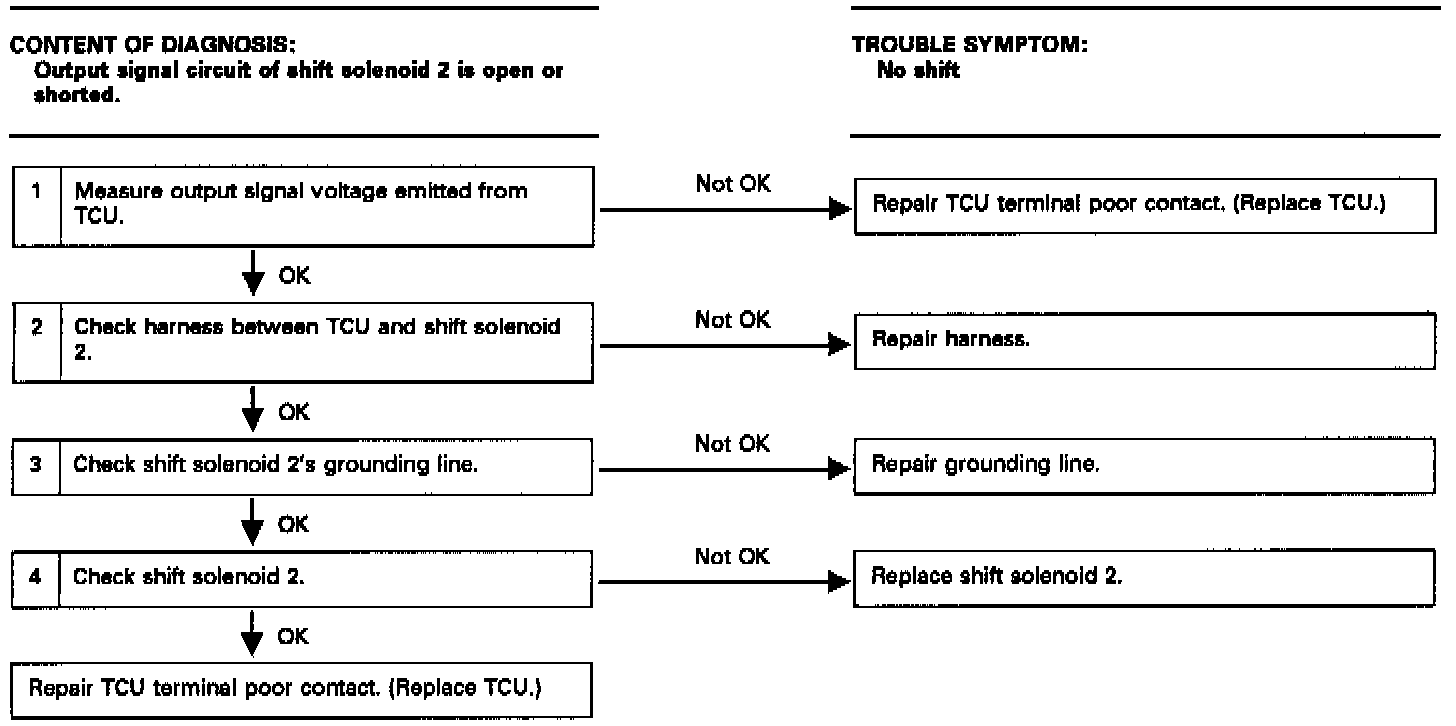

DTC 14 Shift Solenoid 2:

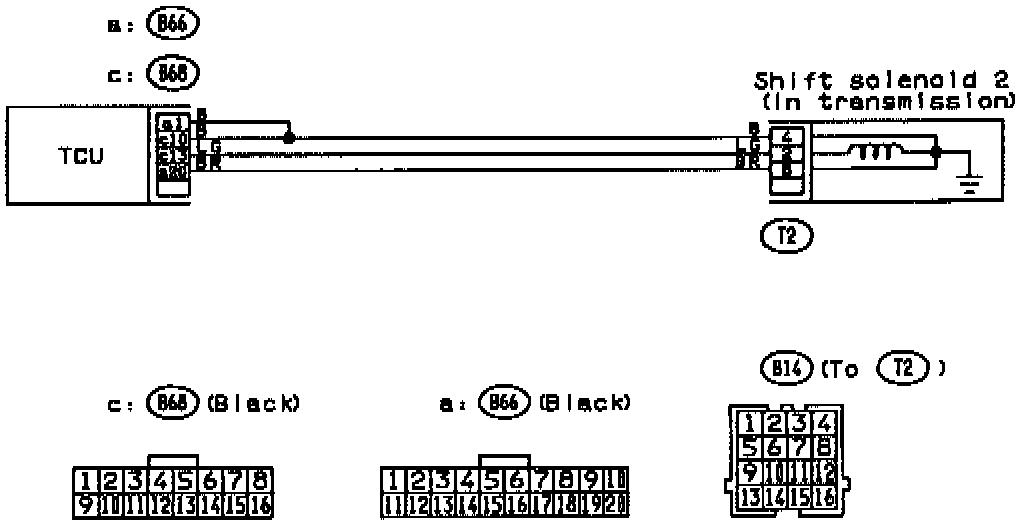

Shift Solenoid 2 Circuit:

1. MEASURE SIGNAL VOLTAGE OUTPUT EMITTED FROM TCM.
a. Raise vehicle and support with safety stands. On 4-wheel drive models, raise all wheels off ground.
b. Warm up the engine and transmission.
c. Move selector lever to "D."
d. Measure signal voltage output emitted from TCM while idling the engine.

Specified value (B68) No.13 - No.10: 10 - 14 Volts

2. CHECK HARNESS BETWEEN TCM AND SHIFT SOLENOID 2.
a. Disconnect connector from TCM.
b. Disconnect connector from transmission.
c. Measure resistance between TCM connector and transmission connector, and between TCM connector and body.

Specified value:
(B68) No.13 - (B14) No.2: 0 Ohms
(B68) No.13 - Body: 1 M Ohm, min.
(B68) No.10 - (B14) No.4: 0 Ohms
(B68) No.10 - Body: 1 M Ohm, min.

3. CHECK SHIFT SOLENOID 2's GROUNDING LINE.
a. Disconnect connector from transmission.
b. Measure resistance between transmission connector receptacle and transmission case.

Specified value (T2) No.4 - Transmission: 0 Ohms

4. CHECK SHIFT SOLENOID 2.
a. Disconnect connector from transmission.
b. Measure resistance between transmission connector receptacle's terminals.

Specified value (T2) No.2 - No.4: 20 - 30 Ohms
