Home >> Subaru >> 1994 >> Justy Hatchback 2WD L3-1.2L SOHC (MPFI) >> Repair and Diagnosis >> Transmission and Drivetrain >> Continuously Variable Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> - General Symptom Troubleshooting Charts - Electronic Controlled Variable Transmission (ECVT)

- General Symptom Troubleshooting Charts - Electronic Controlled Variable Transmission (ECVT)

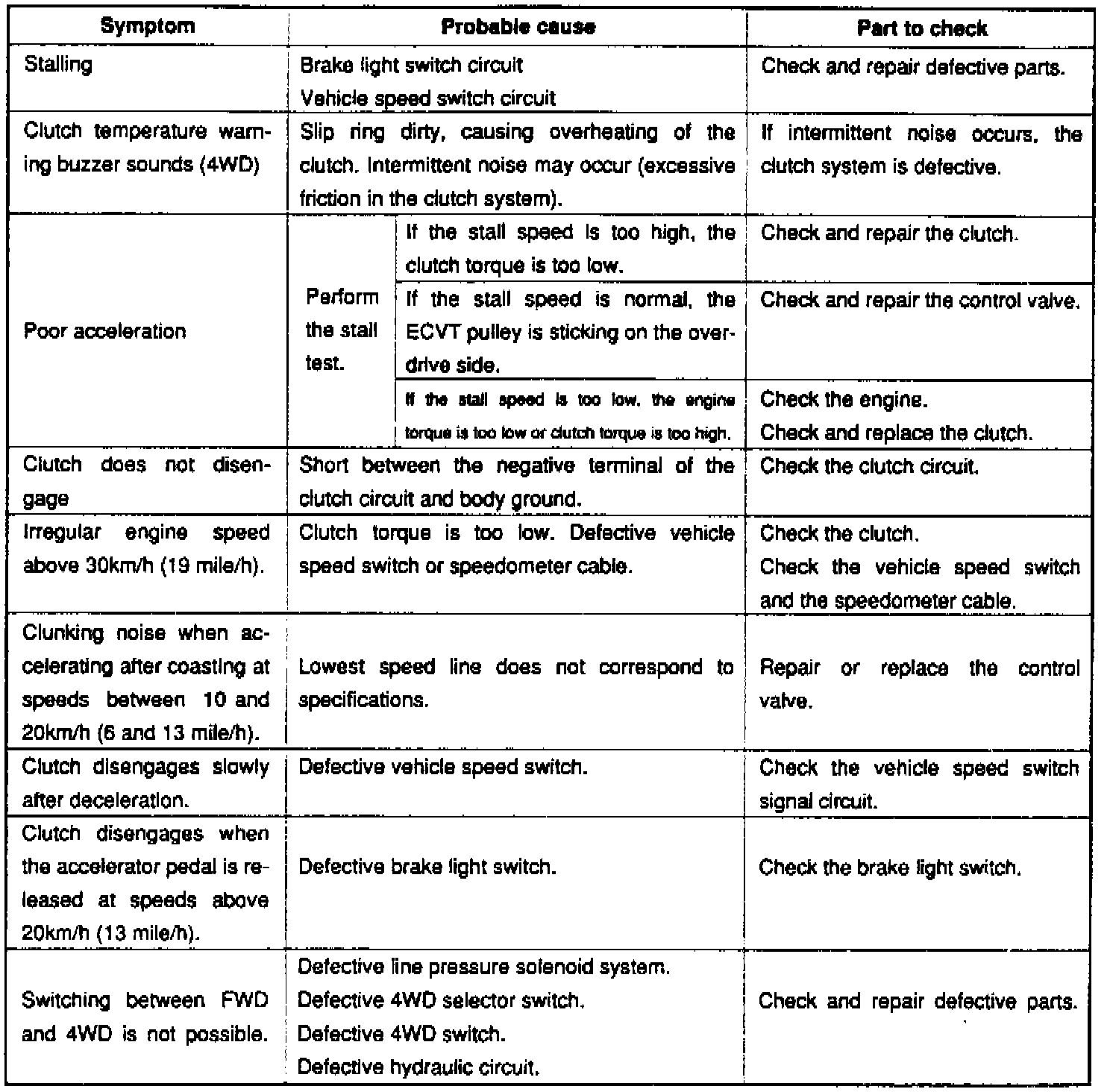

Fig. 2 Troubleshooting Inspection Chart 1:

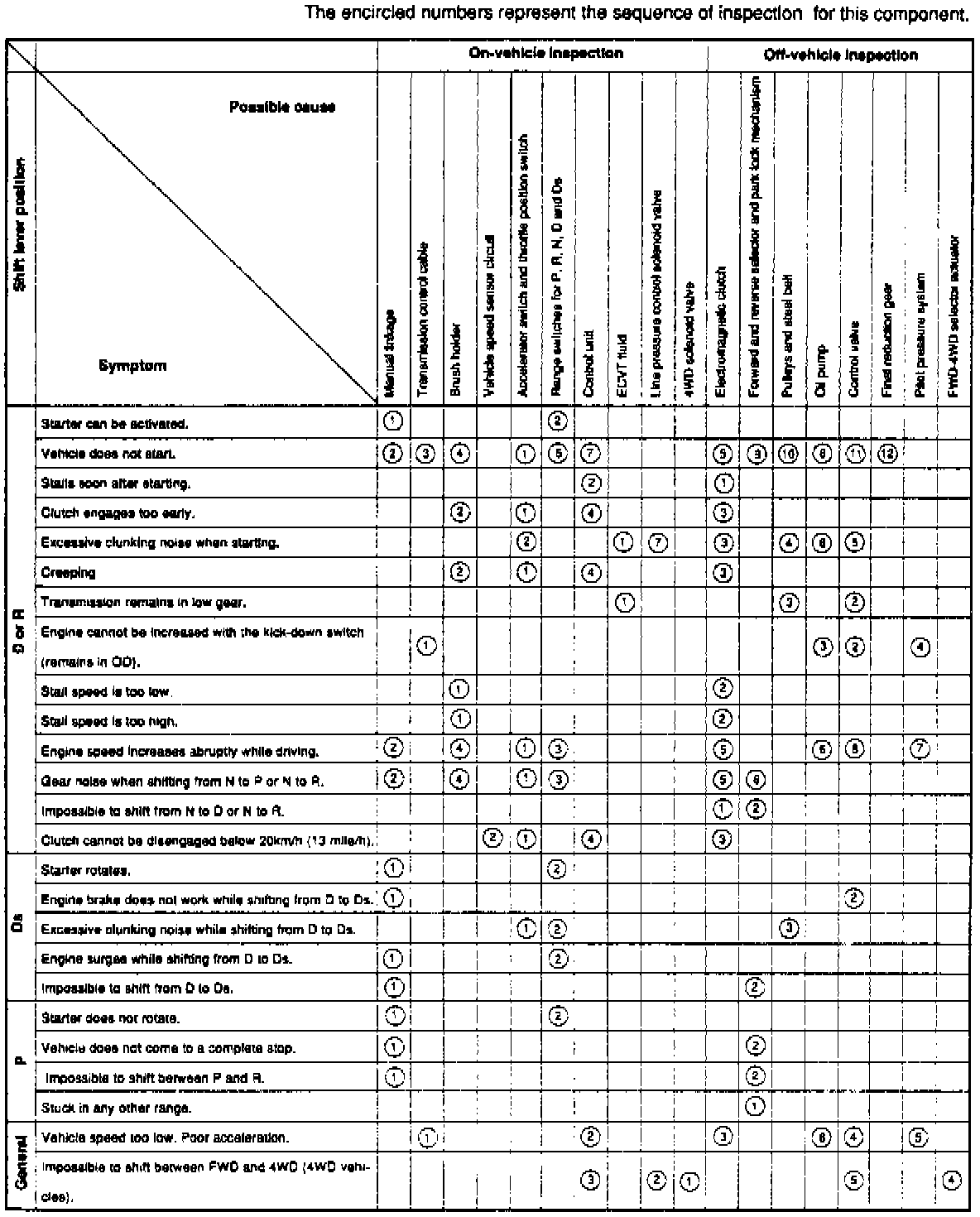

Fig. 3 Troubleshooting Inspection Chart 2:
