Home >> Subaru >> 1994 >> Justy Hatchback 2WD L3-1.2L SOHC (MPFI) >> Repair and Diagnosis >> Transmission and Drivetrain >> Continuously Variable Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> - Diagnosis By Symptom - Electronic Controlled Variable Transmission (ECVT) >> Vehicle Remains In Over Drive

Vehicle Remains In Over Drive

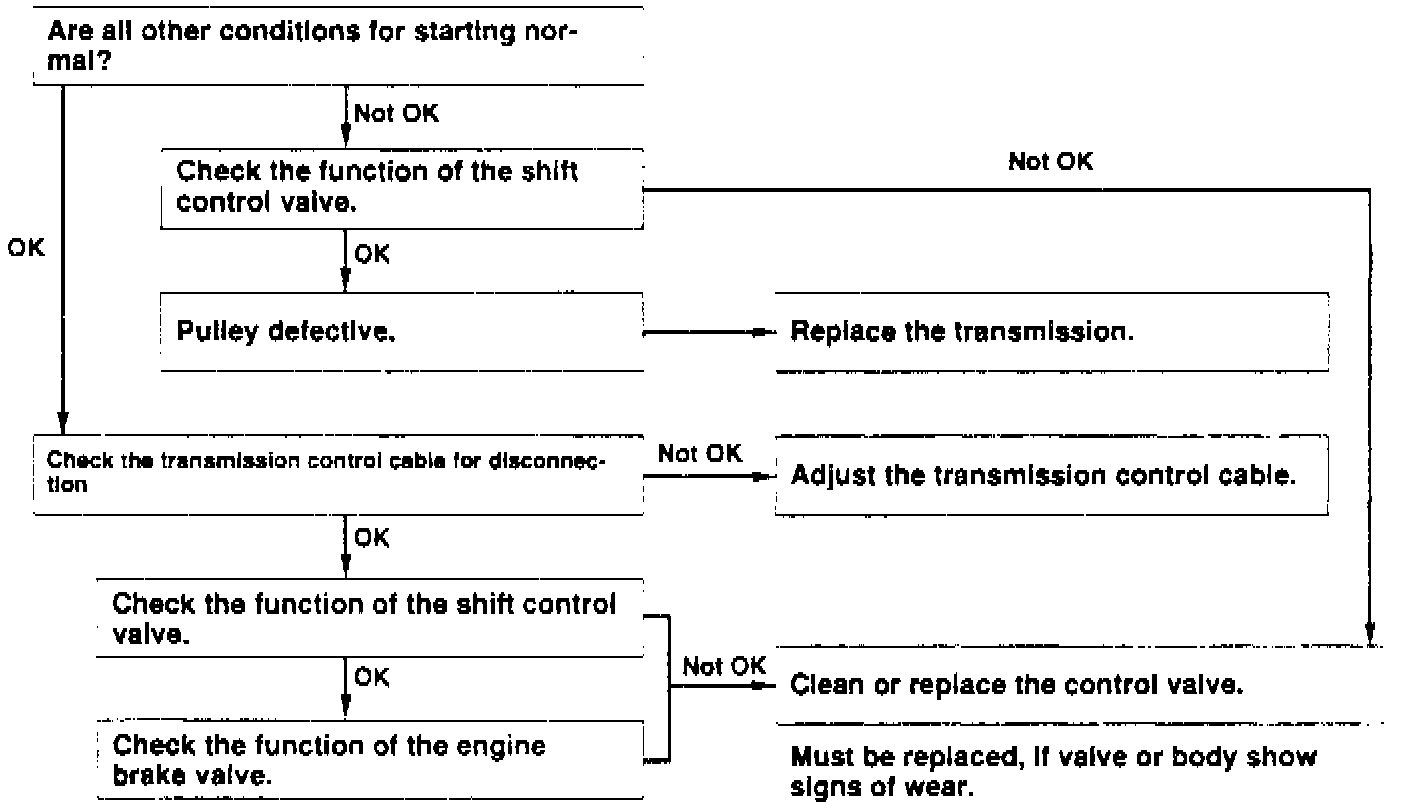

Fig. 10 Vehicle Remains In OD:
