Home >> Subaru >> 1994 >> Justy Hatchback 2WD L3-1.2L SOHC (MPFI) >> Repair and Diagnosis >> Transmission and Drivetrain >> Continuously Variable Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> - Diagnosis By Symptom - Electronic Controlled Variable Transmission (ECVT) >> Selector Lever Is Hard to Shift

Selector Lever Is Hard to Shift

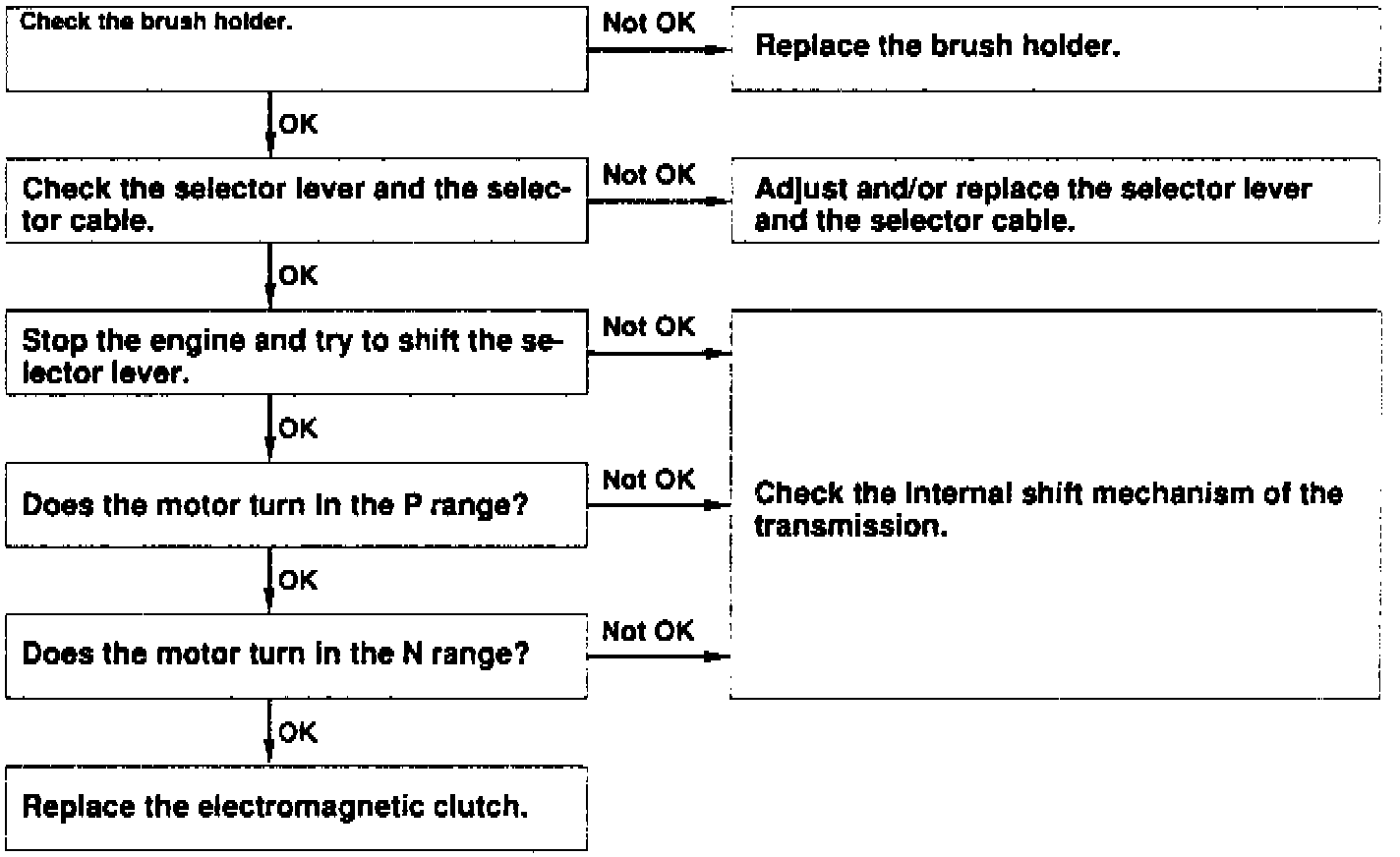

Fig. 7 Selector Lever Is Hard To Shift:
