- Diagnosis By Symptom - Electronic Controlled Variable Transmission (ECVT)
>>
Gear Change Line Is Too Low In Relation to Accelerator Pedal
Gear Change Line Is Too Low In Relation to Accelerator Pedal

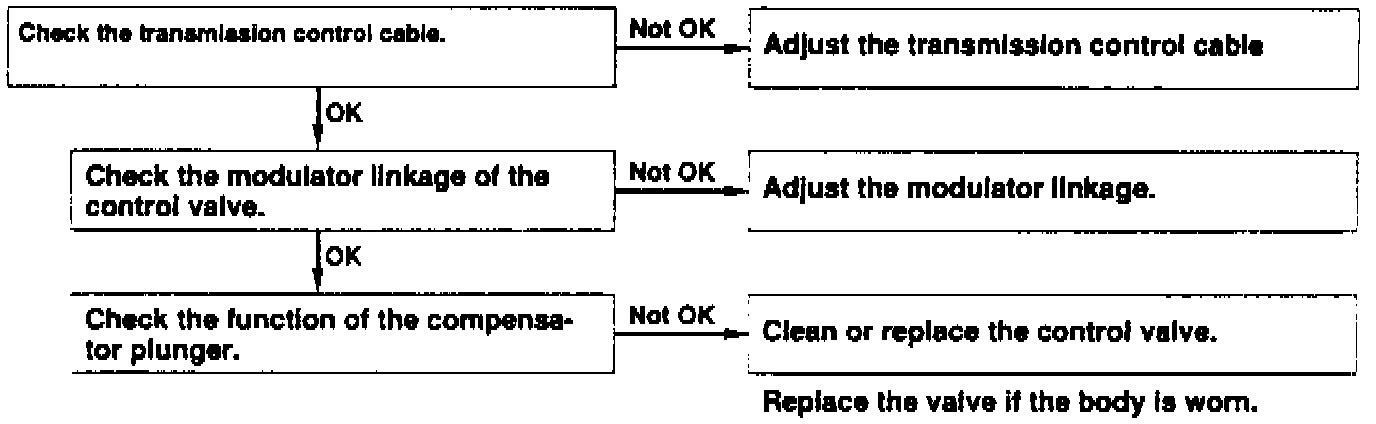

Fig. 15 Gear Change Line Is Too Low In Relation To Accelerator Pedal Position:
