Clutch Switch: Locations

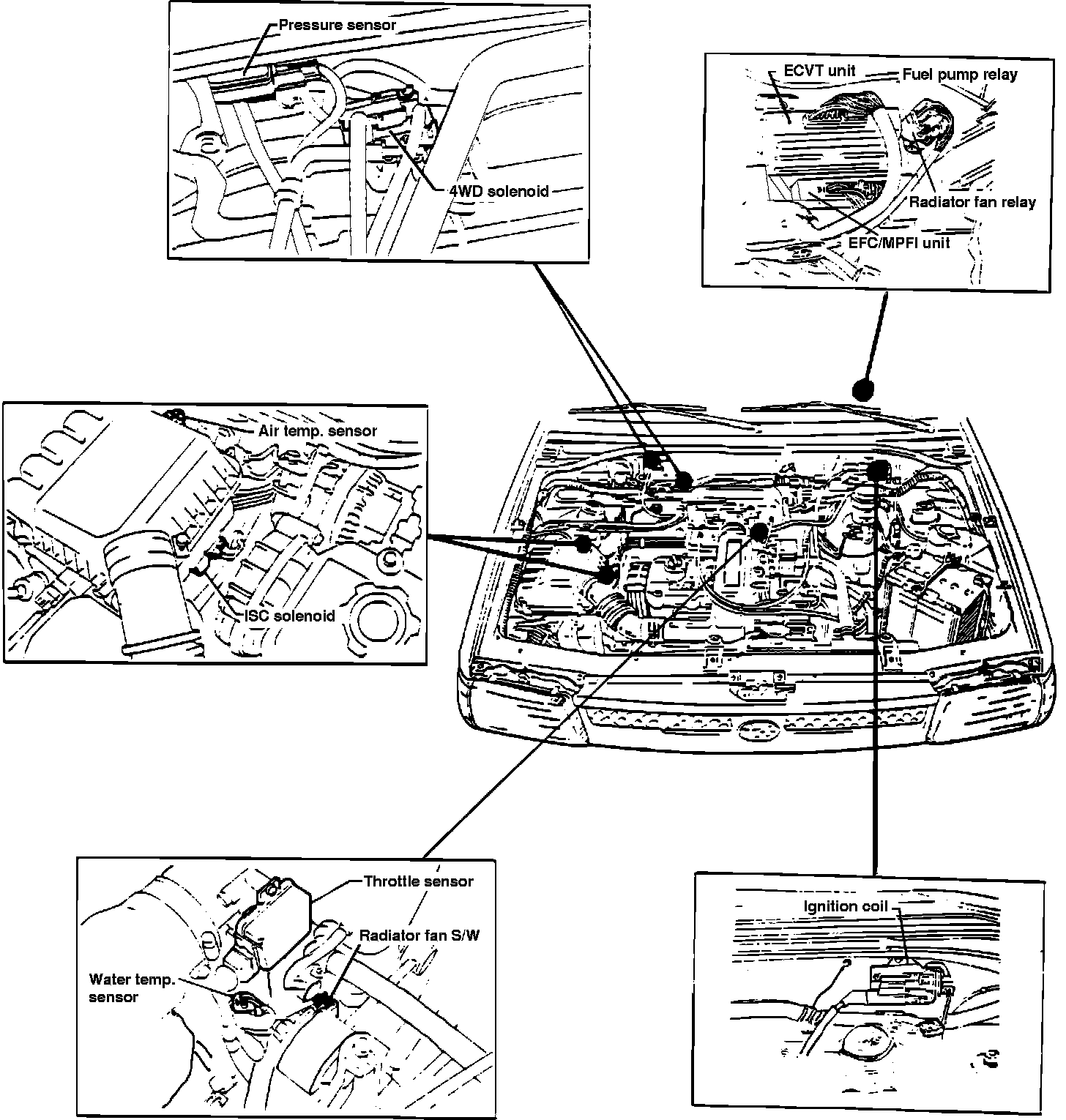

Component Locations:

CANISTER PURGE CONTROL SOLENOID
The purge control solenoid is located in the engine compartment near the canister, right side fender well.

CLUTCH SWITCH
The clutch switch is located under the dash next to the clutch pedal assembly.

CRANK ANGLE SENSOR
The distributor is located on the left end of the transverse engine cylinder head. The crank angle sensor is an integral part of the distributor.

FUEL INJECTORS
The fuel injectors are located where the intake manifold attaches to the head at each cylinder.

IGNITION SYSTEM ignitor/POWER TRANSISTOR
The ignition system ignitor/power transistor is an integral part of the ignition coil, located in the engine compartment, left side firewall.

OXYGEN SENSOR
The oxygen sensor is located beneath the exhaust manifold heat shield in the front of the engine compartment.

VEHICLE SPEED SENSOR
The vehicle speed sensor is an integral part of the speedometer in the combination meter assembly.
