Trouble Diagnosis Chart

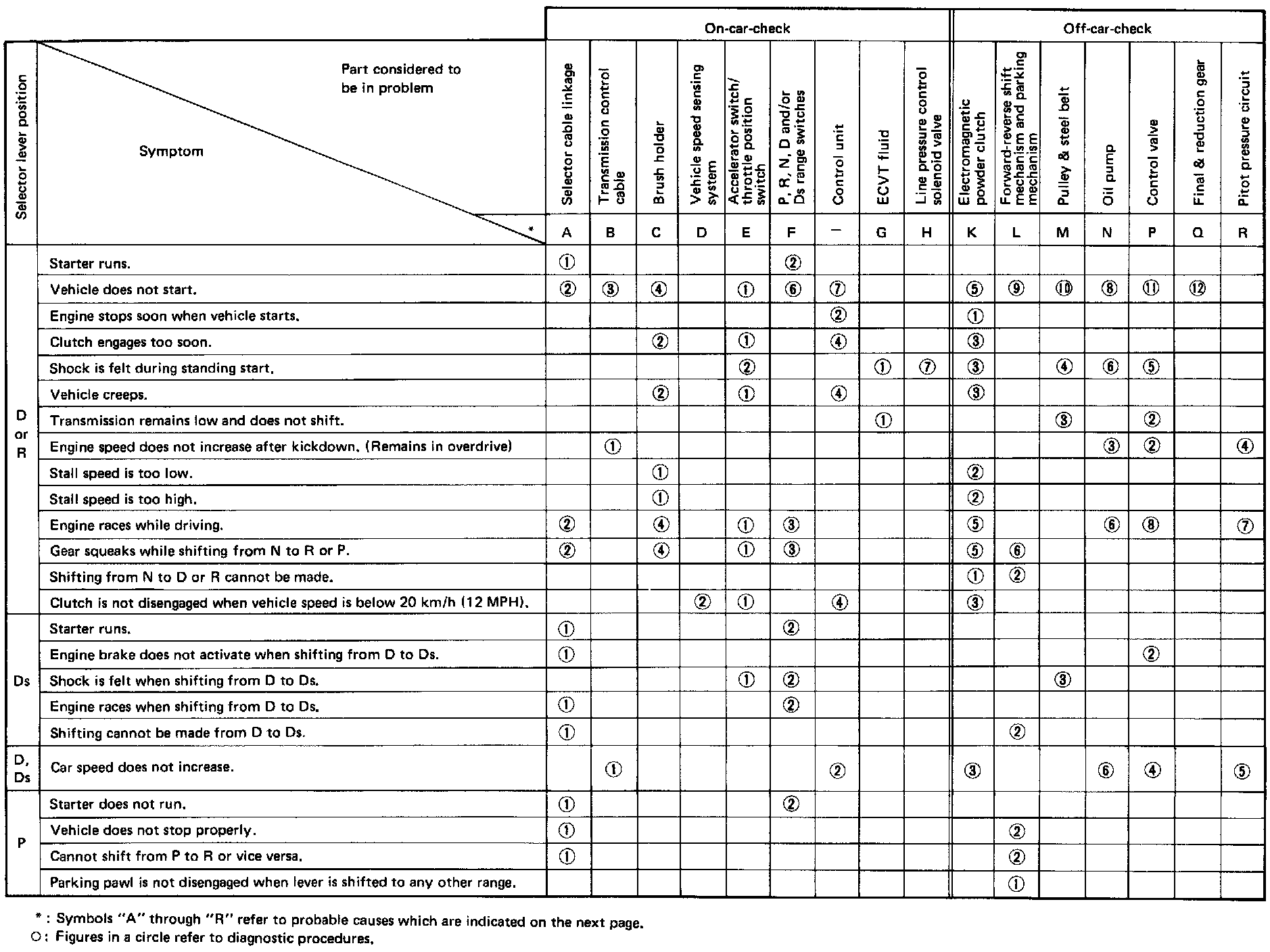

DIAGNOSIS CHART

Trouble Diagnosis Chart:

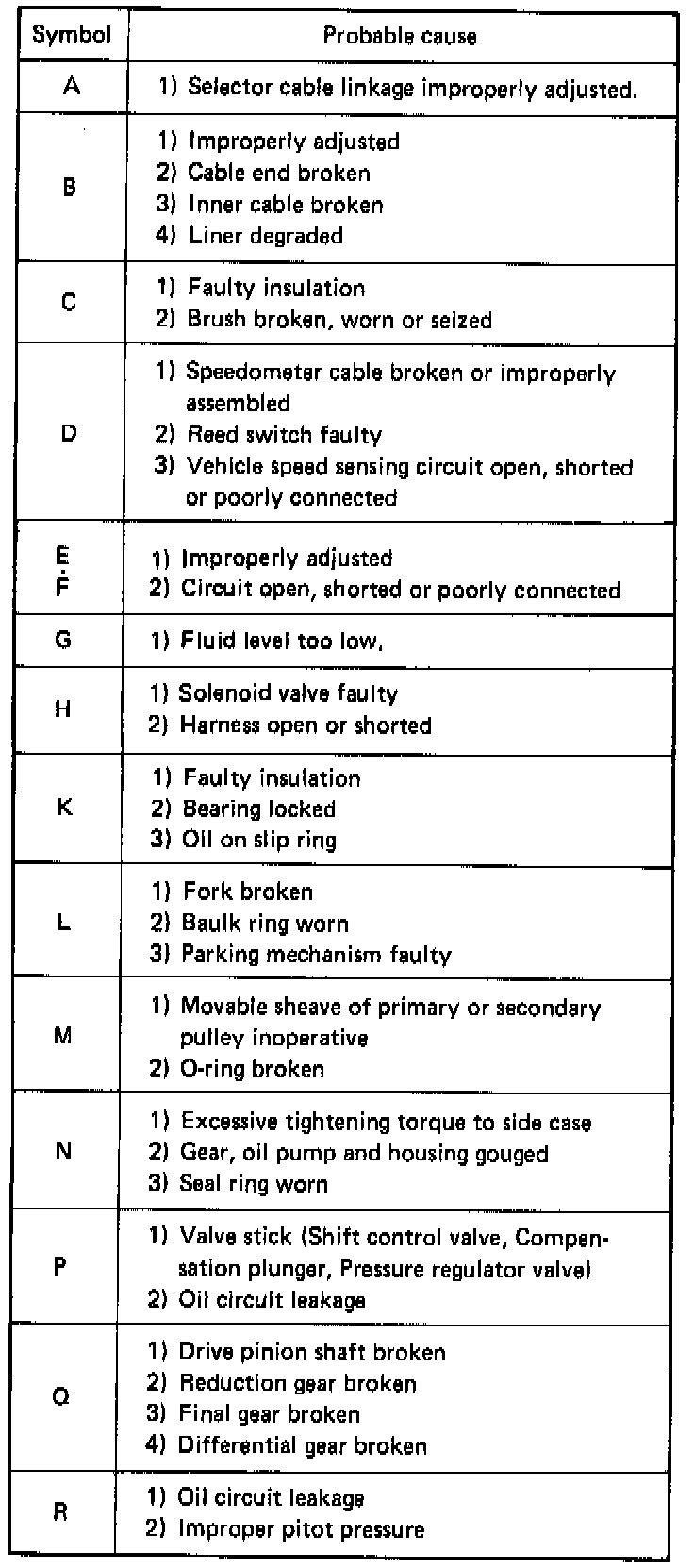

PROBABLE CAUSE CHART

Trouble Diagnosis Cause Chart:
