Home >> Subaru >> 1994 >> Justy Hatchback 2WD L3-1.2L SOHC (MPFI) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 4 - Selector Lever Will Not Operate Properly

4 - Selector Lever Will Not Operate Properly

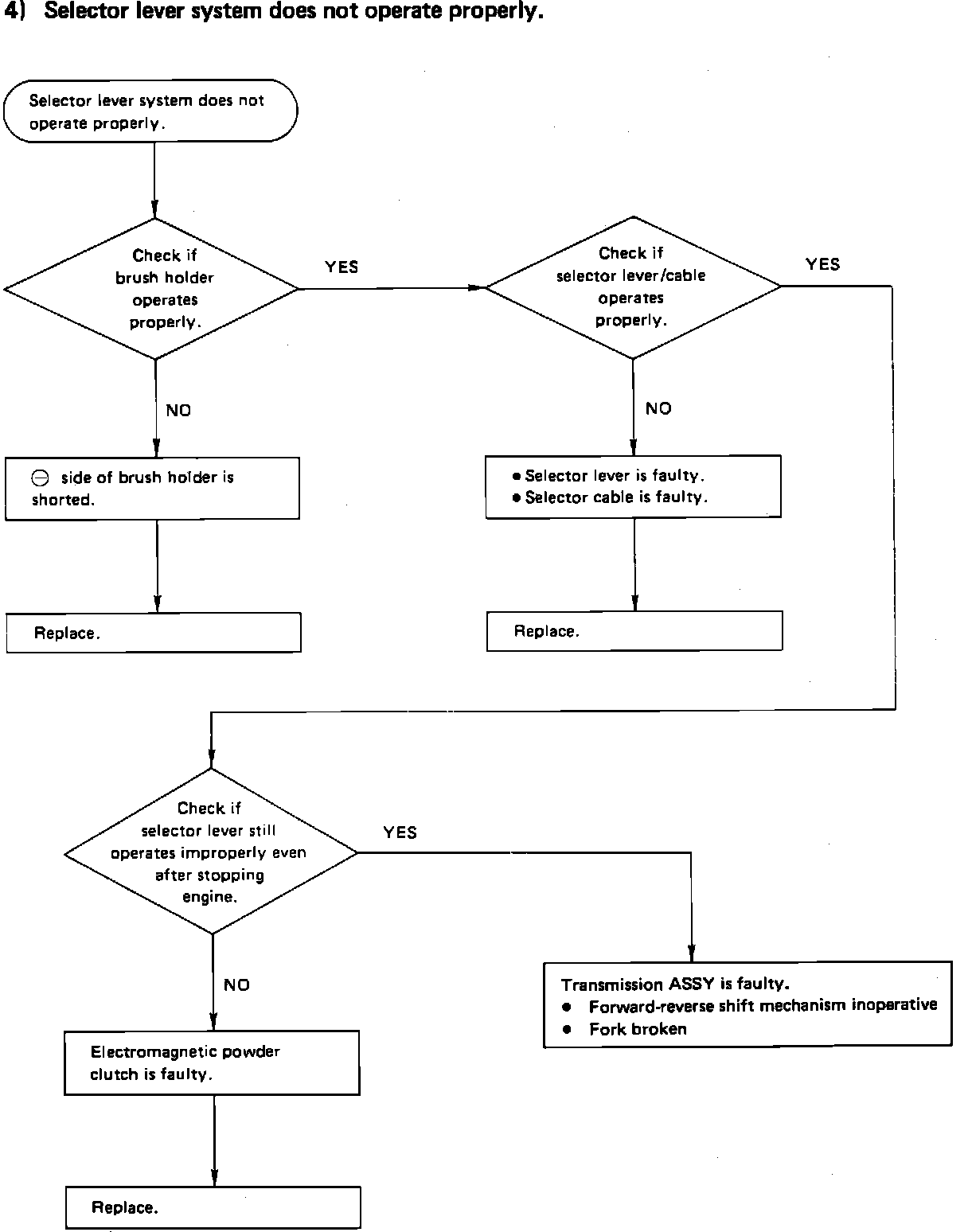

Fig. 5 Diagnostic Flow Chart. Selector Lever Will Not Operate Properly:
