Justy Hatchback 2WD L3-1.2L SOHC (MPFI)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
3 - Vehicle Creeps
3 - Vehicle Creeps

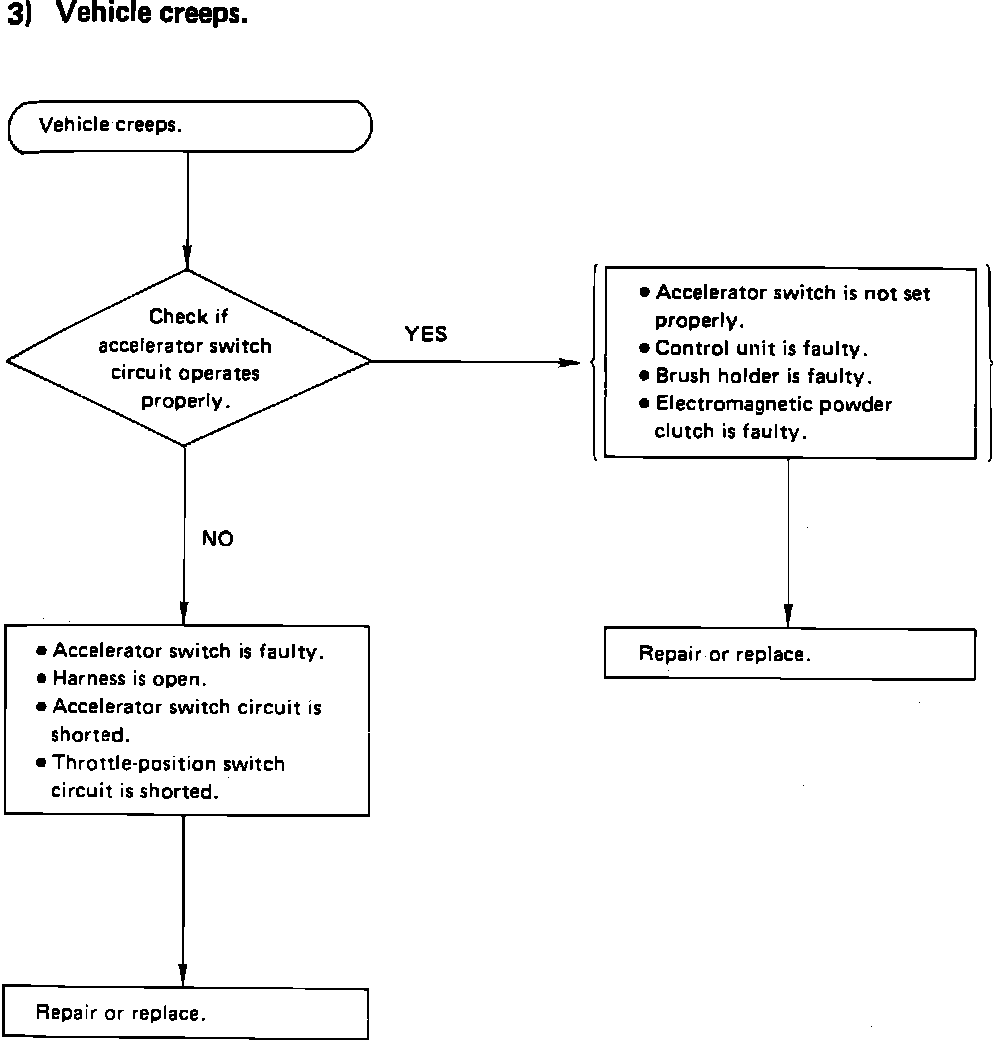

Fig. 4 Diagnostic Flow Chart. Vehicle Creeps:
