2 - Vehicle Will Not Start
2 - Vehicle Will Not Start

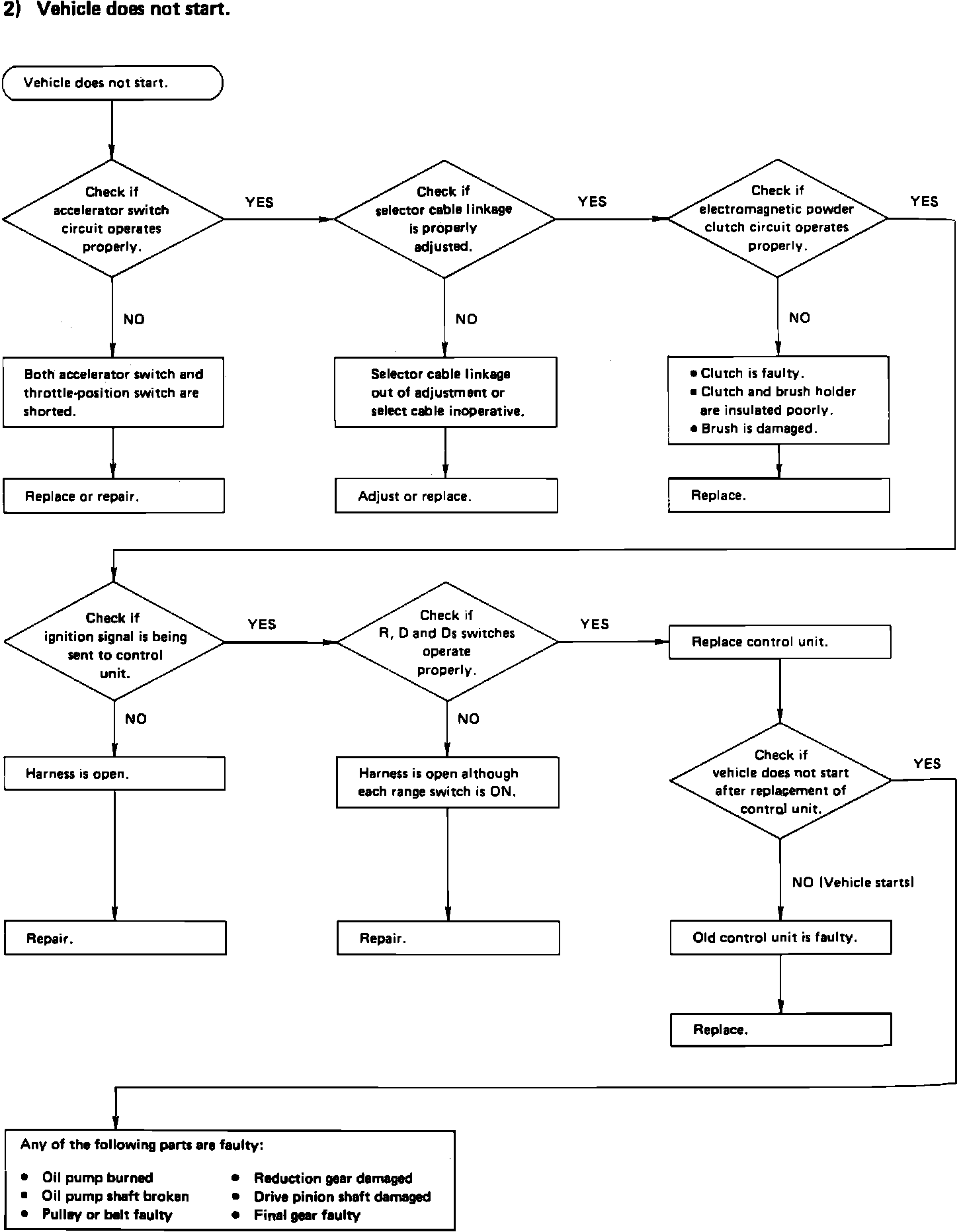

Fig. 3 Diagnostic Flow Chart. Vehicle Will Not Start:
