1 - Starter Will Not Run With Selector In N or P Range
1 - Starter Will Not Run With Selector In N or P Range

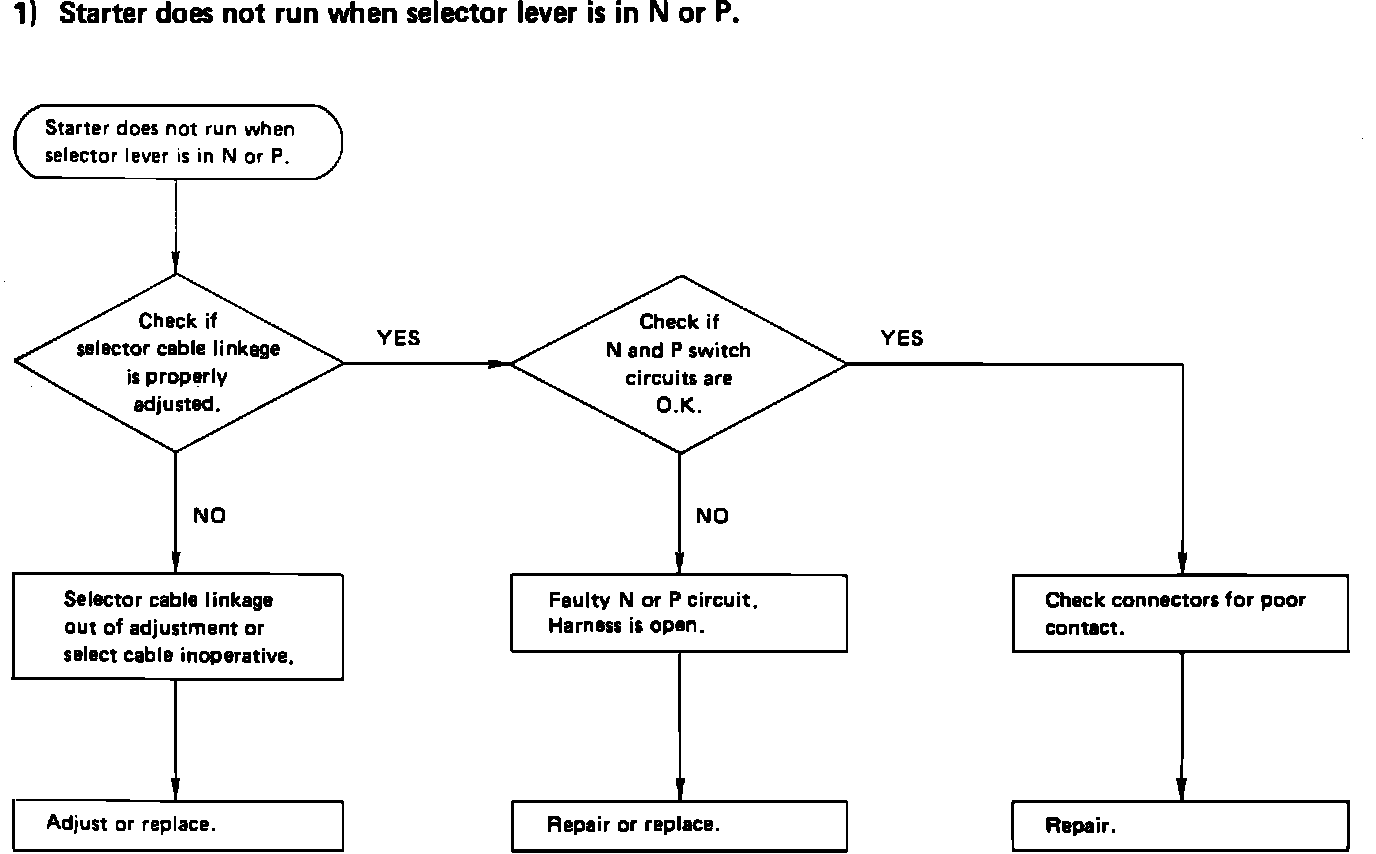

Fig. 2 Diagnostic Flow Chart. Starter Will Not Run With Selector Lever In N Or P Range:
