Home >> Subaru >> 1994 >> Justy Hatchback 2WD L3-1.2L SOHC (MPFI) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Reading and Clearing Diagnostic Trouble Codes >> D-Check Mode

D-Check Mode

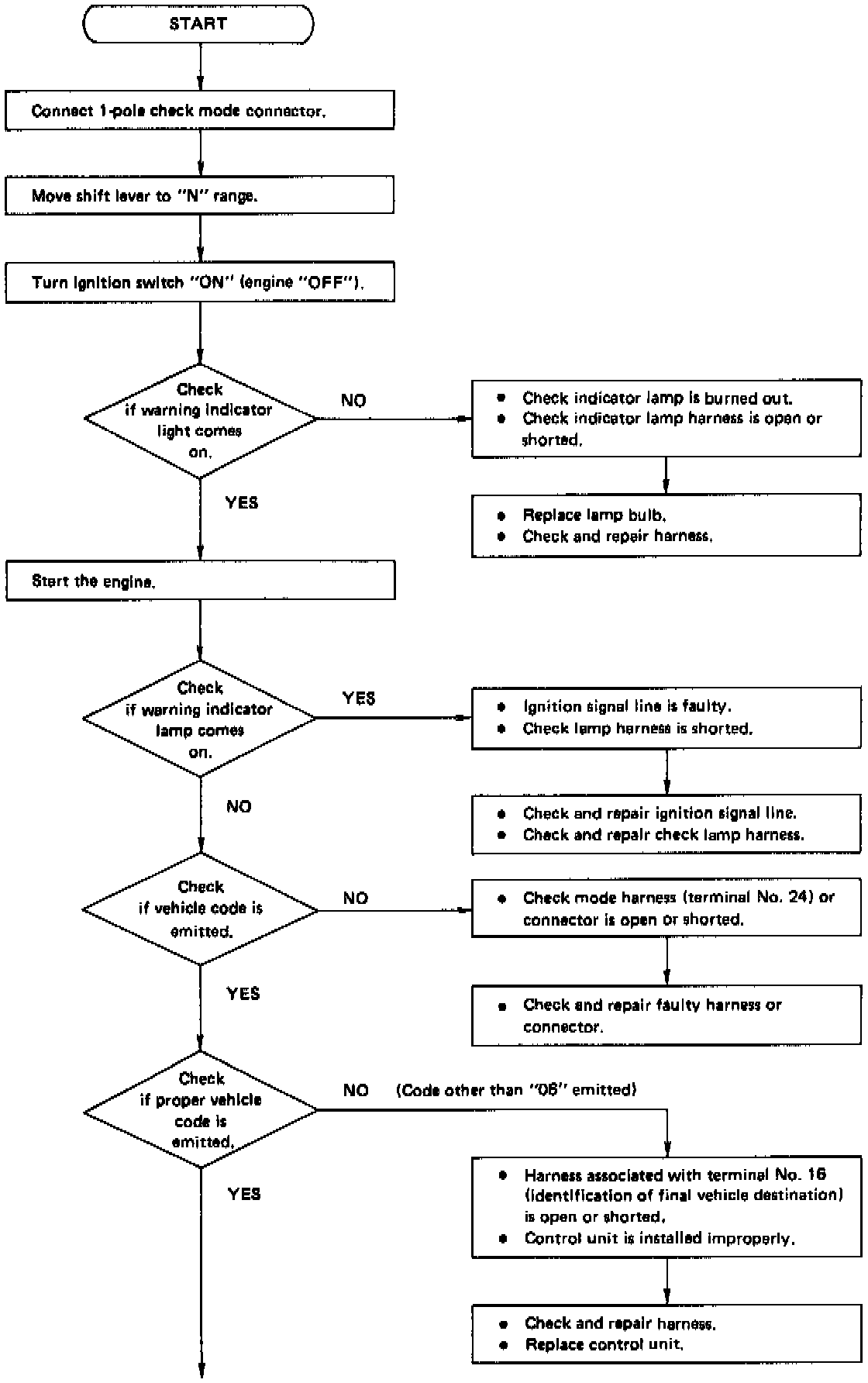

ECVT D-Check Mode (Part 1):

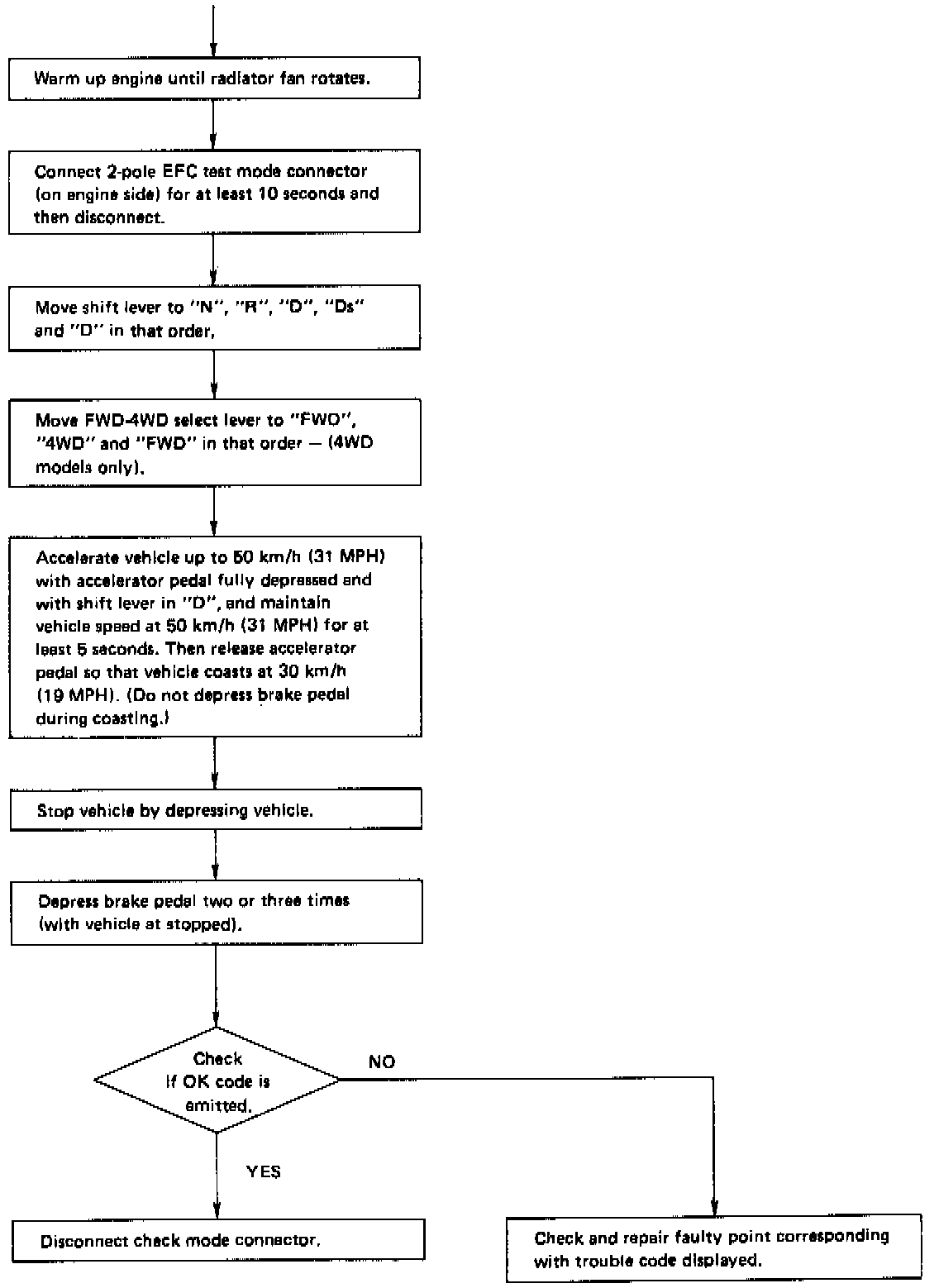

ECVT D-Check Mode (Part 2):
