Service Specifications


SPECIFICATIONS AND SERVICE DATA

Part 1 Of 2:




Part 2 Of 2:

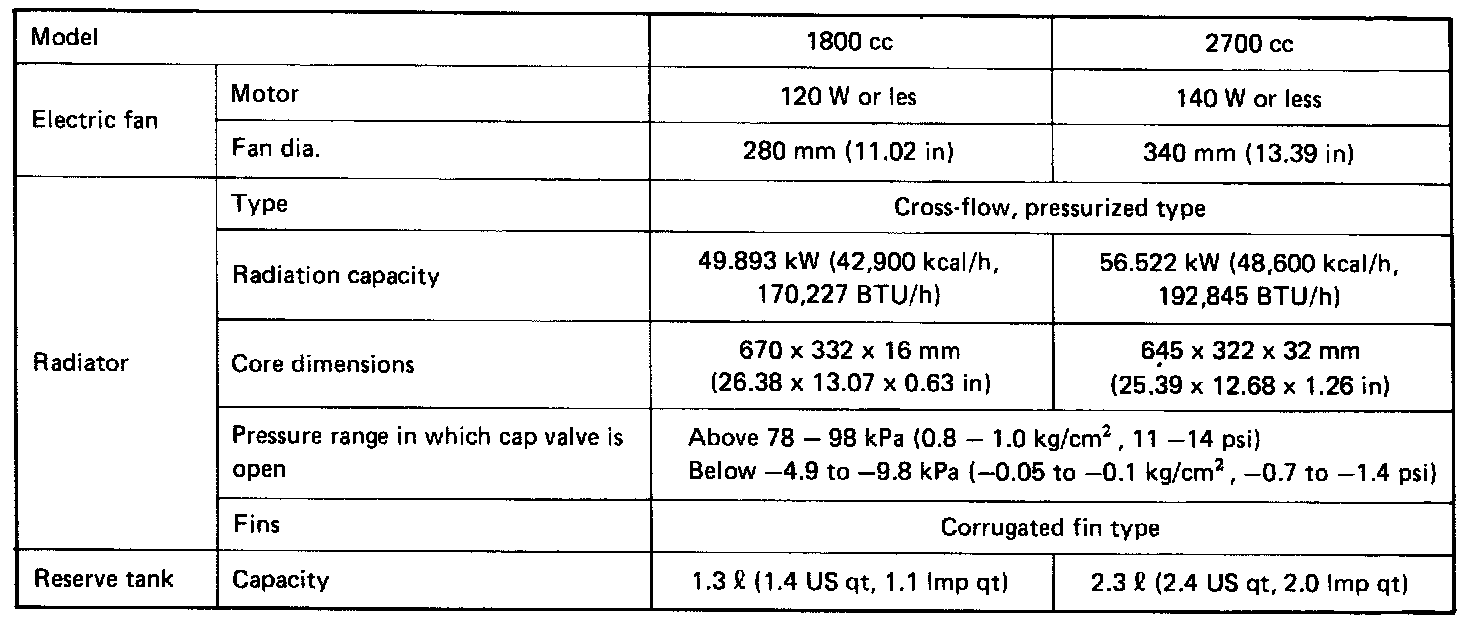

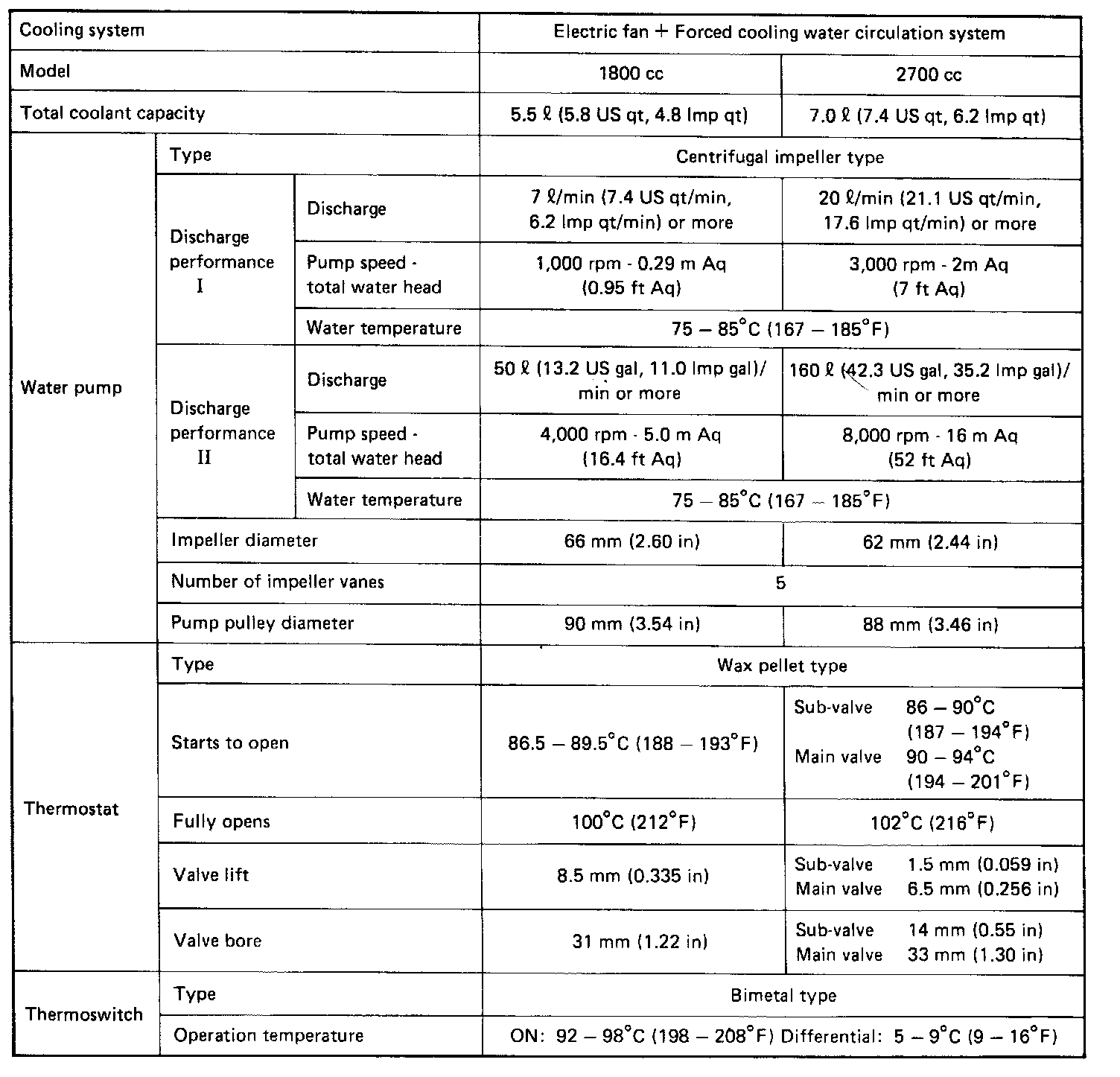

Cooling System Specifications

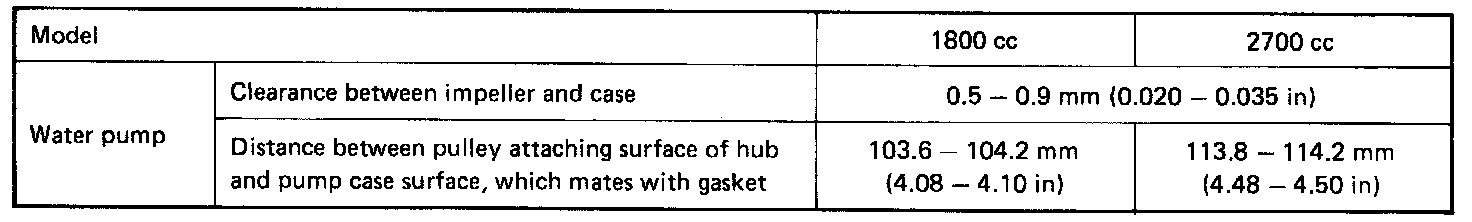

Cooling System Service Data
