Coolant Temperature Sensor/Switch (For Computer): Locations

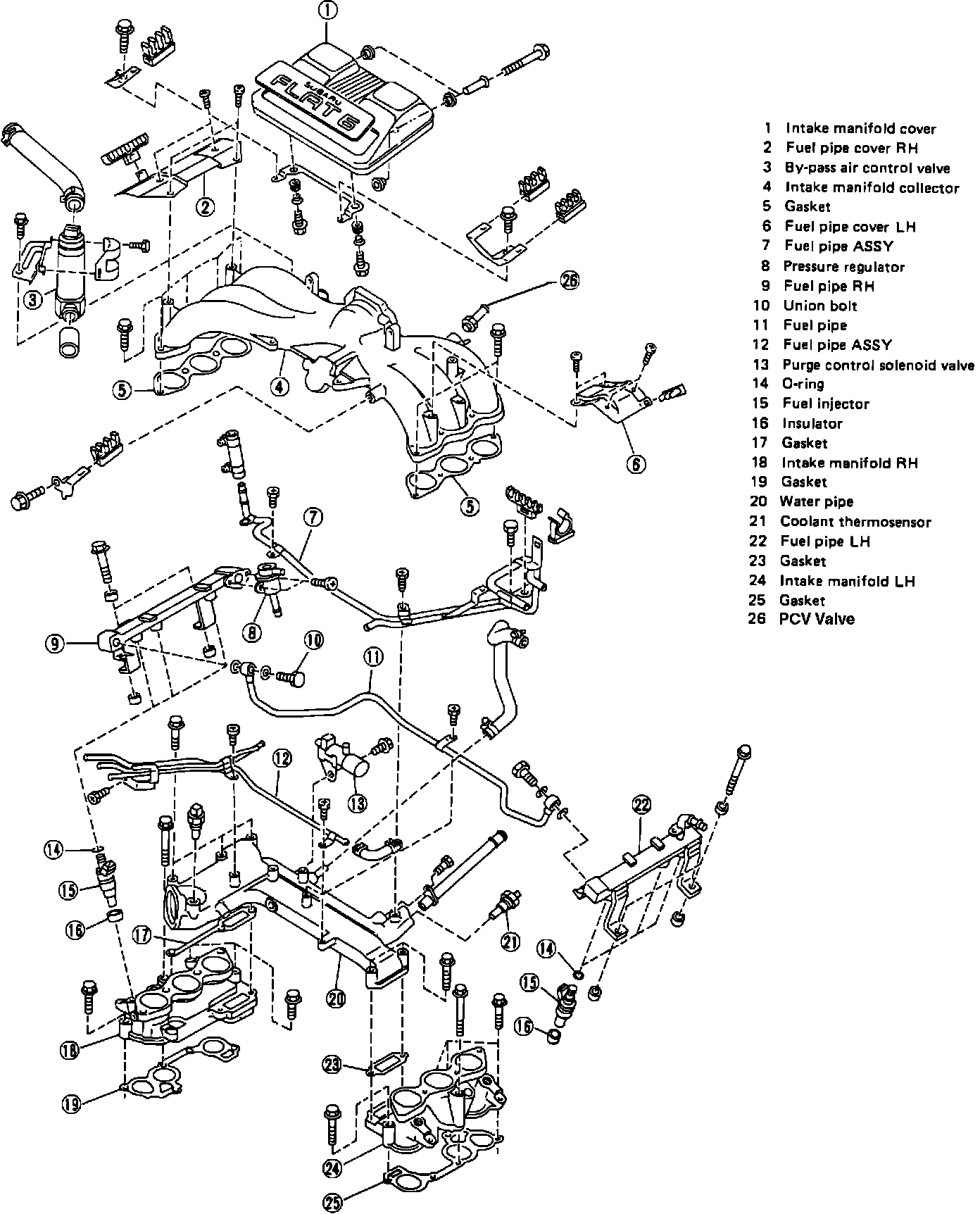

Intake Manifold:





Screwed into the left center of the intake manifold.
