Home >> Subaru >> 1988 >> XT-6 2WD L6-2.7L SOHC >> Repair and Diagnosis >> Maintenance >> Filters >> Fuel Filter >> Locations

Fuel Filter: Locations

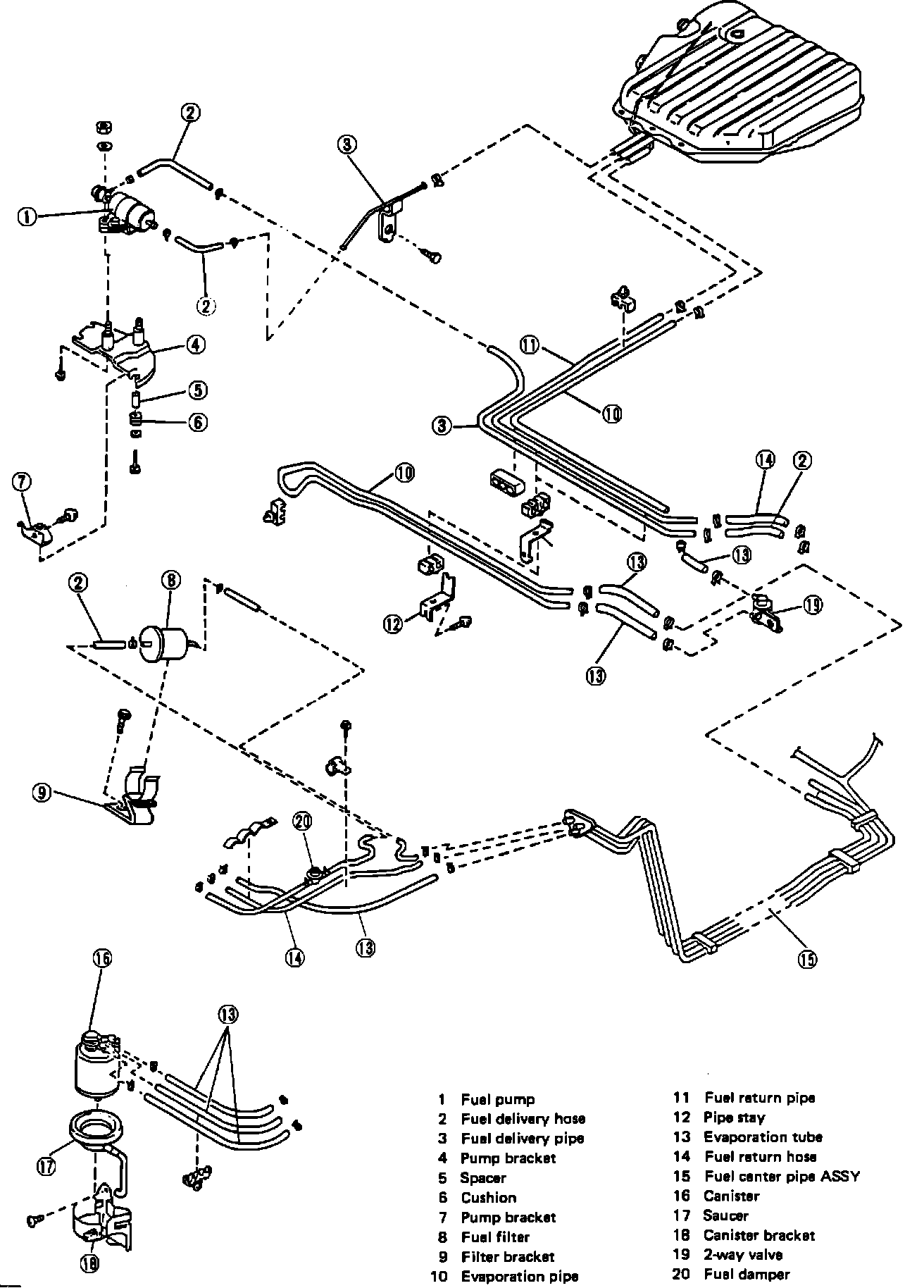

Fuel Lines:





On L.H. side of engine compartment.
