Justy 1987 and 1988

INSTALLATION INSTRUCTIONS FOR SUBARU REAR SEAT SHOULDER BELTS


Model applications: Justy 1987 and 1988 (P/N 64174GA730)

CAUTION: Improper installation could adversely affect the performance of the seat belt system. Subaru of America strongly recommends these rear seat shoulder belts be installed by an Authorized Subaru Dealer.

1. Remove rear seat lower cushion to provide access to the lap belt retractors mounting bolts.
2. Remove the 5/8 inch bolts which secure the original equipment lap belt retractors.

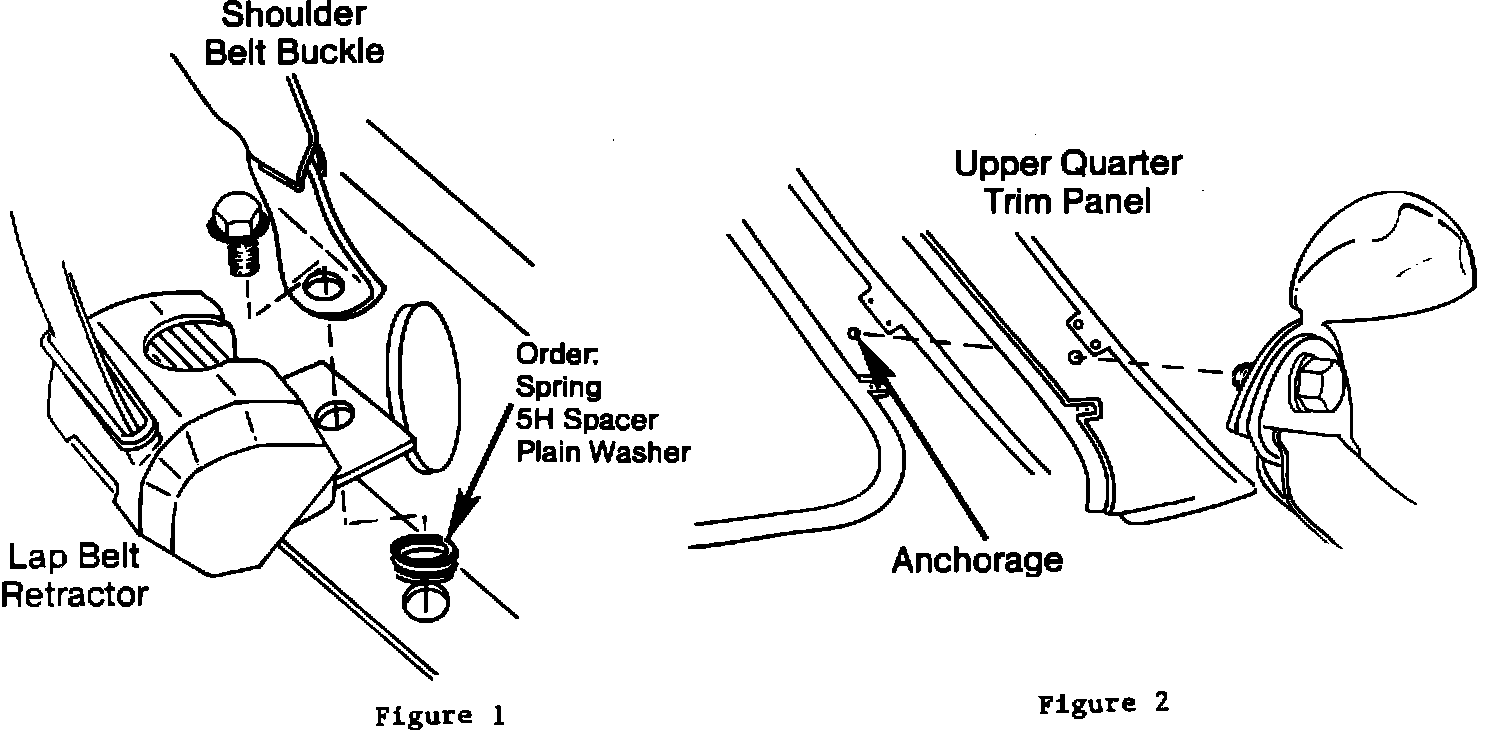

3. Install each of the shoulder belt buckles using the originally equipped 5/8 inch bolt along with the respective lap belt retractors. Place the originally equipped plain washer, spacer and spring washer in order between the body panel and lap belt retractor as shown in Figure 1.
4. Reinstall the rear seat cushion. Fold forward the rear seat back to gain access through the gap between the seat back and a body panel. Tighten each bolt to specified torque, 18-25 foot pounds. See Figure 1.
5. Remove both rear quarter trim panels and transfer the position of the anchorage location to the trim panel. See Figure 2.
6. Make 15/16" diameter holes through the trim panels making certain the holes line up with the anchorage location.
7. Reinstall the trim panels and install the shoulder belt tongues utilizing the attached 5/8 inch bolts and attached washers. Tighten each bolt to specified torque, 18-25 foot pounds. See Figure 2.
8. Place the Use, Safety Tips, and Maintenance instructions in the Owner's Manual for future reference.

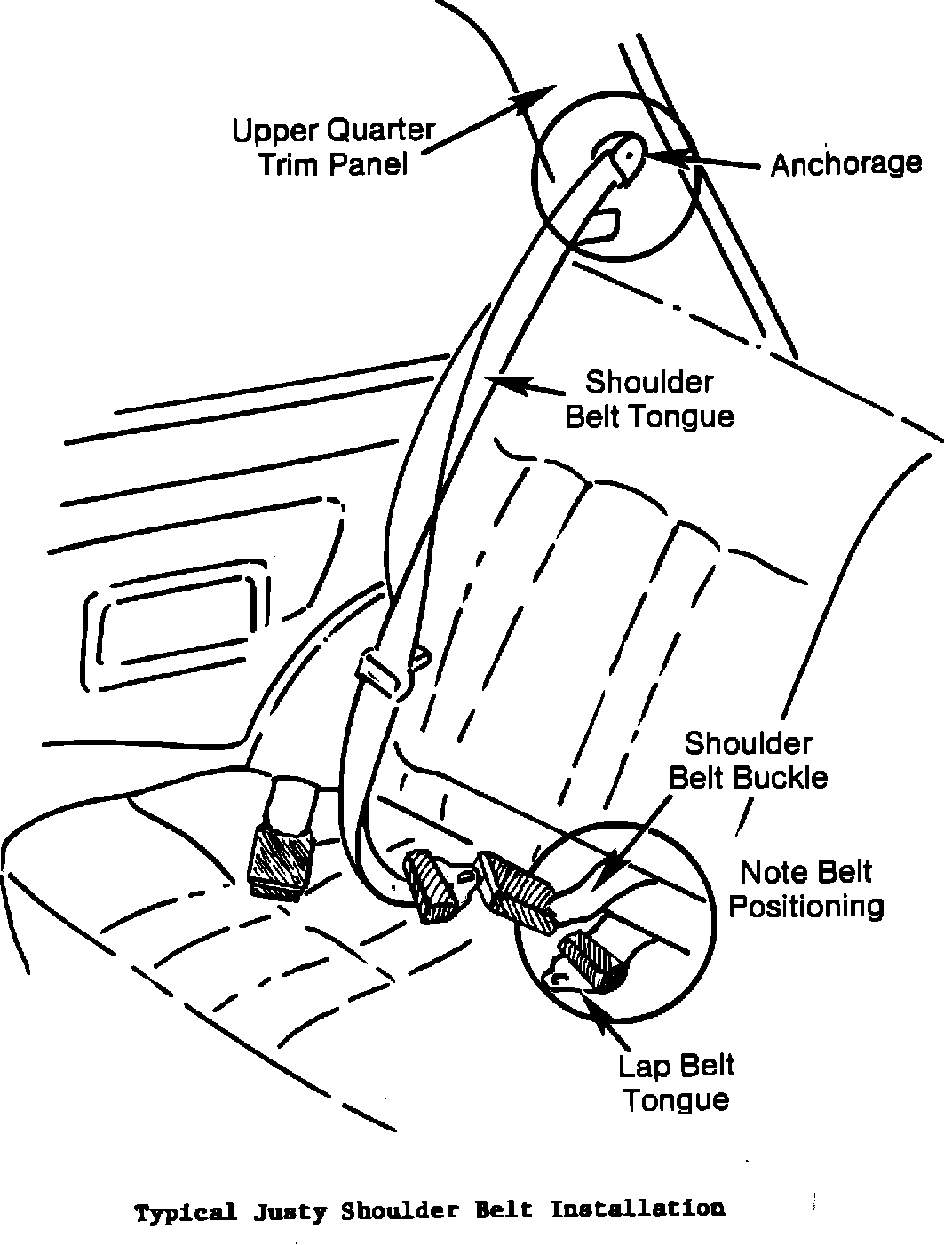

Typical Justy Shoulder Belt Installation:

A completed typical installation is shown on the reverse side of this page.
NOTE
Shoulder Belt Buckle should be drawn between seat cushion and backrest; while Lap Belt Tongue in position through the slit of seat cushion.
